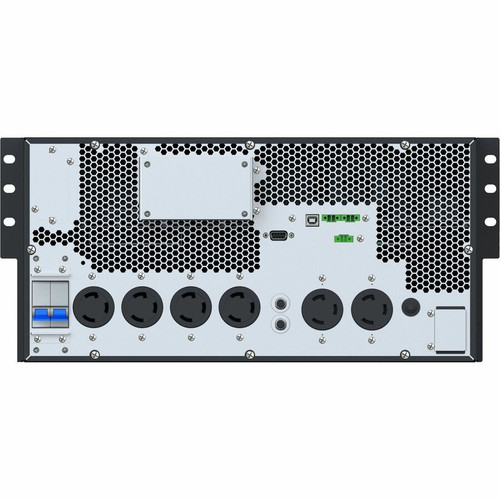

Minuteman ED8KRT-6KTF2 Endeavor 8000VA/6. 93kW Double Conversion Online UPS - 5U Rack/Tower - 3 Min Full Load Runtime - Hardwired
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS maintains continuous power conditioning by converting incoming AC to DC and then back to clean AC output. The true sine wave technology ensures compatibility with sensitive electronic equipment, while the wide input voltage range (0-300V AC) handles unstable grid conditions without transferring to battery.
Advanced monitoring capabilities include an LCD display for real-time status, RS-232 for network management, and USB connectivity for software integration. The unit features cold start functionality for emergency power-up without utility input, plus an EPO port for emergency shutdown procedures.
This section brings together practical product details such as Plug/Connector Type, Phase, Efficiency Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Endeavor ED8KRT-6KTF2 combines industrial-grade power protection with enterprise management features. The hot-swappable, replaceable battery design minimizes downtime during maintenance, while the 3140 joule surge energy rating provides robust transient voltage protection.
True Double Conversion
Complete isolation from utility power anomalies ensures clean, stable output regardless of input quality.
- Eliminates transfer time to battery
- Continuous voltage regulation
- Frequency synchronization
Environmental Resilience
Designed for demanding operating conditions with wide temperature and humidity tolerances.
- Operates up to 104°F (40°C)
- 0-95% operating humidity
- 15,000 ft maximum operating elevation
Management Integration
Multiple interface options enable seamless integration with existing monitoring and control systems.
- RS-232 for legacy systems
- USB for modern software
- LCD for local status
Deployment / Use Cases
This 8000VA UPS is engineered for medium to large-scale IT infrastructure protection. The 3-minute full load runtime provides sufficient time for graceful shutdown of critical systems during extended outages, while the 11-minute half load runtime supports extended operation for prioritized equipment.
Ideal deployment scenarios include data center server racks, network operation centers, telecommunications switching facilities, and industrial control systems. The unit's application versatility spans IT, telecommunications, security systems, business infrastructure, servers, networks, industrial equipment, enterprise installations, corporate environments, and VoIP systems.
This section brings together practical product details such as Plug/Connector Type, Phase, Efficiency Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Protection
Safeguard rack-mounted servers, storage arrays, and networking gear with clean, uninterrupted power during grid disturbances.
Critical Infrastructure
Protect telecommunications equipment, security systems, and industrial controls where power quality directly impacts operational continuity.
Physical Profile
The 5U rack/tower design measures 15.36" (390.14 mm) in height, 17.24" (437.90 mm) in width, and 28.74" (730 mm) in depth. With an approximate weight of 347.13 lb (157,455.52 g), the unit requires proper rack reinforcement or stable floor placement. The dual form factor accommodates both standard 19-inch rack mounting and standalone tower deployment, providing installation flexibility for various facility layouts.
- Width
- 17.24" (437.90 mm)
- Height
- 15.36" (390.14 mm)
- Weight
- 347.13 lb (157455.52 g)
- Length
- 28.74" (730 mm)
What's in the Box
The package includes the complete UPS system with all necessary components for immediate deployment.
Package contents include Endeavor ED8KRT-6KTF2 8000VA Rack/Tower UPS Comm. Cables, Endeavor ED8KRT-6KTF2 8000VA Rack/Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 8000VA/6.93kW double conversion online UPS for critical infrastructure protection
- 5U rack/tower form factor with hardwired connection for secure installation
- 3-minute full load runtime and 11-minute half load runtime for graceful shutdowns
- True sine wave output ensures compatibility with sensitive electronic equipment
- Hot-swappable, replaceable battery design minimizes maintenance downtime
- LCD display with RS-232 and USB interfaces for comprehensive monitoring
- 93% AC mode efficiency reduces operational energy costs
- Wide input voltage range (0-300V AC) handles unstable grid conditions
- ENERGY STAR 2.0 certified for energy-efficient operation
- 3-year warranty covering electronics and batteries
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED8KRT-6KTF2 |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED8KRT-6KTF2 |
| Product Name | Endeavor ED8KRT-6KTF2 8000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Efficiency Detail | 93% (AC Mode) |
| Application/Usage | IT,Telecommunication,Security,Business,Infrastructure,Server,Network,Industrial,Enterprise Installation,Corporate,VoIP |
| Surge Suppression | Yes |
| Features | Cold Start Function |
| Power Description | |
| Load Capacity (VA) | 8 kVA |
| Load Capacity (Watt) | 6.93 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 0 V AC - 300 V AC,180 V AC - 280 V AC |
| Input Current | 51 A |
| Output Voltage | 208 V AC,220 V AC,230 V AC,240 V AC,120 V AC,110 V AC,115 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 3140 J |
| Circuit Breaker | Yes |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232 |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 15000 ft (4572000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 131°F (55°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 15.36" (390.14 mm) |
| Width | 17.24" (437.90 mm) |
| Length | 28.74" (730 mm) |
| Rack Height | 5U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 347.13 lb (157455.52 g) |
| Miscellaneous | |
| Package Contents | Endeavor ED8KRT-6KTF2 8000VA Rack/Tower UPS Comm. Cables |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years (Electronics and Batteries) |
User Manual
FAQ
What is the power capacity of this Minuteman UPS?
The Endeavor ED8KRT-6KTF2 provides 8000VA (8 kVA) apparent power and 6.93kW real power capacity. This double conversion online UPS can support medium to large-scale IT infrastructure including servers, network equipment, telecommunications systems, and industrial controls with clean, uninterrupted power during utility disturbances.
How long will this UPS run on battery during a power outage?
At full 6.93kW load, the UPS provides 3 minutes of runtime for graceful system shutdown. At half load (approximately 3.465kW), runtime extends to 11 minutes. These runtimes allow sufficient time for automated shutdown procedures or continued operation of prioritized equipment during short to moderate outages.
Can this UPS be installed in a standard server rack?
Yes, the Endeavor ED8KRT-6KTF2 features a dual rack/tower form factor. The 5U height (15.36 inches) fits standard 19-inch server racks, while the standalone tower configuration provides flexibility for facilities without rack infrastructure. The unit requires proper rack reinforcement due to its 347-pound weight.
What type of power output does this UPS provide?
This double conversion online UPS delivers true sine wave output, which is essential for sensitive electronic equipment like servers, networking gear, and telecommunications systems. The output maintains clean power quality regardless of input conditions, with voltage options including 208V, 220V, 230V, 240V, 120V, 110V, and 115V AC.
How is this UPS connected to power and equipment?
The ED8KRT-6KTF2 features a hardwired connection for secure, permanent installation. This eliminates connector reliability concerns in critical environments. The unit includes multiple monitoring interfaces: an LCD display for local status, RS-232 for network management integration, and USB for software connectivity and configuration.
What battery maintenance features does this UPS include?
The hot-swappable, replaceable battery design allows maintenance without system downtime. The cold start function enables emergency power-up without utility input. The UPS also includes surge suppression (3140 joule rating) and circuit breaker protection for comprehensive power conditioning and equipment safety.
What power capacity is listed for this UPS?
The listed power specification is 8 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
