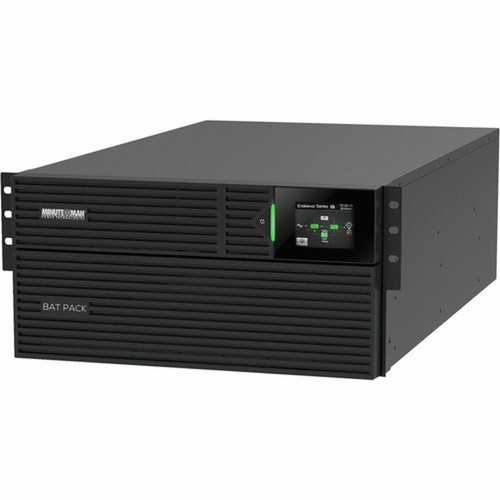

Minuteman ED8KRT Endeavor 8000VA/7. 2kW Double-Conversion Online UPS - 4U Rack/Tower - 120/230V Input - 208-240V Output - 3-Minute Full-Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS utilizes true double-conversion technology and DSP design to isolate connected equipment from all common power problems, including surges, sags, and frequency variations. The high power factor of 0.9 maximizes usable wattage from the VA rating, delivering 7.2kW of protected power capacity.
The ED8KRT accepts a wide input voltage range from 0V AC to 300V AC, with a nominal input of 120V AC or 230V AC. Output is configurable for 208V AC, 220V AC, 230V AC, or 240V AC, with frequency synchronization at 50Hz or 60Hz. The unit includes an automatic internal bypass and Independent Battery Bypass (IBB) for enhanced reliability.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Endeavor ED8KRT combines industrial-grade power protection with flexible deployment options for demanding environments. Its double-conversion topology ensures zero transfer time to battery, while smart fan control and cold start capability support operation in varied conditions.
High-Density Power Protection
With 8kVA/7.2kW capacity, this UPS supports multiple servers, network switches, and storage arrays in a single 4U footprint, optimizing rack space in data centers and server rooms.
- 8000VA/7200W output
- 0.9 power factor
- True sine wave
Advanced Management & Monitoring
The color LCD touchscreen offers intuitive control, while RS-232 and USB ports enable integration with network management systems for remote monitoring and configuration.
- Multi-function LCD
- RS-232 serial
- USB connectivity
Maintenance & Serviceability
Hot-swappable batteries allow replacement without shutting down connected equipment, and the 3-year warranty covers both electronics and batteries for comprehensive protection.
- Hot-swappable design
- Replaceable battery
- 3-year warranty
Deployment / Use Cases
The ED8KRT is designed for environments where power quality and uptime are critical. Its hardwired receptacle configuration includes 4 NEMA L6-30R and 2 NEMA L6-20R outlets, plus a terminal block for direct wiring, supporting a mix of high-power devices.
This UPS is ideal for protecting server racks, network operations centers, industrial control systems, and VoIP infrastructure. The 3-minute runtime at full load and 11-minute runtime at half load provide sufficient time for graceful shutdowns or generator start-up during extended outages.
Data Center & Server Room
Deploy in 4U racks to protect blade servers, storage arrays, and core networking equipment, with output voltages configurable for 208V or 240V server power supplies.
Industrial & Telecommunication
Use in manufacturing, security, and telecom sites where stable power is essential for control systems, switches, and VoIP equipment, with operation supported up to 15,000 ft elevation.
Physical Profile
The ED8KRT measures 8.54" (216.92 mm) in height, 17.24" (437.90 mm) in width, and 28.74" (730 mm) in depth, occupying 4U of rack space. Weighing 122.32 lb (55483.42 g), it is built with a robust steel chassis suitable for rack mounting or tower placement. The unit operates in temperatures from 32°F (0°C) to 104°F (40°C) and humidity from 0% to 95%, ensuring reliability in standard data center and industrial environments.
- Width
- 17.24" (437.90 mm)
- Height
- 8.54" (216.92 mm)
- Weight
- 122.32 lb (55483.42 g)
- Length
- 28.74" (730 mm)
Highlights
- 8000VA/7.2kW double-conversion online UPS
- 4U rack/tower form factor with 122.32 lb weight
- 120V AC or 230V AC input, 208-240V AC output
- 3-minute full-load runtime, 11-minute half-load runtime
- Hot-swappable, replaceable batteries
- Multi-function color LCD touchscreen display
- RS-232 and USB management ports
- 4 NEMA L6-30R and 2 NEMA L6-20R outlets plus terminal block
- 93% efficiency in AC mode with true sine wave output
- 3-year warranty covering electronics and batteries
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED8KRT |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED8KRT |
| Product Name | Endeavor ED8KRT 8000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-30R,NEMA L6-20R,Terminal Block |
| Receptacle Detail | 4 x NEMA L6-30R,2 x NEMA L6-20R,1 x Terminal Block |
| Phase | Single Phase |
| Efficiency Detail | 93% (AC Mode) |
| Application/Usage | IT,Telecommunication,Security,Business,Infrastructure,Server,Network,Industrial,Enterprise Installation,Corporate,VoIP |
| Features | Cold Start Function |
| Power Description | |
| Load Capacity (VA) | 8 kVA |
| Load Capacity (Watt) | 7.20 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 0 V AC - 300 V AC,180 V AC - 280 V AC |
| Input Current | 51 A |
| Output Voltage | 208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 3140 J |
| Circuit Breaker | Yes |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232 |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 15000 ft (4572000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 131°F (55°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 8.54" (216.92 mm) |
| Width | 17.24" (437.90 mm) |
| Length | 28.74" (730 mm) |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 122.32 lb (55483.42 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years (Electronics and Batteries) |
User Manual
FAQ
What is the power capacity of the Minuteman ED8KRT UPS?
The Minuteman ED8KRT provides 8000VA (8 kVA) and 7200W (7.2 kW) of protected power capacity with a high power factor of 0.9, making it suitable for high-density server racks, network equipment, and industrial applications requiring substantial backup power.
What runtime can I expect from this UPS at full and half load?
At full load, the ED8KRT delivers 3 minutes of runtime, while at half load it provides 11 minutes. These runtimes support graceful shutdowns or generator start-up during power outages, with exact times depending on connected load and battery condition.
What input and output voltages does this UPS support?
The UPS accepts input voltages of 120V AC or 230V AC, with a wide range from 0V AC to 300V AC. Output voltages are configurable for 208V AC, 220V AC, 230V AC, or 240V AC, accommodating various server and equipment power requirements.
Is this UPS rack-mountable, and what are its dimensions?
Yes, the ED8KRT is designed for 4U rack mounting or tower deployment. Its dimensions are 8.54" (216.92 mm) height, 17.24" (437.90 mm) width, and 28.74" (730 mm) depth, with a weight of 122.32 lb (55483.42 g) for stable installation in standard server racks.
What management and connectivity options are available?
The UPS features a multi-function color LCD touchscreen for local monitoring, along with RS-232 and USB ports for network management integration. It also includes an EPO (Emergency Power Off) port for safety shutdowns and supports cold start functionality.
What is the warranty and are batteries replaceable?
The Minuteman ED8KRT comes with a 3-year limited warranty covering both electronics and batteries. Batteries are hot-swappable and replaceable, allowing maintenance without powering down connected equipment, which minimizes downtime in critical environments.
What power capacity is listed for this UPS?
The listed power specification is 8 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
