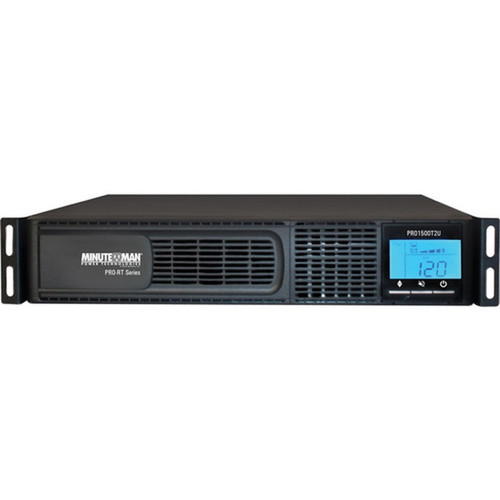

Minuteman PRO1500RT2UNC PRO-RT 1500VA/1050W Line-Interactive UPS - 2U Rack/Tower/Wall Mountable - 8 Outlets - 4 Min Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates with a 120 V AC input and output, accepting voltages from 103 V AC to 136 V AC to handle typical North American power variations. The 10 ms transfer time ensures seamless switchover to battery during interruptions, and simulated sine wave output maintains compatibility with most server and networking hardware.
Network management is enabled through an RJ-45 port for monitoring and control. The unit meets Energy Star efficiency standards and RoHS 2 environmental compliance, reflecting a commitment to reduced energy consumption and hazardous substance restriction.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PRO1500RT2UNC balances high power capacity with installation versatility, making it suitable for rack-mounted server cabinets, standalone tower setups, or wall-mounted network closets. Its 1.05 kW watt rating supports substantial loads, while the 2U rack height optimizes space in standard server racks.
Flexible Mounting Options
Deploy as a tower, 2U rack unit, or wall-mounted device to match your infrastructure layout without requiring dedicated floor space.
- 2U rack height fits standard server cabinets
- Wall-mount capability for tight spaces
- Tower stand for standalone use
Extended Outlet Coverage
Eight NEMA 5-15R outlets provide ample connections for servers, switches, routers, and other network equipment, reducing the need for additional power strips.
- Standard North American outlets
- Supports multiple devices simultaneously
- Clean power distribution
Deployment / Use Cases
This UPS is designed for environments where power stability is critical to operations. It effectively protects network equipment, servers, telephone systems, workstations, VoIP phone systems, and video equipment from power disturbances.
In small to medium server rooms, the 2U rack-mount form factor integrates neatly into existing cabinets. For branch offices or network closets, wall mounting conserves floor space while delivering backup power to switches and routers. The four-minute runtime at full load allows for graceful shutdowns or short-term ride-through during brief outages.
Server Room Backup
Provide battery backup for rack-mounted servers and storage, ensuring data integrity and preventing hardware damage during power events.
- 2U rack compatibility
- Hot-swappable battery for maintenance
- Network management for monitoring
Network Infrastructure Protection
Safeguard switches, routers, and VoIP systems from sags and surges, maintaining network availability and communication continuity.
- Eight outlets for multiple devices
- Simulated sine wave for compatibility
- RJ-45 for network integration
Physical Profile
The UPS measures 3.40" in height, 18.90" in width, and 20.10" in depth, with a weight of approximately 48.70 lb. The compact 2U rack height allows efficient use of vertical space in server racks, while the sturdy construction supports tower or wall mounting. The design includes integrated handles for easier installation and maintenance access.
- Width
- 18.90" (480.06 mm)
- Depth
- 20.10" (510.54 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 48.70 lb (22089.95 g)
What's in the Box
The package includes the PRO-RT PRO1500RT2U 1500VA Tower/Rack/Wall Mountable UPS and a network card for enhanced management capabilities.
Package contents include PRO-RT PRO1500RT2U 1500VA Tower/Rack/Wall Mountable UPS Network Card, PRO-RT PRO1500RT2U 1500VA Tower/Rack/Wall Mountable UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 1500VA/1050W line-interactive UPS for network and server equipment
- 2U rack, tower, or wall-mount installation flexibility
- Eight NEMA 5-15R outlets for multiple device connections
- Up to 4-minute runtime at full load for graceful shutdowns
- Hot-swappable battery design for maintenance without downtime
- 120 V AC input and output with 103-136 V AC input range
- RJ-45 network port for monitoring and management
- Energy Star compliant and RoHS 2 environmental standards
- 3-year limited warranty for long-term reliability
- Simulated sine wave output compatible with most IT hardware
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | PRO1500RT2UNC |
| Brand Name | Minuteman |
| Product Series | PRO-RT |
| Product Model | PRO1500RT2U |
| Product Name | PRO-RT PRO1500RT2U 1500VA Tower/Rack/Wall Mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Transfer Time | 10 ms |
| Application/Usage | Network Equipment,Server,Telephone System,Workstation,VoIP Phone System,Video Equipment |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.05 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 103 V AC - 136 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Simulated Sine Wave |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 20.10" (510.54 mm) |
| Rack Height | 2U |
| Form Factor | Tower/Rack/Wall Mountable |
| Weight (Approximate) | 48.70 lb (22089.95 g) |
| Miscellaneous | |
| Package Contents | PRO-RT PRO1500RT2U 1500VA Tower/Rack/Wall Mountable UPS Network Card |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Minuteman PRO1500RT2UNC provides 1.50 kVA (1500 VA) and 1.05 kW (1050 watts) of load capacity. This rating supports substantial IT equipment loads, including servers, network switches, and workstations, ensuring backup power during outages or disturbances.
How long does the battery last at full load?
At full load, the UPS delivers up to 4 minutes of runtime. This duration allows for graceful shutdowns of connected equipment or short-term ride-through during brief power interruptions, helping to preserve data and prevent hardware damage.
Can this UPS be mounted in a server rack?
Yes, the unit is designed for 2U rack mounting, fitting standard server cabinets. It also supports tower and wall-mount installations, offering flexibility for different environments such as data centers, network closets, or office spaces.
How many outlets does it have, and what type?
The UPS includes eight NEMA 5-15R outlets, which are standard North American receptacles. This allows you to connect multiple devices like servers, routers, and switches directly without needing additional power strips.
What is the input voltage range?
The input voltage range is 103 V AC to 136 V AC, with a nominal input of 120 V AC. This wide range helps the UPS handle typical power sags and surges in North American electrical systems, maintaining stable operation.
Does it include network management capabilities?
Yes, the UPS features an RJ-45 network port and comes with a network card. This enables remote monitoring, management, and alerts via network connections, allowing IT staff to oversee power status and battery health from a central location.
What power capacity is listed for this UPS?
The listed power specification is 1.50 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
