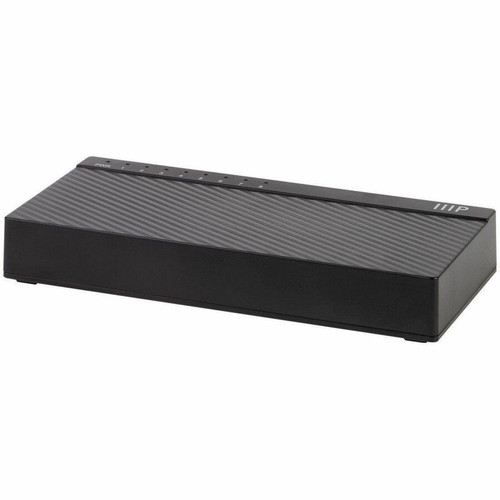

Monoprice 41713 8-Port Gigabit Ethernet Unmanaged Switch - 10/100/1000Base-T - Layer 2 - Fanless - Compact Desktop/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features eight auto-negotiating Gigabit Ethernet ports that automatically detect and configure the optimal connection speed for each connected device. The 10/100/1000Base-T network technology ensures backward compatibility with older Ethernet standards while providing Gigabit performance where supported. The maximum data transfer rate of 128 MB/s enables efficient file sharing and network operations.
Layer 2 switching capability provides basic network segmentation and traffic management without the complexity of managed switches. The switch supports twisted pair cabling up to 100 meters, making it suitable for various deployment scenarios. Built-in flow control and auto-negotiation features optimize data transmission and prevent packet loss during high-traffic periods.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Monoprice 41713 switch combines essential networking features with straightforward deployment, making it an ideal choice for users who need reliable connectivity without complex configuration. The unmanaged operation eliminates the need for network administration expertise, while the comprehensive feature set ensures stable performance.
Silent Operation
The fanless design ensures completely silent performance, making this switch suitable for quiet environments like home offices, libraries, or media rooms where noise reduction is important.
- Zero moving parts
- No fan noise
- Reduced maintenance
Flexible Deployment
With multiple mounting options and compact dimensions, this switch adapts to various installation scenarios without consuming excessive space.
- Desktop placement
- Wall mounting
- Compact footprint
Universal Power Compatibility
The switch accepts both AC and DC power inputs with wide voltage range support, ensuring compatibility with different power systems and regions.
- 5V DC input
- 120V/230V AC input
- Dual power source support
Deployment / Use Cases
This 8-port Gigabit Ethernet switch serves as an effective network expansion solution for environments where additional wired connections are needed. The unmanaged design makes it particularly suitable for users who prioritize simplicity and quick deployment over advanced network management features.
In home office settings, the switch can connect computers, printers, network-attached storage devices, and gaming consoles to create a robust local network. Small businesses can use it to expand network capacity in conference rooms, reception areas, or workgroup spaces. The compact size and wall-mount capability make it ideal for installations where space is limited, such as behind desks, in network cabinets, or on wall surfaces.
Home Network Expansion
Add multiple wired connections for streaming devices, gaming consoles, smart home hubs, and computers while maintaining Gigabit speeds throughout your home network.
Small Office Connectivity
Provide reliable wired connections for workstations, printers, and shared devices in office environments where wireless coverage may be inconsistent or insufficient.
Physical Profile
Measuring just 5.30" wide × 2.40" long × 0.70" high (134.62 mm × 60.96 mm × 17.78 mm), this switch features an exceptionally compact design that minimizes space requirements. The lightweight construction at 5.60 ounces (158.76 grams) allows for easy placement and mounting. The housing supports both desktop placement and wall mounting, with the compact form factor making it suitable for discreet installation in various environments.
- Width
- 5.30" (134.62 mm)
- Height
- 0.70" (17.78 mm)
- Weight
- 5.60 oz (158.76 g)
- Length
- 2.40" (60.96 mm)
Highlights
- 8 Gigabit Ethernet ports for expanding wired networks
- 10/100/1000Base-T auto-negotiating ports with backward compatibility
- Layer 2 switching support for basic network segmentation
- Fanless design ensures silent operation in any environment
- Plug-and-play installation with no configuration required
- Compact form factor suitable for desktop or wall mounting
- Supports twisted pair cabling up to 100 meters
- Dual power input (AC/DC) with wide voltage compatibility
- IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards compliant
- One-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Monoprice, Inc |
| Manufacturer Part Number | 41713 |
| Brand Name | Monoprice |
| Product Name | 8-Port 10/100/1000Mbps Gigabit Ethernet Unmanaged Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | LED Indicator,Plug and Play,Fanless,Flow Control,Auto-negotiation |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 128 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 5 V DC,120 V AC,230 V AC |
| Power Source | AC,DC |
| Physical Characteristics | |
| Form Factor | Compact,Wall Mountable,Desktop |
| Height | 0.70" (17.78 mm) |
| Width | 5.30" (134.62 mm) |
| Length | 2.40" (60.96 mm) |
| Weight (Approximate) | 5.60 oz (158.76 g) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
How many devices can I connect to this Monoprice switch?
The Monoprice 41713 provides eight Gigabit Ethernet ports, allowing you to connect up to eight wired devices simultaneously. This makes it suitable for expanding home networks, small office setups, or connecting multiple devices in a workgroup environment without requiring additional networking equipment.
Does this switch support Power over Ethernet (PoE)?
No, this is a standard Gigabit Ethernet switch that does not provide Power over Ethernet capabilities. The ports deliver data connectivity only and do not supply power to connected devices. If you require PoE functionality, you would need to consider a different switch model specifically designed with PoE support.
What is the difference between Layer 2 and unmanaged operation?
Layer 2 refers to the data link layer in the OSI networking model, which this switch supports for basic frame forwarding and network segmentation. Unmanaged means the switch operates without configuration interfaces or management features—it works automatically out of the box. This combination provides reliable switching functionality without the complexity of managed network equipment.
Can I mount this switch on a wall?
Yes, the Monoprice 41713 switch is designed for both desktop placement and wall mounting. The compact form factor and lightweight construction make it easy to install on vertical surfaces. The switch includes mounting provisions that allow secure attachment to walls, under desks, or in network cabinets for space-efficient deployment.
What types of cables work with this Ethernet switch?
This switch supports standard twisted pair Ethernet cables (CAT5e, CAT6, or higher) with RJ-45 connectors. It is compatible with 10/100/1000Base-T network technology, which works with common Ethernet cabling up to 100 meters in length. The auto-negotiation feature ensures optimal performance with any supported cable type.
Is this switch suitable for gaming or media streaming applications?
Yes, the Gigabit Ethernet ports provide sufficient bandwidth for gaming consoles, media streaming devices, and network-attached storage. The 128 MB/s maximum data transfer rate supports high-definition video streaming and online gaming with minimal latency. The fanless design also ensures silent operation during media playback or gaming sessions.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Twisted Pair, giving buyers a clearer picture of expected coverage after purchase.
