Monoprice 44568 Blackbird Pro Video Switchbox - 8 x 8 HDMI 4K 3840 x 2160 - HDBaseT 3. 0 Extender - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

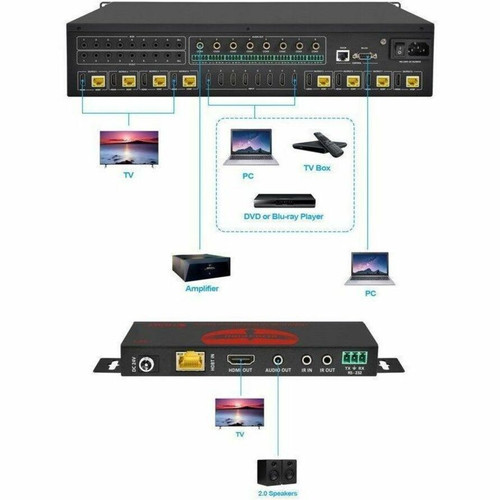

This video switchbox employs HDBaseT 3.0 technology to extend uncompressed 4K video, audio, control signals, and Ethernet over a single CAT cable connection. The system includes eight HDBaseT 3.0 transmitter extenders for source connections and nine HDBaseT 3.0 receiver extenders for display endpoints, providing comprehensive coverage for complex installations.
The unit features ten RJ-45 ports for HDBaseT connectivity alongside eight HDMI inputs and eight HDMI outputs, all supporting 4K and 2K graphics modes. TCP/IP protocol support enables network-based control and management, while the included IR blaster and receiver cables facilitate remote operation of connected devices.
This section brings together practical product details such as Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Blackbird Pro Video Switchbox eliminates cable-swapping hassles by providing centralized control of multiple video sources across numerous displays. Its HDBaseT 3.0 implementation ensures reliable long-distance transmission without signal degradation, while the comprehensive port configuration supports complex AV ecosystems.
Simplified Cable Management
Consolidate connections with HDBaseT technology that carries video, audio, control, and Ethernet over single CAT cables, reducing cable clutter in rack installations.
- Single-cable solution for multiple signal types
- Reduces installation complexity
- Minimizes points of failure
High-Density Connectivity
With eight HDMI inputs and outputs plus ten RJ-45 ports, this switchbox accommodates extensive AV systems without requiring additional switching hardware.
- Supports up to 8 simultaneous sources
- Drives 8 displays independently
- Scalable for large installations
Deployment / Use Cases
This video switchbox excels in environments where multiple video sources need distribution to numerous displays with consistent high-quality output. The 492-foot extension capability makes it suitable for large venues where source equipment must be located far from display endpoints.
Typical applications include corporate boardrooms with multiple presentation sources, control rooms monitoring numerous video feeds, digital signage networks requiring centralized content management, entertainment venues distributing content to various screens, and educational facilities sharing instructional media across classrooms.
Corporate AV Systems
Deploy in conference rooms and executive suites to switch between laptops, media players, and video conferencing systems across wall displays and projection systems.
Digital Signage Control
Centralize management of content played across multiple displays in retail stores, airports, or hospitality venues from a single equipment rack.

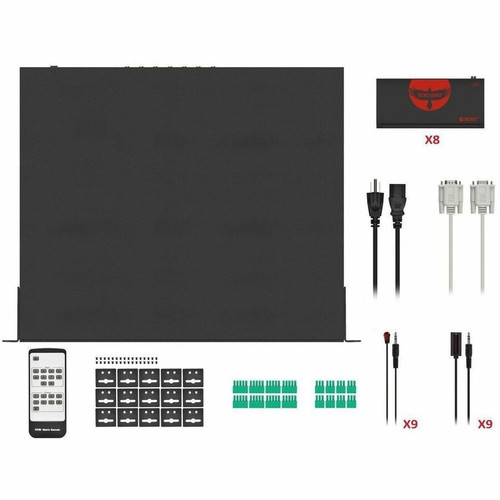

What's in the Box
The package includes all necessary components for deployment:
Highlights
- 8 HDMI inputs and 8 HDMI outputs for comprehensive video switching
- 4K Ultra HD support at 3840x2160 resolution with 2160p scan format
- HDBaseT 3.0 technology extends signals up to 492 feet over CAT cable
- Rack-mountable form factor for professional AV installations
- TCP/IP protocol enables network-based control and management
- Includes IR blaster and receiver cables for remote device control
- Supports multiple device types: displays, TVs, notebooks, DVD/Blu-ray players, speakers
- 3-year limited warranty for reliable long-term operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Monoprice, Inc |
| Manufacturer Part Number | 44568 |
| Brand Name | Monoprice |
| Product Line | Blackbird |
| Product Series | Pro |
| Product Name | Blackbird Pro Video Switchbox |
| Packaged Quantity | 1 |
| Product Type | Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 8 |
| Device Supported | Display,TV,Notebook,DVD Player,Blu-ray Disc Player,Speaker |
| Number of Displays Supported | 8 |
| Data Link Protocols | TCP/IP |
| Video | |
| Graphics Modes | 4K,2K |
| Maximum Video Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 10 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 8 |
| Number of HDMI Outputs | 8 |
| Media & Performance | |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Package Contents | HDBaseT 3.0 Extender (Transmitter) 8× HDBaseT 3.0 Extender (Receiver) 9× IR Blaster Cable (1.5 meters) 9× IR Receiver Cable (1.5 meters) 2× 3pin-3.81mm Phoenix Connectors (Male) 4× Mounting Ears 8× Machine Screws (KM3x4) 1× 24V/1A Locking Power Adapter 1× User Manual |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What video resolutions does this switchbox support?
The Monoprice Blackbird Pro Video Switchbox supports 4K Ultra HD at 3840x2160 resolution with 2160p scan format, along with 2K graphics modes. This ensures compatibility with high-resolution sources like 4K media players, gaming consoles, and computers while maintaining pristine video quality across all connected displays.
How many devices can I connect to this video switchbox?
This switchbox supports eight input devices and eight output displays simultaneously. Input devices can include displays, TVs, notebooks, DVD players, Blu-ray disc players, and speakers. The eight HDMI outputs allow you to distribute video to multiple displays from any connected source without cable swapping.
What is the maximum distance for video transmission?
Using HDBaseT 3.0 extension technology, this switchbox supports video transmission up to 492.13 feet (150,000 mm) over standard CAT cables. This long-distance capability makes it ideal for installations where source equipment is located far from display endpoints, such as in large venues, auditoriums, or distributed campus environments.
Is this switchbox rack-mountable?
Yes, the Blackbird Pro Video Switchbox features a rack-mountable form factor designed for professional AV installations. The package includes four mounting ears and eight machine screws (KM3x4) for secure installation in standard 19-inch equipment racks, making it suitable for control rooms, data centers, and integrated AV systems.
What control options are available for this switchbox?
The switchbox supports TCP/IP protocol for network-based control and management, allowing integration with control systems and software. Additionally, it includes nine IR blaster cables and nine IR receiver cables (1.5 meters each) for infrared remote control of connected devices, providing flexible operation options for different installation scenarios.
What power supply does this switchbox use?
The switchbox operates with an included 24V/1A locking power adapter that ensures stable performance in always-on environments. The locking connector prevents accidental disconnection, which is particularly important in professional installations where reliability is critical for continuous operation.
