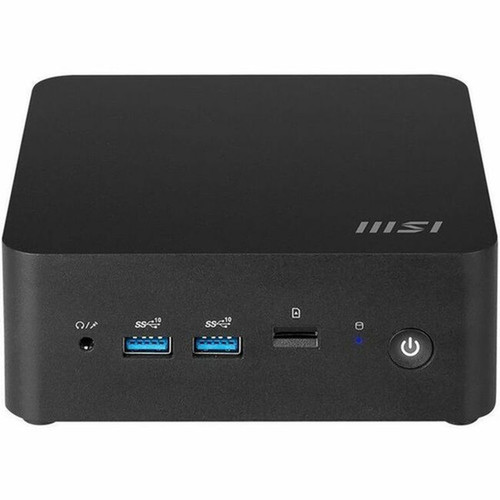

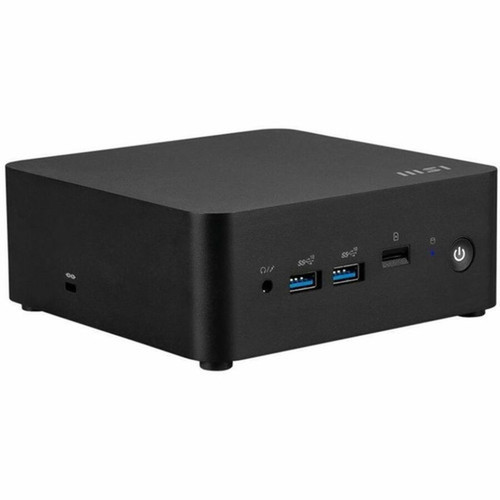

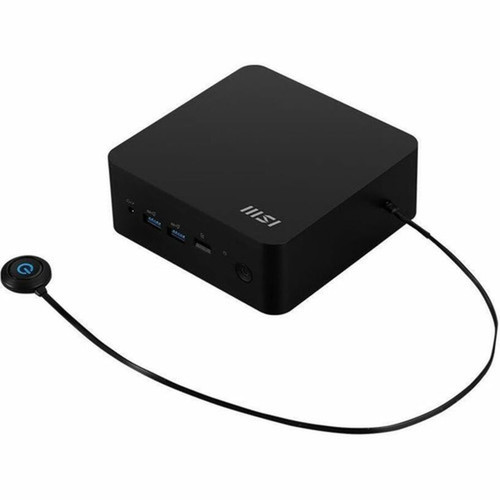

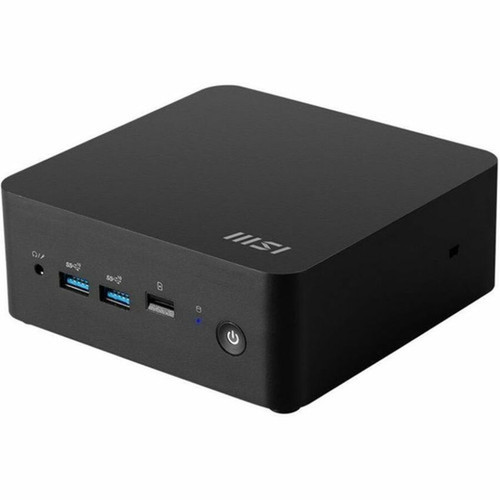

MSI CUBINUC1M009B Cubi NUC 1M-009BUS Mini PC Barebone - Intel Core i7150U Deca-core - 96GB DDR5 - WiFi 6 - Thunderbolt 4 - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system centers on Intel's Core i7 150U processor, a deca-core CPU with a 4 GHz base clock and turbo boost up to 5.40 GHz. The platform supports modern DDR5 memory across two slots, accommodating up to 96 GB of DDR5-5200 RAM for smooth application performance and future upgrade headroom.
Integrated Intel Iris Xe Graphics provides capable visual output for office applications, media playback, and multi-display setups without requiring a discrete GPU. The system includes comprehensive connectivity with dual Thunderbolt 4 ports for high-speed data transfer and display connectivity, plus multiple USB 3.2 Gen 2 ports for peripherals.
Relevant factors for this section include Number of Processors Installed, Processor Manufacturer, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Cubi NUC 1M-009BUS combines enterprise-grade components in a consumer-friendly mini PC format, offering several distinct advantages for both business and personal computing needs.
Compact Performance
Despite its small 1.90" height and 5.30" square footprint, this system houses a full Intel Core i7 processor with 10 cores, delivering desktop-class compute power in a space-saving design ideal for crowded workstations or mounted installations.
- Deca-core Intel Core i7 150U processor
- Up to 5.40 GHz turbo frequency
- Intel Iris Xe integrated graphics
Modern Connectivity Suite
Equipped with dual Thunderbolt 4 ports for 40 Gbps data transfer and display output, plus WiFi 6 and Bluetooth for wireless connectivity. The system includes two Gigabit Ethernet ports for wired network redundancy or segmentation.
- 2x Thunderbolt 4 ports
- WiFi 6 (802.11ax) wireless
- Dual Gigabit Ethernet ports
Easy Customization
As a barebone system, it allows users to install their preferred memory modules, storage drives, and operating system, creating a tailored computing solution without paying for pre-installed components that may not match specific requirements.
- Two DDR5 memory slots
- User-installed storage
- Operating system of choice
Deployment / Use Cases
The MSI Cubi NUC's compact dimensions and capable hardware make it suitable for various deployment scenarios where space is limited but performance requirements remain substantial.
In office environments, it serves as an efficient workstation for general productivity, email, web browsing, and document processing. The small form factor allows placement behind monitors or under desks, reducing clutter while maintaining access to modern connectivity options.
Digital Signage & Kiosk
With its small footprint and capable graphics output, this mini PC is ideal for powering digital signage displays, interactive kiosks, or point-of-sale systems in retail, hospitality, or corporate settings.
Home Office & Media Center
The system's HDMI output, WiFi 6 connectivity, and quiet operation make it suitable for home office setups or as a media center PC for streaming content to televisions and displays.
Physical Profile
The Cubi NUC measures just 1.90 inches in height with a 5.30-inch square footprint, occupying minimal desk or mounting space. Weighing approximately 1.30 pounds, the black chassis offers a professional appearance suitable for visible placements. The compact dimensions facilitate installation in space-constrained environments while the standard VESA mounting compatibility allows secure attachment to monitors or walls.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.90" (48.26 mm), 5.30" (134.62 mm), 5.30" (134.62 mm), 1.30 lb (589.67 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.30" (134.62 mm)
- Depth
- 5.30" (134.62 mm)
- Height
- 1.90" (48.26 mm)
- Weight
- 1.30 lb (589.67 g)
What's in the Box
This barebone system package includes the essential components needed to begin building your customized mini PC solution.
Highlights
- Intel Core i7 150U deca-core processor with 4 GHz base clock and 5.40 GHz turbo boost
- Supports up to 96 GB of DDR5-5200 memory across two accessible slots
- Dual Thunderbolt 4 ports for high-speed data transfer and display connectivity
- WiFi 6 (802.11ax) and Bluetooth for modern wireless connectivity
- Compact mini PC form factor measuring just 1.90" H × 5.30" W × 5.30" D
- Black chassis with professional appearance suitable for office environments
- Two Gigabit Ethernet ports for wired network connectivity
- Energy Star certified and complies with ErP, WEEE, and RoHS environmental standards
- 3-year limited warranty with advance replacement service
- Barebone design allows customization with user-selected memory, storage, and OS
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | CUBINUC1M009B |
| Brand Name | MSI |
| Product Model | Cubi NUC 1M-009BUS |
| Product Name | Cubi NUC 1M-009BUS Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Model | 150U |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 4 GHz |
| Maximum Turbo Speed | 5.40 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5200/PC5-41600 |
| Total Number of Memory Slots | 2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of Thunderbolt 4 Ports | 2 |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 1.90" (48.26 mm) |
| Width | 5.30" (134.62 mm) |
| Depth | 5.30" (134.62 mm) |
| Weight (Approximate) | 1.30 lb (589.67 g) |
| Miscellaneous | |
| Package Contents | Cubi NUC 1M-009BUS Barebone System AC Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Year Advance Replacement |
User Manual
FAQ
What components do I need to add to make this barebone system operational?
To make the MSI Cubi NUC 1M-009BUS operational, you will need to install DDR5 memory modules (the system supports up to 96 GB across two slots), at least one storage drive (M.2 NVMe or SATA SSD), and an operating system of your choice. The system does not include these components, allowing you to select specifications that match your performance requirements and budget.
What type of memory does this mini PC support?
This barebone system supports DDR5 SDRAM memory with a speed standard of DDR5-5200 (PC5-41600). It features two memory slots that can accommodate modules up to a total of 96 GB. The DDR5 technology provides improved bandwidth and power efficiency compared to previous DDR4 memory for better system responsiveness.
Does this system include Thunderbolt 4 connectivity?
Yes, the MSI Cubi NUC 1M-009BUS includes two Thunderbolt 4 ports. These ports support data transfer speeds up to 40 Gbps, can deliver power to connected devices, and support display output. Thunderbolt 4 provides versatile connectivity for high-speed storage, docking stations, and external displays through a single cable.
What wireless connectivity options are available?
The system features WiFi 6 (802.11ax) wireless networking for fast and reliable internet connectivity, along with Bluetooth for connecting wireless peripherals like keyboards, mice, and headphones. The WiFi 6 standard offers improved performance in crowded wireless environments compared to previous WiFi generations.
Can this mini PC be mounted behind a monitor or on a wall?
Yes, the compact dimensions (1.90" H × 5.30" W × 5.30" D) and lightweight design (approximately 1.30 lb) make this system ideal for mounting behind monitors using VESA mounting brackets or on walls in space-constrained installations. The small footprint minimizes visible hardware in clean desk setups or digital signage deployments.
What warranty coverage does this product include?
The MSI Cubi NUC 1M-009BUS comes with a 3-year limited warranty that includes advance replacement service. This means if a warranty claim is approved, MSI will typically ship a replacement unit before requiring the defective unit to be returned, minimizing downtime for critical deployments.
