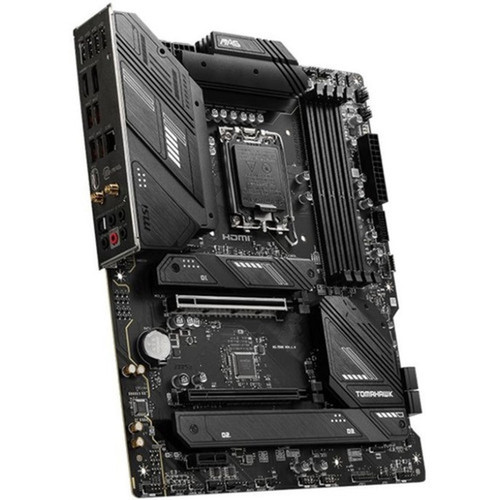

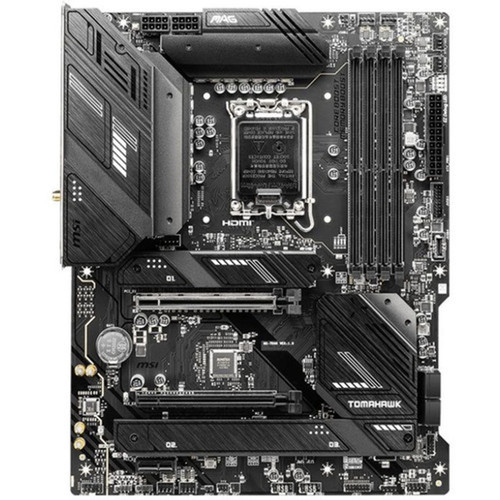

MSI B760TAMAWIFID4 MAG B760 Tomahawk WiFi DDR4 ATX Gaming Motherboard - LGA-1700
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- MAG B760 TOMAHAWK WIFI DDR4 Gaming Desktop Motherboard
- Quick Installation Guide
- SATA Cable
- EZ M.2 Clip
- Cable Stickers
- Wi-Fi Antenna
- European Union Regulatory Notice
Chipset Manufacturer: Intel
Chipset Model: B760
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen,13th Gen
Processor Supported: Pentium Gold,Celeron,Core
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 5333 MHz,5200 MHz,5066 MHz,5000 MHz,4800 MHz,4600 MHz,4400 MHz,4266 MHz,4200 MHz,4000 MHz,3800 MHz,3733 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3200 MHz,2933 MHz,2666 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 5.0,PCI Express 4.0,PCI Express 3.0
Total Number of USB Ports: 9
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 4
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Package Contents:
Country of Origin: China
Limited Warranty: 3 Year
- Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- RAID supported levels provide data reliability and fault tolerance
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 4 USB 2.0 ports, transfer several documents without error
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | B760TAMAWIFID4 |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MAG |
| Product Model | B760 TOMAHAWK WIFI DDR4 |
| Product Name | MAG B760 TOMAHAWK WIFI DDR4 Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen,13th Gen |
| Processor Supported | Pentium Gold,Celeron,Core |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 5333 MHz,5200 MHz,5066 MHz,5000 MHz,4800 MHz,4600 MHz,4400 MHz,4266 MHz,4200 MHz,4000 MHz,3800 MHz,3733 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3200 MHz,2933 MHz,2666 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 5.0,PCI Express 4.0,PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
