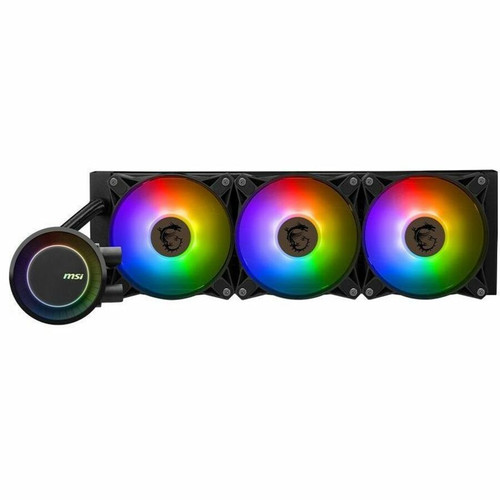

MSI MAG CORELIQUID E360 Cooling Fan/Radiator/Water Block/Pump - 4.72" (120 mm) Maximum Fan Diameter - 3 x Fan(s) - 75.04 CFM Maximum - (CLE360)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- MAG CORELIQUID E360 Cooling Fan/Radiator/Water Block/Pump
- 1 x 1 to 3 Fan PWM Cable
- 1 x Molex 4-Pin to 4-Pin Fan Cable
- 1 x Low Noise Adapter Cable
- 1 x Thermal Paste
Number of Fans: 3
Fan Bearing Type: Fluid Dynamic Bearing
Minimum Airflow: 25.50 CFM (43.32m³/h)
Maximum Airflow: 75.04 CFM (127.49m³/h)
Fan Life: 5.7 Year
LED Color: ARGB
Cooler Type: Liquid Cooler
Compatible Intel Socket: H3 LGA-1150,H4 LGA-1151,H2 LGA-1155,H LGA-1156,LGA-1200,LGA-1700
Compatible AMD Socket: AM5,AM4,TR4,sTRX4
Connectors: 4-Pin
Rated Current: 500 mA
Color Family: White
Product Color: White
Radiator Material: Aluminum
Maximum Fan Diameter: 4.72" (120 mm)
Radiator Height: 1.06" (27 mm)
Radiator Width: 15.51" (394 mm)
Radiator Depth: 4.69" (119.20 mm)
Fan Height: 0.98" (25 mm)
Fan Width: 4.72" (120 mm)
Fan Depth: 4.72" (120 mm)
Package Contents:
Features: Dissipates the Heat
Application/Usage: Processor,CPU,Motherboard,PC
- The enlarged copper base surface area helps to achieve ultimate heat exchange with the latest CPU generation.
- Maximize micro-channels to dissipate heat efficiently
- Rotatable water block cap for 270-degree.
- ARGB fan can change the lighting by MSI center.
- Enhanced fan performance to dissipate heat quickly.
- Durable three phase motor of the pump generates minimal vibrations for long-lasting operation.
- Spilt pathway through the radiator rapidly dissipates heat.
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | CLE360 |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MAG CORELIQUID |
| Product Model | E360 |
| Product Name | MAG CORELIQUID E360 Cooling Fan/Radiator/Water Block/Pump |
| Package Type | Retail |
| Product Type | Cooling Fan/Radiator/Water Block/Pump |
| Fan Information | |
| Number of Fans | 3 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Minimum Airflow | 25.50 CFM (43.32m³/h) |
| Maximum Airflow | 75.04 CFM (127.49m³/h) |
| Fan Life | 5.7 Year |
| LED Color | ARGB |
| Heatsink Information | |
| Cooler Type | Liquid Cooler |
| Compatible Intel Socket | H3 LGA-1150,H4 LGA-1151,H2 LGA-1155,H LGA-1156,LGA-1200,LGA-1700 |
| Compatible AMD Socket | AM5,AM4,TR4,sTRX4 |
| Interfaces/Ports | |
| Connectors | 4-Pin |
| Power Description | |
| Rated Current | 500 mA |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Radiator Material | Aluminum |
| Maximum Fan Diameter | 4.72" (120 mm) |
| Radiator Height | 1.06" (27 mm) |
| Radiator Width | 15.51" (394 mm) |
| Radiator Depth | 4.69" (119.20 mm) |
| Fan Height | 0.98" (25 mm) |
| Fan Width | 4.72" (120 mm) |
| Fan Depth | 4.72" (120 mm) |
| Miscellaneous | |
| Package Contents |
|
| Features | Dissipates the Heat |
| Application/Usage | Processor,CPU,Motherboard,PC |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf2
Additional-pdf1
[/custom-user-manual]
