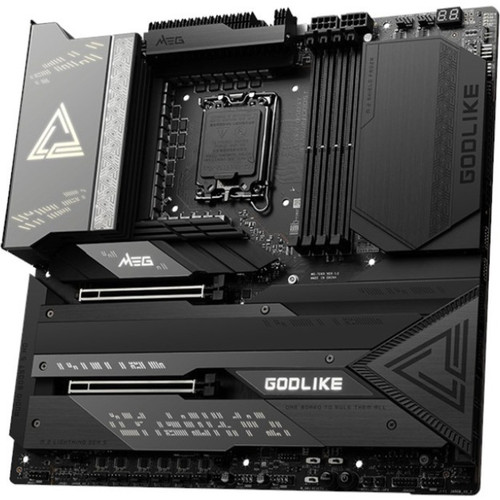

MSI MEG GODLIKE High Performance Gaming Desktop Motherboard Intel Socket LGA-1700 Extended ATX Celeron Chipset Pentium Gold Z790GODLIKE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- MEG Z790 GODLIKE Gaming Desktop Motherboard
- M-Vision Dashboard
- Wi-Fi Antenna
- USB Drive
- M-Vision Cable
- 3 x Sata Cables
- 2 x Thermistor Cables
- 1 to 2 RGB LED Extension Y Cable
- ARGB LED Extension Cable
- 1 to 3 ARGB gen 2 Extension Cable
- 2 x dp to Mini dp Cable
- Ez Front Panel Cable
- Metal Dragon Badge
- M.2 Screw/Standoff Set/Ez m.2 Clips
- Cable Stickers
- Quick Installation Guide
- European Union Regulatory Notice
Marketing Information:
Onboard septuple M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution.
Double-sided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster.
The screwless M.2 patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation
The patented magnetic M.2 Shield Frozr design enables true "wire-less" RGB function, enhances the installation process and maximizes the storage performance.
Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.
Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, Multi-Port Accessory Architecture and USB 4.0 Compliant.
The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
ILLUSION LIGHTING
MEG Z790 GODLIKE features Illusion Lighting effect that adopts exclusive multiple structure, which allows GODLIKE to displays dual patterns in one area. The non-overlapping dual patterns not only showoff the well crafted of the GODLIKE, but also reinforce the DIY and MEG spiri
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 13th Gen,12th Gen
Processor Supported: Pentium Gold,Celeron,Core
Number of Memory Slots: 4
Memory Form Factor: UDIMM,DIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 7600 MHz,7400 MHz,7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz,7800 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10,0,1,5
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 5.0
Total Number of USB Ports: 8
Number of USB 3.2 Gen 2 Type-A Ports: 7
Number of USB 3.2 Gen 2 Type-C Ports: 1
S/PDIF: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 7
Total Number of Onboard USB Ports: 10
Number of Onboard USB 2.0 Ports: 4
Form Factor: Extended ATX
Width: 12.20" (310 mm)
Depth: 12" (304.80 mm)
Package Contents:
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Extended ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | Z790GODLIKE |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MEG |
| Product Model | Z790 GODLIKE |
| Product Name | MEG Z790 GODLIKE Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 13th Gen,12th Gen |
| Processor Supported | Pentium Gold,Celeron,Core |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM,DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 7600 MHz,7400 MHz,7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz,7800 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10,0,1,5 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 5.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 2 Type-A Ports | 7 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 7 |
| Total Number of Onboard USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12.20" (310 mm) |
| Depth | 12" (304.80 mm) |
| Miscellaneous | |
| Package Contents |
|
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
