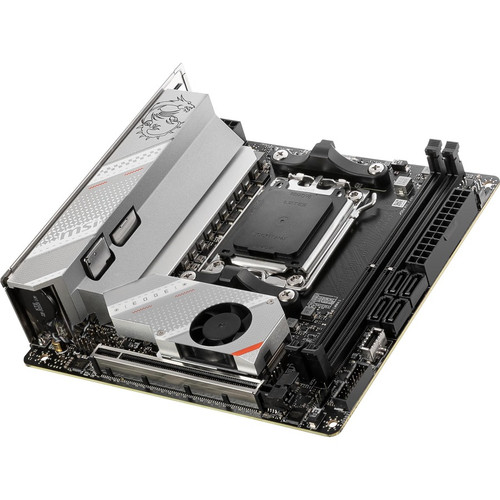

MSI MPG B650I EDGE WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Mini ITX - Ryzen 5, Ryzen 7, Ryzen 9 Processor - (B650IEDGEWIFI)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: AMD
Chipset Model: B650
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 5,Ryzen 7,Ryzen 9
Number of Memory Slots: 2
Memory Form Factor: UDIMM,DIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz,6600 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0
Total Number of USB Ports: 6
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 3
HDMI: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 3
Form Factor: Mini ITX
Width: 6.69" (170 mm)
Depth: 6.69" (170 mm)
Country of Origin: China
Limited Warranty: 3 Year
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- M.2 SHIELD FROZR: Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | B650IEDGEWIFI |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MPG |
| Product Model | B650I EDGE WIFI |
| Product Name | MPG B650I EDGE WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 5,Ryzen 7,Ryzen 9 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM,DIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz,6600 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 3 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.69" (170 mm) |
| Depth | 6.69" (170 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
