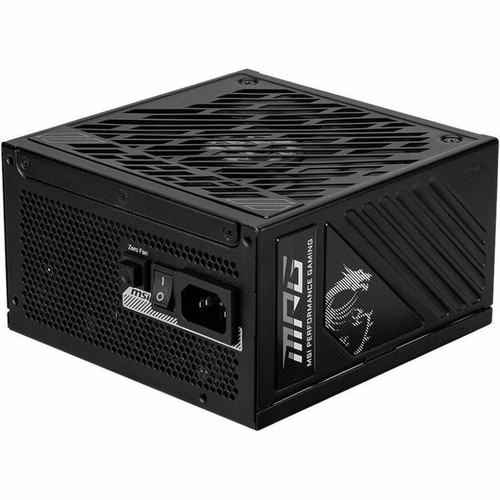

MSI MPG Internal 1250 Watt Power Supply High Capacity Factor Correction Multi Rail Support Output Input AC DC PFC kW SB V MPGA1250GSPCIE5
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Specification Compliance: ATX 3.1
Efficiency: 90%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Diameter: 135 mm (5.31")
Protection Type: Over Current,Over Power,Short Circuit,Over Voltage,Under Voltage,Surge & Inrush Protection,No Load,Over Temperature
Modular: Yes
NVIDIA SLI Supported: Yes
Features: Low Noise
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 5 V DC,3.3 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 5 V DC @ 22 A,3.3 V DC @ 22 A,-12 V DC @ 0.3 A,5 V SB @ 3 A,12 V DC @ 104.1 A
Output Power: 1.25 kW
Number of SATA Power Connectors: 8
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 1
Number of (4+4 pin) CPU Power Connectors: 2
Number of 4-pin Molex Power Connectors: 4
Form Factor: Internal
Energy Efficiency Certification: 80 Plus Gold
Limited Warranty: 10 Year
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | MPGA1250GSPCIE5 |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Series | MPG |
| Product Name | MPG 1250W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.1 |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Diameter | 135 mm (5.31") |
| Protection Type | Over Current,Over Power,Short Circuit,Over Voltage,Under Voltage,Surge & Inrush Protection,No Load,Over Temperature |
| Modular | Yes |
| NVIDIA SLI Supported | Yes |
| Features | Low Noise |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 5 V DC,3.3 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 5 V DC @ 22 A,3.3 V DC @ 22 A,-12 V DC @ 0.3 A,5 V SB @ 3 A,12 V DC @ 104.1 A |
| Output Power | 1.25 kW |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 1 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of 4-pin Molex Power Connectors | 4 |
| Physical Characteristics | |
| Form Factor | Internal |
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Gold |
| Warranty | |
| Limited Warranty | 10 Year |
