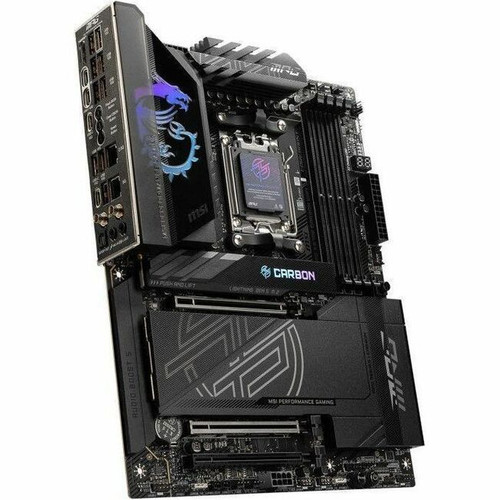

MSI MPG X870E CARBON WIFI Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX - Ryzen 7, Ryzen 9 Processor Supported - - (X870E CARBON WIFI7)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- MPG X870E CARBON WIFI Gaming Desktop Motherboard
- European Union Regulatory Notice
- Quick Installation Guide
- Cable Sticker
- Shout Out Flyer
- EZ Wi-Fi Antenna
- EZ M.2 Clip II
- EZ M.2 Clip II Remover
- 1 to 3 EZ Conn-Cable (V2)
- USB Drive
- 2 x SATA Cables
- ARGB Extension Cable
- 1 to 2 RGB Extension Cable
- EZ Front Panel Cable
AI-powered: Yes
Chipset Manufacturer: AMD
Chipset Model: X870E
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7,Ryzen 9
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 256 GB
Memory Speed Supported: 8400 MHz,6400 MHz,5600 MHz,4800 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,10,5
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 5.0,PCI Express 4.0
Total Number of USB Ports: 13
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Package Contents:
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | X870E CARBON WIFI7 |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MPG |
| Product Model | X870E CARBON WIFI |
| Product Name | MPG X870E CARBON WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7,Ryzen 9 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Speed Supported | 8400 MHz,6400 MHz,5600 MHz,4800 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10,5 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 5.0,PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 13 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents |
|
