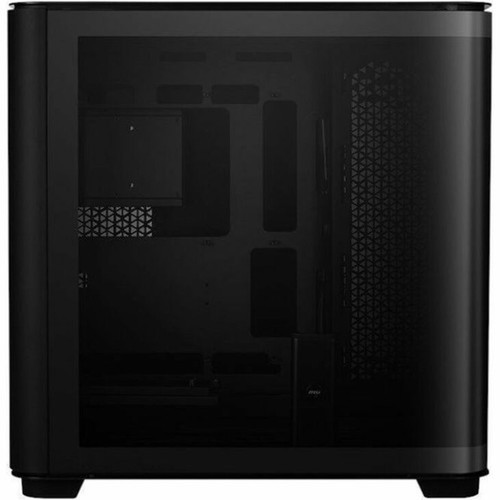

MSI PC Cases MEG MAESTRO 700L PZ - Mid-tower - Aluminum, Tempered Glass - EATX, ATX, Micro ATX, ITX Motherboard Supported - 10 x - 2 x (MAESTRO700LPZ)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Motherboard Supported: EATX,ATX,Micro ATX,ITX
Number of Fans Supported: 10
Fan Size Supported: 4.72" (120 mm),5.51" (140 mm)
Features: Reset Button,Cable Management
Number of Internal 2.5"/3.5" Bays: 2
Total Number of Expansion Slots: 7
Total Number of USB Ports: 3
USB Port Details: 2 x USB 3.2 Gen 1 Type-A,1 x USB 3.2 Gen 2x2 Type C
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Microphone: Yes
Product Material: Aluminum,Tempered Glass
Cooler Type: Liquid Cooler
Form Factor: Mid-tower
Maximum CPU Cooler Height: 6.69" (170 mm)
Maximum PSU Length: 9.06" (230 mm)
Maximum GPU Length: 16.93" (430 mm)
Height: 18.66" (474 mm)
Width: 11.81" (300 mm)
Depth: 18.50" (470 mm)

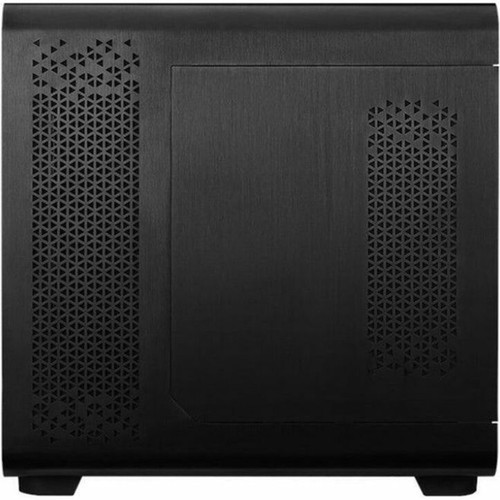

- Exemplary Craftsmanship: The limited edition chassis with unique encoding and design with 2.5 mm thick aluminum right side panel with the NCT cutting triangular ventilation, the whole chassis has more than 3600 triangular holes to improve heat dissipation.
- Triple 360 mm Radiator Support: The top/side/bottom panels can support 360 mm AIO liquid cooler or a custom liquid cooling loop with more than one radiator.
- Support Back-Connect Motherboard: Supporting ATX back-connect motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.
- Graphics Card Support: Exclusive horizontal graphics card stand is able to support longer and winder high-end graphics card. Also end users can choose to use the embedded vertical graphics card bracket to display graphics card for various system build show case.

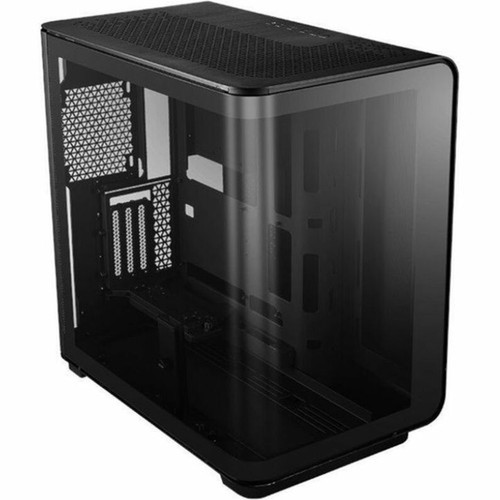

- Single piece 270-Degree Panoramic Display: Show off the components by a single piece 270-degree panoramic tempered glass, transforming it into a showcase-style chassis.

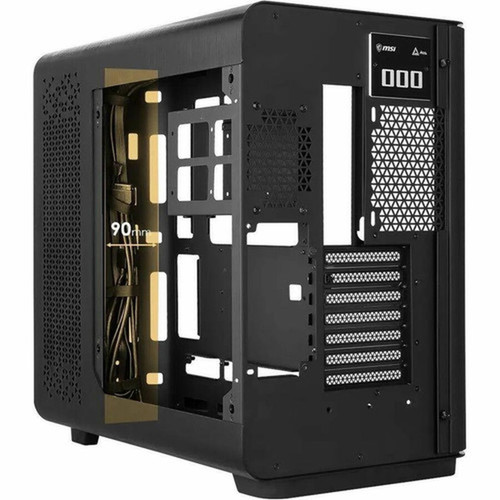

- Dual Chamber Construction: The dual chamber structure design provides users can build system without difficulty of cable management.
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | MAESTRO700LPZ |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MAESTRO |
| Product Name | PC Cases MEG MAESTRO 700L PZ |
| Product Type | Gaming Computer Case |
| Technical Information | |
| Motherboard Supported | EATX,ATX,Micro ATX,ITX |
| Number of Fans Supported | 10 |
| Fan Size Supported | 4.72" (120 mm),5.51" (140 mm) |
| Features | Reset Button,Cable Management |
| Bays | |
| Number of Internal 2.5"/3.5" Bays | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| USB Port Details | 2 x USB 3.2 Gen 1 Type-A,1 x USB 3.2 Gen 2x2 Type C |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Microphone | Yes |
| Physical Characteristics | |
| Product Material | Aluminum,Tempered Glass |
| Cooler Type | Liquid Cooler |
| Form Factor | Mid-tower |
| Maximum CPU Cooler Height | 6.69" (170 mm) |
| Maximum PSU Length | 9.06" (230 mm) |
| Maximum GPU Length | 16.93" (430 mm) |
| Height | 18.66" (474 mm) |
| Width | 11.81" (300 mm) |
| Depth | 18.50" (470 mm) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
