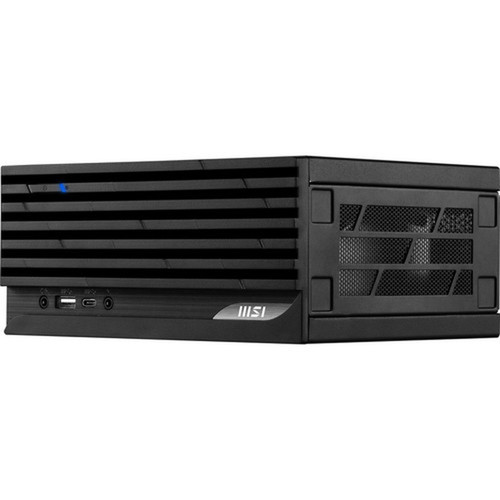

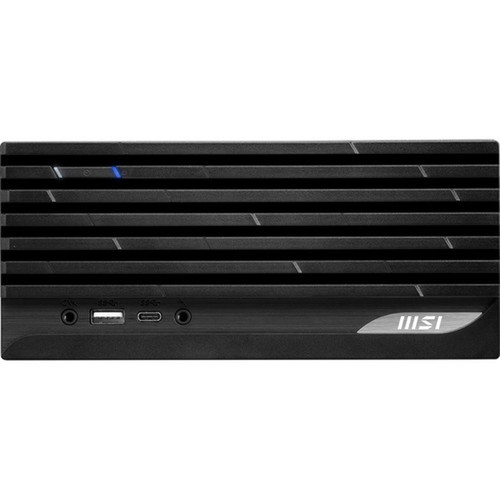

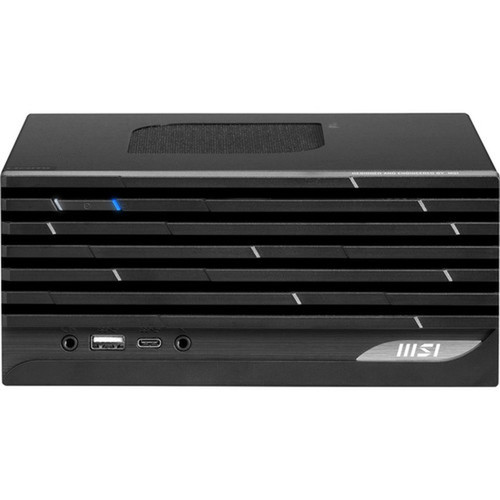

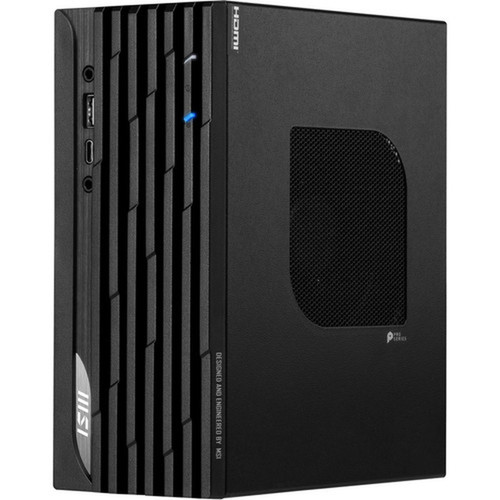

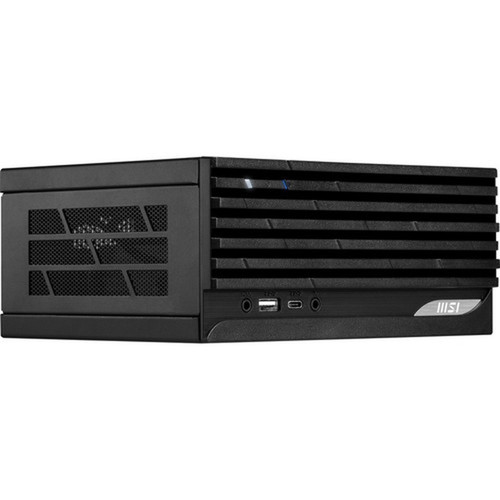

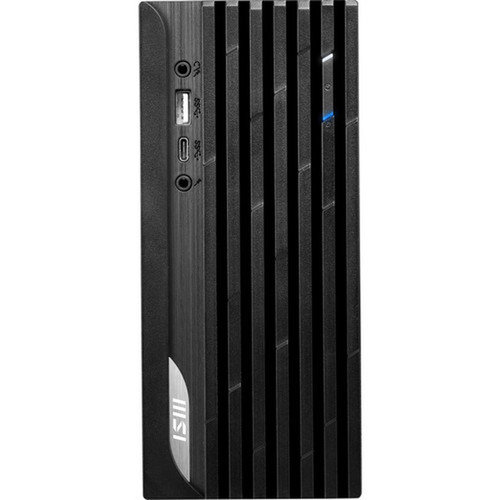

MSI PRDP20ZA5M060 PRO DP20ZA Small Form Factor Desktop - AMD Ryzen 5 5600G - 8GB DDR4250GB NVMe SSD - Windows 11 Home - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the PRO DP20ZA is the AMD Ryzen 5 5600G, a hexa-core processor with a base clock of 3.90 GHz and turbo boost up to 4.40 GHz. This APU combines CPU and GPU capabilities, featuring integrated AMD Radeon Vega 7 graphics that share system memory for handling HD video playback, photo editing, and office applications without a discrete graphics card. The AMD B300 chipset manages platform connectivity and stability.
Memory is configured as 8 GB of DDR4 SDRAM across two 4 GB modules, supporting efficient data handling for simultaneous applications. Storage is provided by a 250 GB PCI Express NVMe SSD in the M.2 form factor, offering high-speed data access and reduced load times compared to traditional hard drives. The system includes no optical drive, reflecting modern digital workflow preferences.
Key Product Advantages
The PRO DP20ZA combines compact design with capable hardware, making it a versatile choice for space-constrained environments. Its small form factor chassis measures just 5.91" wide by 10.63" deep by 13.35" high, with a weight of 3.35 pounds, allowing flexible placement on desks, under monitors, or in mounted configurations using the VESA 75x75 mm bracket. The black finish maintains a professional appearance that blends into office aesthetics.
Efficient Performance
The Ryzen 5 5600G processor and 8 GB DDR4 RAM handle everyday business software, web browsing, and multimedia tasks with responsiveness, while the 250 GB NVMe SSD accelerates system boot and application launches.
- Hexa-core processing power
- Fast NVMe storage
- 8 GB DDR4 for multitasking
Comprehensive Connectivity
With Gigabit Ethernet, Wi-Fi 6, Bluetooth, and six USB ports including a front USB Type-C, the desktop supports wired and wireless peripherals, network access, and modern devices without requiring additional adapters.
- Wi-Fi 6 for faster wireless
- USB 3.2 Gen2 Type-C
- Gigabit Ethernet reliability
Deployment / Use Cases
This desktop is well-suited for general office productivity, point-of-sale systems, digital signage, and educational environments where reliable performance and compact size are priorities. The integrated graphics and Windows 11 platform support common business applications, video conferencing, and light content creation without the need for additional hardware.
In retail or hospitality settings, the small footprint allows installation in tight spaces behind counters or under displays, while VESA mounting enables secure attachment to monitor arms or wall brackets. For home offices or small businesses, the system provides a complete computing solution with modern connectivity and sufficient storage for documents, spreadsheets, and presentation files.
Office Workstation
Ideal for running office suites, email clients, accounting software, and web applications in corporate or remote work setups, with quiet operation and minimal desk space requirements.
Compact Digital Hub
Serves as a media playback device, kiosk controller, or thin client base in public spaces, leveraging its small size and comprehensive I/O for connected displays and peripherals.
Localization and Operating System
The MSI PRO DP20ZA ships with Windows 11 Home pre-installed, providing a fully localized English operating environment out of the box. This includes the standard Windows interface, regional settings, and language packs configured for North American markets, ensuring immediate usability for business and home office deployments without additional software installation.
Windows 11 Home delivers a modern, secure platform with built-in productivity tools, Microsoft Defender antivirus, and regular updates. The operating system is optimized for the AMD Ryzen 5 5600G processor and integrated Radeon Vega 7 graphics, enabling smooth performance for office applications, web browsing, and multimedia tasks. This pre-configured setup reduces deployment time and IT overhead, offering a turnkey solution for general computing needs.
Physical Profile

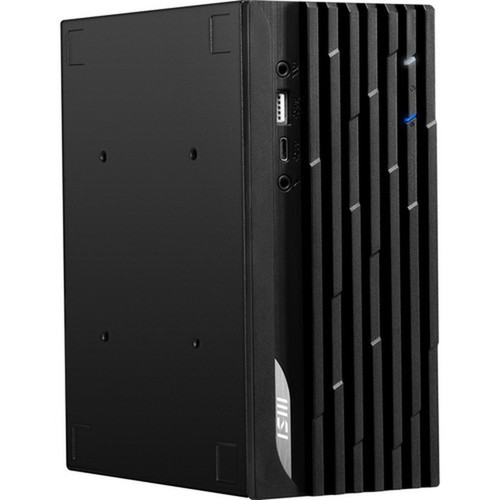

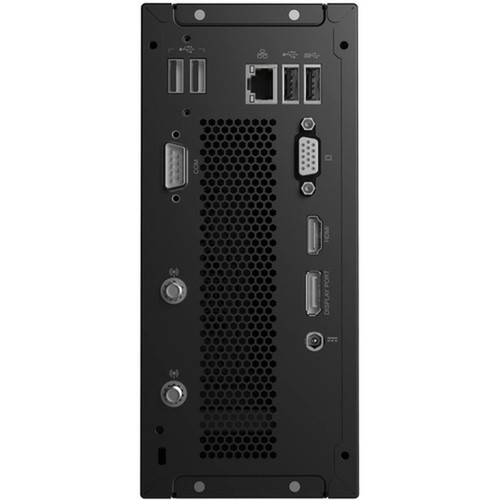

The PRO DP20ZA features a black small form factor chassis with dimensions of 5.91" (150.11 mm) wide, 10.63" (270 mm) deep, and 13.35" (339.09 mm) high. Weighing approximately 3.35 pounds (1519.53 grams), it is lightweight yet sturdy for desktop or mounted use. The rear panel includes VESA 75x75 mm mounting holes for attaching the system to compatible monitor arms, brackets, or wall mounts, enabling space-saving vertical or behind-display installations in crowded work areas.
- Width
- 5.91" (150.11 mm)
- Depth
- 10.63" (270 mm)
- Height
- 13.35" (339.09 mm)
- Weight
- 3.35 lb (1519.53 g)
What's in the Box
The package includes the PRO DP20ZA 5M-060US micro form factor desktop and an AC adapter, providing everything needed for basic setup and operation.
Package contents include PRO DP20ZA 5M-060US Micro Form Factor Desktop AC Adapter, PRO DP20ZA 5M-060US Micro Form Factor Desktop. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- AMD Ryzen 5 5600G hexa-core processor with 3.90 GHz base and 4.40 GHz turbo speed
- 8 GB DDR4 SDRAM memory in dual-channel configuration (2 x 4 GB)
- 250 GB PCI Express NVMe SSD for fast boot times and application loading
- Integrated AMD Radeon Vega 7 graphics with shared memory for HD video and office tasks
- Windows 11 Home operating system with modern interface and security features
- Compact small form factor design in black, measuring 5.91" x 10.63" x 13.35"
- Comprehensive connectivity: Gigabit Ethernet, Wi-Fi 6 (802.11ax), Bluetooth, 6 USB ports
- VESA 75x75 mm mount compatible for flexible placement options
- 120 W power supply for energy-efficient operation
- 1-year limited warranty for added peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | PRDP20ZA5M060 |
| Brand Name | MSI |
| Product Series | PRO DP20ZA 5M |
| Product Model | PRO DP20ZA 5M-060US |
| Product Name | PRO DP20ZA 5M-060US Micro Form Factor Desktop |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen 5 |
| Processor Model | 5600G |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 3.90 GHz |
| Maximum Turbo Speed | 4.40 GHz |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B300 |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Configuration | 2 x 4GB |
| Storage | |
| Total Solid State Drive Capacity | 250 GB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Optical Drive Type | No |
| Display & Graphics | |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon Vega 7 Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | RTL8111H |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports (Rear) | 3 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Home |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Small Form Factor |
| VESA Mount Standard | 75 x 75 |
| Height | 13.35" (339.09 mm) |
| Width | 5.91" (150.11 mm) |
| Depth | 10.63" (270 mm) |
| Weight (Approximate) | 3.35 lb (1519.53 g) |
| Miscellaneous | |
| Package Contents | PRO DP20ZA 5M-060US Micro Form Factor Desktop AC Adapter |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor does this product use?
This product uses the Ryzen 5 processor for everyday performance and multitasking.
How much memory is installed?
It includes 8 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 250 GB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of AMD, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
