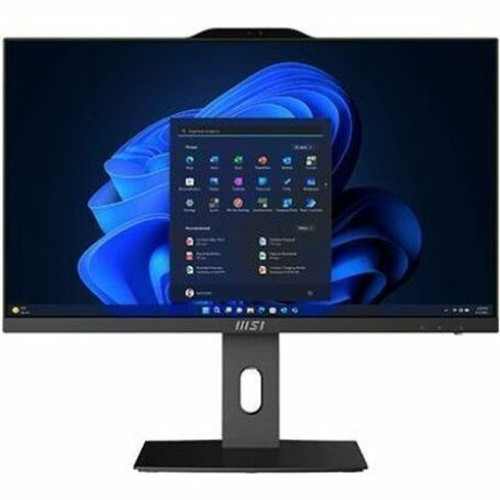

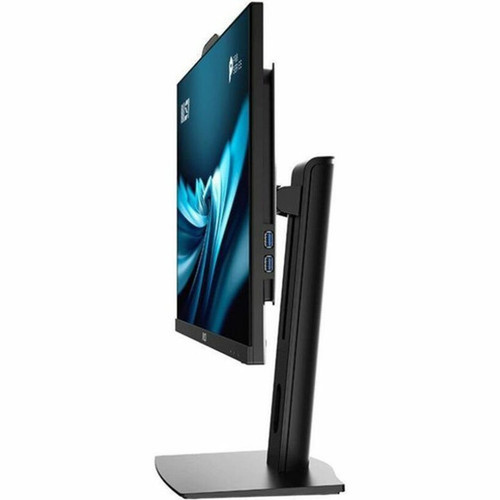

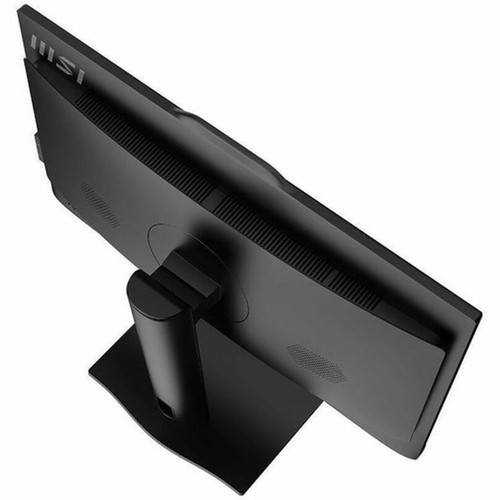

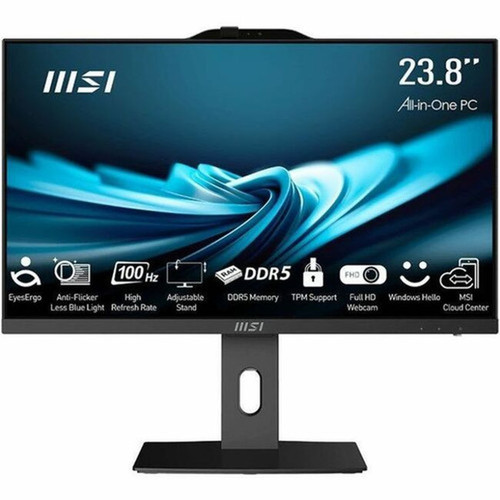

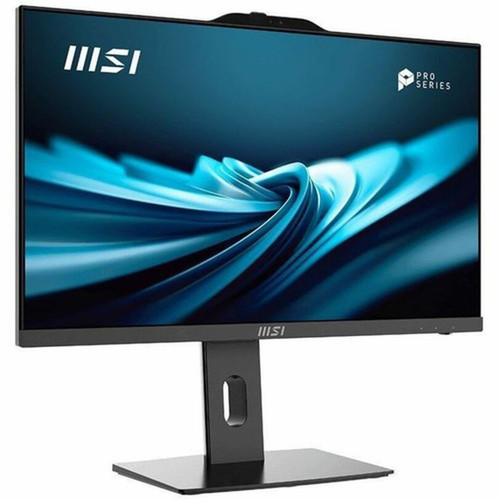

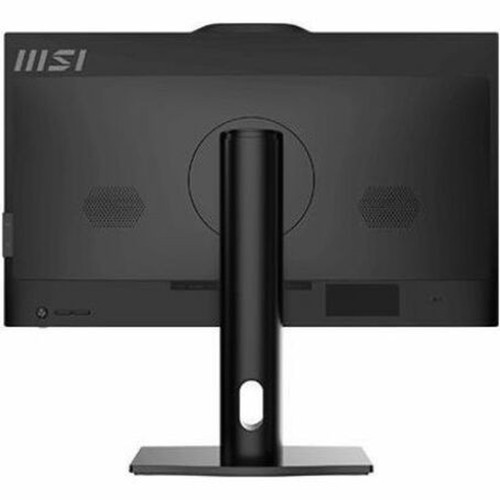

MSI PRO AP242P 14M-644US All-in-One Computer - Intel Core i5-14400 14th Gen - 8 GB DDR5 - 1 TB NVMe SSD - 23. 8" Full HD - Windows 11 Home - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the PRO AP242P 14M-644US is the Intel Core i5-14400 processor from the 14th Gen family. This deca-core CPU operates at a base frequency of 2.50 GHz with turbo capability up to 4.70 GHz, supported by the Intel H610 chipset. The system is configured with 8 GB of DDR5 memory running at 3200 MHz, providing responsive performance for multitasking and application workloads.
Storage is handled by a 1 TB PCI Express NVMe SSD in the M.2 form factor, offering rapid boot times and fast data access. Graphics are powered by Intel Iris Xe Graphics with shared DDR5 memory, suitable for office applications, media playback, and basic visual tasks. The 23.8" display delivers Full HD 1920 x 1080 resolution with flicker-free technology and low blue light features for extended viewing comfort.
Key Product Advantages
This all-in-one computer balances performance, connectivity, and user-friendly features in a single integrated unit. The combination of modern hardware components and thoughtful design elements creates a reliable computing platform for various professional and personal scenarios.
Modern Processing Platform
The Intel Core i5-14400 14th Gen processor provides efficient multi-core performance for everyday computing tasks, from office applications to media consumption, with turbo boost capability for demanding moments.
Comprehensive Connectivity Suite
With Gigabit Ethernet, Wi-Fi 6, Bluetooth, six USB ports including Type-C, and HDMI output, this system connects to networks, peripherals, and displays with contemporary standards.
Integrated Display & Multimedia
The 23.8" Full HD screen, built-in webcam, and DTS Surround sound system create a complete multimedia experience without requiring external components for basic video conferencing and content viewing.
Deployment / Use Cases
The MSI PRO AP242P 14M-644US is well-suited for environments where space efficiency and integrated functionality are priorities. Its all-in-one design reduces cable clutter and footprint while providing a complete computing solution right out of the box.
In office settings, this computer serves as a capable workstation for administrative tasks, customer service positions, and general business applications. The included wireless keyboard and mouse enhance the clean desktop setup. For educational institutions, the system offers a reliable platform for computer labs, library stations, or classroom teaching aids. Home users will appreciate the integrated display and multimedia features for family computing, homework assistance, and entertainment purposes.
Front Office & Reception Stations
The professional appearance, built-in webcam, and comprehensive connectivity support customer-facing positions where presentation and functionality matter.
Shared Workspace Solutions
With its space-saving design and included peripherals, this all-in-one computer efficiently equips collaborative areas, training rooms, and multi-user environments.
Localization and Operating System
This system comes pre-installed with Windows 11 Home, providing the latest Microsoft operating system with its full suite of productivity tools, security features, and modern interface. Windows 11 Home efficiently manages the hardware components for smooth operation while offering compatibility with a wide range of business and consumer applications.
The operating system includes Windows Hello compatibility for convenient biometric authentication when used with compatible peripherals. While the product description doesn't specify keyboard localization details, the included wireless keyboard typically follows regional standards for the target market.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The all-in-one design integrates the computing components behind the 23.8" display, creating a compact footprint measuring 24.41" wide, 19.13" high, and 8.78" deep. The black chassis maintains a professional aesthetic suitable for various environments.
Weighing approximately 10.21 pounds, the unit is substantial enough for stability while remaining manageable for installation. The included adjustable stand provides ergonomic viewing angles, and the 75 x 75 mm VESA mount compatibility allows for wall mounting or attachment to monitor arms when desk space optimization is required.
- Width
- 24.41" (620.01 mm)
- Depth
- 8.78" (223.01 mm)
- Height
- 19.13" (485.90 mm)
- Weight
- 10.21 lb (4631.18 g)
What's in the Box
The package includes all essential components for immediate setup and use:
Highlights
- Intel Core i5-14400 14th Gen processor with 10 cores and turbo boost up to 4.70 GHz
- 8 GB DDR5 memory at 3200 MHz for responsive multitasking performance
- 1 TB PCI Express NVMe SSD delivers fast boot times and application loading
- 23.8" Full HD display with flicker-free technology and low blue light features
- Built-in webcam and DTS Surround sound for video conferencing and multimedia
- Comprehensive connectivity: Wi-Fi 6, Bluetooth, Gigabit Ethernet, 6 USB ports including Type-C
- Windows 11 Home pre-installed with Windows Hello compatibility
- All-in-one design with adjustable stand and 75 x 75 mm VESA mount support
- Tool-less access design simplifies maintenance and upgrades
- Energy Star certified with ErP compliance for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | PRO AP242P 14M-644US |
| Brand Name | MSI |
| Product Series | PRO AP242P 14M |
| Product Model | PRO AP242P 14M-644US |
| Product Name | PRO AP242P 14M-644US All-in-One Computer |
| Product Type | All-in-One Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 14th Gen |
| Processor Model | i5-14400 |
| Processor Core | Deca-core (10 Core) |
| Processor Threads | 16 |
| Processor Speed | 2.50 GHz |
| Maximum Turbo Speed | 4.70 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 3200 MHz |
| Memory Configuration | 1 x 8GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Screen Size | 23.8" |
| Screen Mode | Full HD |
| Screen Resolution | 1920 x 1080 |
| Touchscreen | No |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | RTL8111H |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Built-in Devices | |
| Webcam | Yes |
| Sound System | DTS Surround |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports (Rear) | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 1 |
| USB Type-C (Rear) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Home |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop |
| VESA Mount Standard | 75 x 75 |
| Height | 19.13" (485.90 mm) |
| Width | 24.41" (620.01 mm) |
| Depth | 8.78" (223.01 mm) |
| Weight (Approximate) | 10.21 lb (4631.18 g) |
| Miscellaneous | |
| Package Contents | PRO AP242P 14M-644US All-in-One Computer Wireless Keyboard Wireless Mouse USB Receiver Power Adapter Vesa Mount Adjustable Stand |
| Features | Flicker-free,Low Blue Light,Tool-less Access |
| Windows Hello Compatible | Yes |
| Energy Star | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor does this MSI all-in-one computer use?
This MSI PRO AP242P 14M-644US features the Intel Core i5-14400 processor from the 14th Gen family. It's a deca-core (10-core) CPU with a base clock speed of 2.50 GHz and maximum turbo frequency of 4.70 GHz. This processor provides efficient multi-core performance suitable for general computing tasks, office applications, and multimedia consumption.
How much memory and storage does this system include?
The computer comes configured with 8 GB of DDR5 SDRAM running at 3200 MHz in a single 8 GB module configuration. For storage, it includes a 1 TB PCI Express NVMe solid-state drive in the M.2 form factor. This combination provides responsive system performance with fast storage access for applications and files.
What are the display specifications of this all-in-one computer?
The integrated display measures 23.8 inches diagonally with Full HD 1920 x 1080 resolution. It features flicker-free technology and low blue light emission for reduced eye strain during extended use. The screen is non-touch and provides crisp visuals for productivity tasks, web browsing, and media viewing.
What connectivity options are available on this MSI all-in-one?
This system offers comprehensive connectivity including Gigabit Ethernet via the RTL8111H controller, Wi-Fi 6 (802.11ax) wireless networking, and Bluetooth. For physical ports, it provides six USB ports total: two USB 2.0 on the rear, two USB 3.2 Gen 1, one USB 3.2 Gen 2, and one USB 3.2 Gen2 Type-C on the rear. It also includes HDMI output and features DTS Surround sound.
Does this computer come with an operating system pre-installed?
Yes, the MSI PRO AP242P 14M-644US comes with Windows 11 Home pre-installed. This provides the latest Microsoft operating system with its modern interface, productivity features, and security enhancements. The system is Windows Hello compatible for convenient biometric authentication when used with supported peripherals.
What is included in the package with this all-in-one computer?
The complete package includes the PRO AP242P 14M-644US All-in-One Computer itself, a wireless keyboard, a wireless mouse with USB receiver, a power adapter, a VESA mount, and an adjustable stand. This provides everything needed for immediate setup and use without requiring additional purchases for basic operation.
