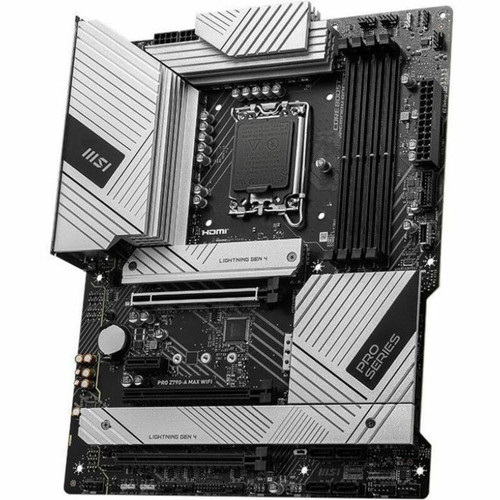

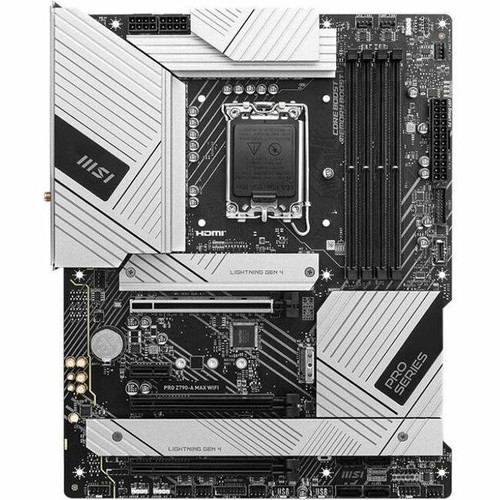

MSI PRO Z790-A MAX WIFI Desktop Motherboard Intel Chipset Socket LGA1700 ATX Celeron LGA-1700 Pentium Gaming Gold Core GB PROZ790AMAXWIFI
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
- Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
- The VRM heatsink covers the upper MOS and helps dissipate the heat.
- High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
- The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
- PRO Z790-A MAX WIFI Gaming Desktop Motherboard
- European Union Regulatory Notice
- Quick Installation Guide
- m.2 screw/Standoff set
- 2 x m.2 clips
- wi-fi antenna
- 2 x sata cables
- driver dvd
Marketing Information:
PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel®next Gen and 13th Gen Core processors.
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 13th Gen,12th Gen
Processor Supported: Pentium Gold,Celeron,Core
Number of Memory Slots: 4
Memory Form Factor: UDIMM,DIMM
Maximum Memory Supported: 192 GB
Memory Speed Supported: 7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz,7800 MHz,7600 MHz,7400 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Total Number of Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 5.0,PCI Express 4.0,PCI Express 3.0
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 3
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Package Contents:
- Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
- With 2 USB 2.0 ports, transfer several documents without error
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | PROZ790AMAXWIFI |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Series | PRO |
| Product Model | PRO Z790-A MAX WIFI |
| Product Name | PRO Z790-A MAX WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 13th Gen,12th Gen |
| Processor Supported | Pentium Gold,Celeron,Core |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM,DIMM |
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported | 7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz,7800 MHz,7600 MHz,7400 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 5.0,PCI Express 4.0,PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents |
|
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
