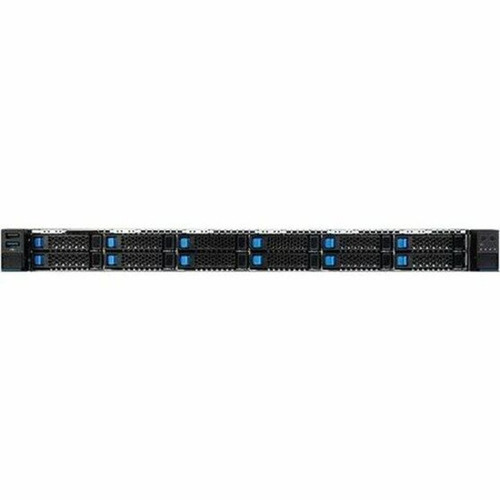

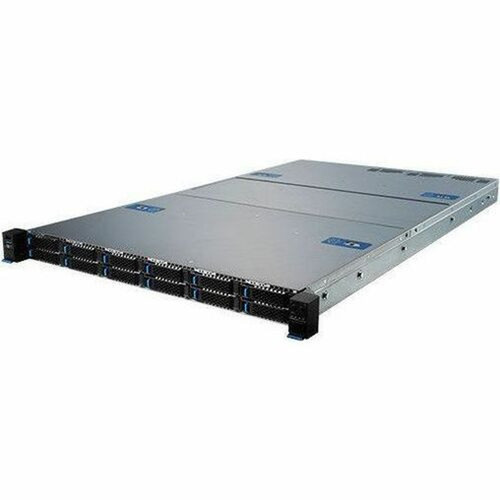

MSI S1206-01 Server Barebone System - Dual AMD EPYC Compatible - 1U Rackmount - 24x DDR5 Slots - 12 x 2. 5" Bays - 4x PCIe x16
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The S1206-01 implements a comprehensive hardware architecture designed for reliability and performance. The AMD chipset foundation supports 64-bit processing with EPYC processor compatibility, while the memory subsystem utilizes DDR5 SDRAM technology for enhanced data transfer rates and bandwidth. Storage connectivity includes native NVMe controller support alongside traditional drive interfaces, providing flexibility for mixed storage deployments.

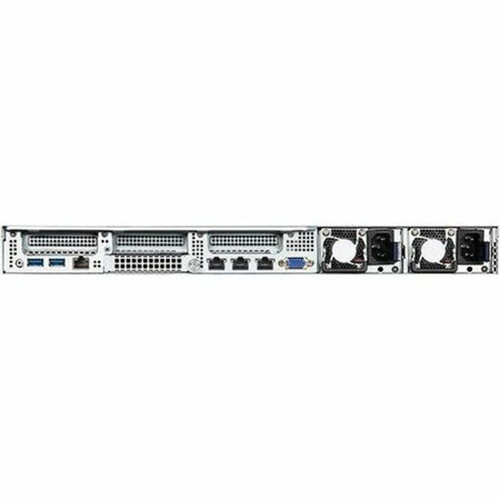

Network connectivity is delivered through three Gigabit Ethernet ports with RJ-45 interfaces, ensuring high-performance uplinks and network redundancy options. The system includes four PCI Express x16 expansion slots for adding specialized accelerators, network adapters, or storage controllers, plus two M.2 interfaces for high-speed NVMe storage modules.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This server barebone system combines high-density design with enterprise-grade features to deliver exceptional value in rack-optimized deployments. The dual processor architecture provides substantial compute headroom for virtualization, database, and HPC applications, while the extensive memory and storage expansion capabilities ensure future scalability as workload demands evolve.
High-Density Storage
Twelve 2.5" drive bays support mixed SSD and HDD configurations with hot-swap capability for maintenance flexibility and storage tiering options.
- Hot-swappable design
- Mixed media support
- Tool-less installation
Robust Expansion
Four PCIe x16 slots accommodate high-bandwidth expansion cards including GPUs, network adapters, and storage controllers for specialized workload acceleration.
- Full-height support
- High-bandwidth slots
- Flexible configuration
Power Resilience
Dual 1.30 kW power supplies with C13 connectors provide redundant power delivery and support both 120V and 230V input voltages for global deployment flexibility.
- Redundant design
- Wide voltage range
- Hot-swap capable
Deployment / Use Cases
The S1206-01 server barebone is engineered for environments where compute density, storage capacity, and expansion flexibility are critical requirements. Its 1U form factor makes it particularly suitable for data centers, colocation facilities, and enterprise server rooms where rack space is at a premium but performance cannot be compromised.
Primary deployment scenarios include virtualization host platforms supporting multiple virtual machines, database servers requiring high memory bandwidth and storage I/O, and computational workloads in scientific research, financial modeling, or media rendering applications. The system also serves well as a storage server with its twelve drive bays, or as a network appliance platform with multiple PCIe slots for specialized networking cards.
Virtualization Host
Dual EPYC processors with extensive memory capacity create an ideal platform for hypervisor deployments supporting numerous virtual machines with demanding resource requirements.
High-Performance Storage
Twelve drive bays combined with NVMe support enable high-speed storage arrays for database applications, file serving, or backup repositories.
Physical Profile
Designed for standard 19-inch rack enclosures, the S1206-01 occupies a single rack unit (1U) with dimensions of 1.70" (43.20 mm) height, 17.24" (438 mm) width, and 30.31" (770 mm) depth. The rack-mountable chassis includes integrated slide rail kits for tool-less installation and maintenance access. The compact 1U design maximizes rack density while providing adequate airflow for cooling dual processors and multiple storage devices.
- Width
- 17.24" (438 mm)
- Depth
- 30.31" (770 mm)
- Height
- 1U
What's in the Box
The S1206-01 server barebone system ships complete with all necessary components for immediate deployment in standard rack environments.
Highlights
- Dual AMD EPYC processor support with Socket SP5 LGA-6096 compatibility
- 24 DDR5 SDRAM memory slots for high-capacity configurations
- 12 hot-swappable 2.5" drive bays for flexible storage expansion
- 4 PCI Express x16 slots for high-bandwidth expansion cards
- Dual 1.30 kW power supplies with redundant operation
- 1U rack-mountable chassis for high-density deployments
- 3 Gigabit Ethernet ports for network connectivity
- NVMe controller support for high-speed storage
- AMD chipset with 64-bit processing architecture
- Compliant with Energy-related Products Directive (ErP) and RoHS/WEEE standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | MSI |
| Manufacturer Part Number | S120601 |
| Brand Name | MSI |
| Product Model | S1206-01 |
| Product Name | S1206-01 Server Barebone System |
| Packaged Quantity | 1 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | NVMe |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 2.5" Bays | 12 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 3 |
| Number of Serial Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Plug/Connector Type | C13 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.30 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.20 mm) |
| Width | 17.24" (438 mm) |
| Depth | 30.31" (770 mm) |
| Miscellaneous | |
| Package Contents | S1206-01 Server Barebone System 1 x Quick guide 1 x Slide rail kits 2 x CPU Air Cooling Modules 2 x Power Supplies (Inside System) 2 x C13 Power Cords For US (125V/10A) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processors are compatible with the S1206-01 server barebone?
The S1206-01 supports dual AMD EPYC processors using the Socket SP5 LGA-6096 interface. This compatibility includes EPYC 9005 and 9004 series processors, providing a foundation for high-core-count configurations optimized for virtualization, database, and computational workloads. The system's architecture is designed to leverage EPYC processor features including high memory bandwidth and PCIe lane availability.
How much memory can this server barebone support?
This system includes 24 DDR5 SDRAM memory slots, allowing substantial memory configurations for memory-intensive applications. The DDR5 technology provides increased bandwidth and efficiency compared to previous generations, supporting higher-density DIMMs as they become available. The memory architecture is optimized for the dual processor configuration, with memory channels distributed across both CPU sockets.
What storage expansion options are available?
The S1206-01 provides multiple storage expansion paths including 12 hot-swappable 2.5" drive bays for SAS or SATA drives, two M.2 interfaces for NVMe storage modules, and NVMe controller support throughout the system. The 2.5" bays support mixed SSD and HDD configurations with tool-less installation, while the M.2 interfaces enable high-speed boot drives or cache acceleration.
What expansion slots does this system include?
Four PCI Express x16 expansion slots are available for adding specialized hardware such as graphics accelerators, network adapters, storage controllers, or FPGA cards. These full-height slots provide high-bandwidth connectivity for performance-critical expansion cards. The system also includes basic graphics support through an AST2600 controller with VGA output for initial configuration and management.
What power supply configuration is included?
The system includes two 1.30 kW power supplies installed internally, providing redundant power delivery for increased reliability. These power supplies support both 120V and 230V input voltages with C13 connectors, making them suitable for global deployment. The dual power design allows for hot-swap replacement during operation and provides power redundancy for critical applications.
What is included in the package for rack installation?
The complete package includes the S1206-01 server barebone system, slide rail kits for standard 19-inch rack mounting, two CPU air cooling modules, two pre-installed power supplies, two C13 power cords rated for US voltage (125V/10A), and a quick installation guide. The slide rail kits enable tool-less installation and provide proper chassis support and cable management in rack environments.
