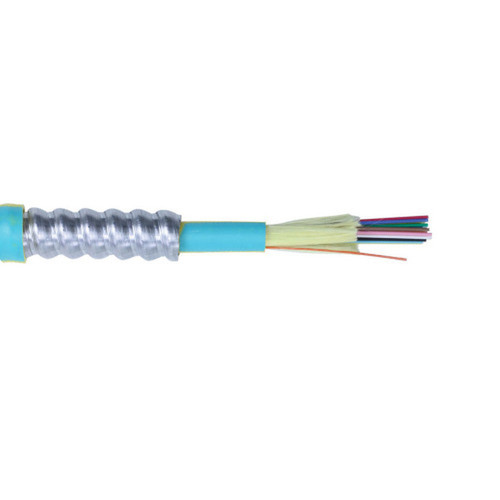

Multimode 50 Micron Armored Corning ClearCurve OFCP Plenum Bulk Fiber Cable 6 Strands Meter Per FN-BK-F6A-OM3-P-T
SKU:
FN-BK-F6A-OM3-P-T
(No reviews)
Write a Review
Write a Review
Fleet Network
Multimode 50 Micron Armored Corning ClearCurve OFCP Plenum Bulk Fiber Cable 6 Strands Meter Per FN-BK-F6A-OM3-P-T
MSRP:
$7.95
$7.95
$6.95
Save:
$1.00 (12.58%)
Warranty Information:
Covered by Manufacturer
Condition:
New
Width:
0.35
(cm)
Height:
0.35
(cm)
Depth:
0.35
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
This bulk armored fiber cable is plenum rated and has a tight buffer construction. It is OFCP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.
Features
- Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required.
- Extra protection for fiber optic cables in harsh industrial environments.
- Approved for use in manufacturing plants.
- High-density routings in data center application.
|
Physical Characteristics
|
|
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM3 50 micron Multimode Plenum Armored Tight Buffered Cable |
| Fiber Count | 6-Strand / 12-Strand / 24-Strand |
| Glass Fiber | Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 11.8mm |
| Tension(Installation) | 100 lbs (6 and 12-Strand) 200 lbs (24-Strand) |
| Tension(Long Term) | 30 lbs (6 and 12-Strand) 60 lbs (24-Strand) |
| Bending Radius(Installation) | 17.7cm |
| Bending Radius(Long Term) | 12.2cm (6-Strand) 12.7cm (12 and 24-Strand) |
| Operating Temperature | -0 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +75 deg C |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
| Gigabit Ethernet Min. Link Distance | 6 and 12-Strand 850nm = 1000 1300nm = 600 24-Strand 850nm = 1000 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 300 |
| Fire Rating | OFCP |
|
Certification(s)
|
|
| ETL | Yes |
| c(ETL) | Yes |
|
Product Support
|
|
| RoHS | Yes |
| Country of Origin | USA |
