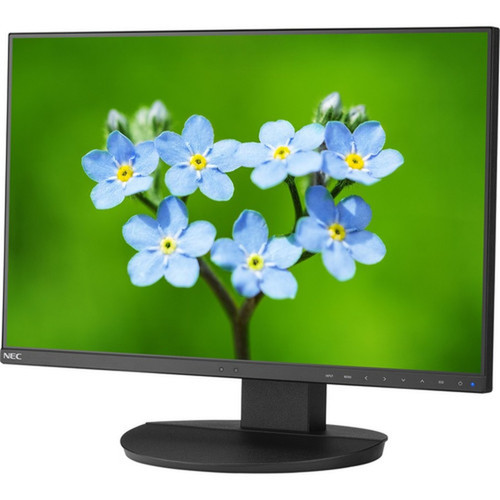

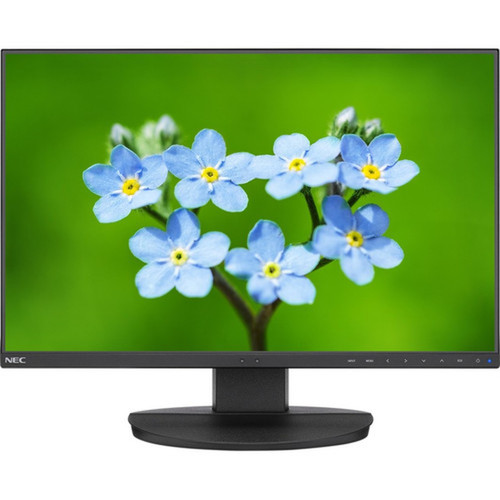

NEC Display EA231WU-BK MultiSync WUXGA LCD Monitor - 22. 5" Viewable - 1920 x 1200 - WLED Backlight - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- MultiSync EA231WU-BK Widescreen LCD Monitor
- Setup sheet
- User manual
- Power cord
- DisplayPort cable
- USB cable
- ControlSync cable
Number of Screens: 1
Viewable Screen Size: 22.5"
Screen Mode: WUXGA
Response Time: 5 ms
Aspect Ratio: 16:10
Pixel Pitch: 0.25000 mm x 0.25000 mm
Backlight Technology: WLED
Horizontal Frequency: 31.50 kHz to 75 kHz - Analog/Digital
Vertical Frequency: 50 Hz to 60 Hz
Maximum Resolution: 1920 x 1200
Color Supported: 16.7 Million Colors
Brightness: 250 cd/m²
Color Gamut: 69.5% NTSC,94.3% sRGB,72.9% Adobe RGB
Speakers: Yes
DVI: Yes
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Built-in Devices: USB Hub
Operating Power Consumption: 15 W
Standby Power Consumption: 290 mW
VESA Mount Compatible: Yes
Color Family: Black
Height: 12.60" (320.04 mm)
Width: 19.60" (497.84 mm)
Depth: 1.80" (45.72 mm)
Height with Stand: 19.20" (487.68 mm)
Width with Stand: 19.60" (497.84 mm)
Depth with Stand: 9.80" (248.92 mm)
Weight (Approximate): 7.50 lb (3401.94 g)
Weight with Stand (Approximate): 13 lb (5896.70 g)
Package Contents:
Energy Star: Yes
Country of Origin: China
TCO Certified: Yes
Environmentally Friendly: Yes
Environmental Certification: TCO Certified Displays 7.0
Energy Efficiency Certification: ENERGY STAR 7.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- 5 ms response time makes it excellent for latest action films, sports or gaming
- Furnishes captivating visuals with 250 cd/m² brightness levels
- Experience supreme quality HD content with Widescreen Ultra Extended Graphic Array
- Aspect ratio of 16:10 delivers a viewing area that works well for home and office
- HDMI (High Definition Multimedia Interface) offers fantastic sound/video quality and single-cable comfort
- VESA mount compatibility allows you to mount the display on a wall or with a stand depending on your specific needs
- DisplayPort interface that transmits both audio and video signals through a single connection to deliver versatile performance
[custom-specifications]
| Specifications | |
| Manufacturer | Sharp |
| Manufacturer Part Number | EA231WU-BK |
| Manufacturer Website Address | http://www.sharp-nec-displays.com/ |
| Brand Name | NEC Display |
| Product Line | MultiSync |
| Product Series | EA |
| Product Model | EA231WU-BK |
| Product Name | MultiSync EA231WU-BK Widescreen LCD Monitor |
| Product Type | LCD Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Viewable Screen Size | 22.5" |
| Screen Mode | WUXGA |
| Response Time | 5 ms |
| Aspect Ratio | 16:10 |
| Pixel Pitch | 0.25000 mm x 0.25000 mm |
| Backlight Technology | WLED |
| Horizontal Frequency | 31.50 kHz to 75 kHz - Analog/Digital |
| Vertical Frequency | 50 Hz to 60 Hz |
| Video | |
| Maximum Resolution | 1920 x 1200 |
| Color Supported | 16.7 Million Colors |
| Brightness | 250 cd/m² |
| Color Gamut | 69.5% NTSC,94.3% sRGB,72.9% Adobe RGB |
| Audio | |
| Speakers | Yes |
| Interfaces/Ports | |
| DVI | Yes |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Power Description | |
| Operating Power Consumption | 15 W |
| Standby Power Consumption | 290 mW |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Color Family | Black |
| Height | 12.60" (320.04 mm) |
| Width | 19.60" (497.84 mm) |
| Depth | 1.80" (45.72 mm) |
| Height with Stand | 19.20" (487.68 mm) |
| Width with Stand | 19.60" (497.84 mm) |
| Depth with Stand | 9.80" (248.92 mm) |
| Weight (Approximate) | 7.50 lb (3401.94 g) |
| Weight with Stand (Approximate) | 13 lb (5896.70 g) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | China |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified Displays 7.0 |
| Energy Efficiency Certification | ENERGY STAR 7.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | NEC Display Basic Display Calibration Bundle |
| SKU | SVII-EA-KIT |
| Sale Price | $253.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
