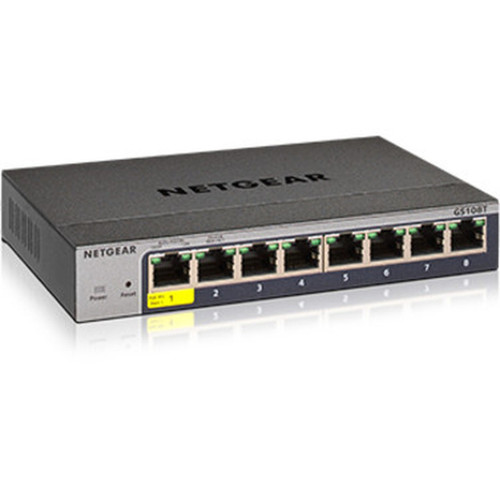

Netgear GS108T-300NAS 8-Port Gigabit Smart Managed Pro Switch - Layer 3 - Desktop/Wall Mount - Cloud Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features eight Gigabit Ethernet ports that support 10/100/1000Base-T network technology, ensuring compatibility with a wide range of devices and cabling. The twisted pair media support allows for cost-effective deployment using standard Ethernet cables, with data transfer capabilities up to 100 meters per connection.
The smart managed functionality provides intuitive control over network settings, including VLANs, QoS, and traffic monitoring, accessible via a web interface or cloud management platform. The Layer 3 support adds routing capabilities, enabling inter-VLAN communication and improved network efficiency without the need for an external router in smaller setups.
Relevant factors for this section include Total Number of Network Ports, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS108T-300NAS stands out with its blend of advanced features and practical design, offering businesses a cost-effective solution for managed networking. Its cloud management capability simplifies remote administration, reducing the need for on-site IT support and enabling quick configuration changes from anywhere.
Layer 3 Flexibility
Supports Layer 3 switching for basic routing functions, allowing network segmentation and improved traffic management without additional hardware.
- Inter-VLAN routing
- Enhanced performance
- Reduced latency
Compact Deployment
The desktop and wall-mountable design provides installation flexibility, making it ideal for space-constrained environments like small offices, classrooms, or retail counters.
- Saves rack space
- Easy to install
- Versatile placement
Reliable Connectivity
Eight Gigabit ports ensure high-speed data transfer for connected devices, supporting bandwidth-intensive applications and future network growth.
- Gigabit throughput
- Twisted pair compatibility
- Scalable port count
Deployment / Use Cases
This switch is well-suited for small business networks, branch offices, or educational settings where managed switching and Layer 3 features are required but a full rack-mounted solution is unnecessary. Its cloud management support makes it particularly valuable for distributed environments with limited local IT resources.
Common use cases include serving as the core switch in a small office network, providing connectivity for IP cameras or VoIP phones in retail environments, or acting as a distribution switch in a segmented network setup. The wall-mount option allows for discreet installation in cabinets or on walls, keeping workspaces organized and cables managed.
Small Office Core Switch
Deploy as the central networking hub for up to eight devices, with Layer 3 support enabling efficient traffic flow between departments or VLANs.
Remote Site Networking
Use in branch offices or retail locations with cloud management for easy remote configuration and monitoring without on-site visits.
Physical Profile
The switch measures 1.06 inches in height, 6.22 inches in width, and 3.98 inches in depth, with a weight of approximately 15.17 ounces. This compact size facilitates easy placement on desktops, shelves, or mounted on walls using standard hardware. The lightweight design reduces shipping costs and simplifies handling during installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.06" (27 mm), 6.22" (158 mm), 3.98" (101 mm), 15.17 oz (430 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.22" (158 mm)
- Depth
- 3.98" (101 mm)
- Height
- 1.06" (27 mm)
- Weight
- 15.17 oz (430 g)
Highlights
- 8 Gigabit Ethernet ports for high-speed network expansion
- Layer 3 switching support for enhanced routing and performance
- Smart managed with cloud management capabilities
- Desktop and wall-mountable form factor for flexible deployment
- Twisted pair media support up to 100 meters
- Power over Ethernet (PoE) support for connected devices
- Energy-efficient design compliant with ErP directive
- Lifetime warranty for long-term reliability
- Environmentally friendly with RoHS, WEEE, and REACH compliance
- Compact dimensions ideal for space-constrained environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GS108T-300NAS |
| Brand Name | Netgear |
| Product Line | ProSafe |
| Product Model | GS108Tv3 |
| Product Name | 8-Port Gigabit Ethernet Smart Managed Pro Switches with Cloud Management |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Modular | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| Power Source | Power Adapter,PoE |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable |
| Height | 1.06" (27 mm) |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Weight (Approximate) | 15.17 oz (430 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many ports does the Netgear GS108T-300NAS switch have?
The Netgear GS108T-300NAS features eight Gigabit Ethernet ports, providing connectivity for up to eight network devices such as computers, printers, IP cameras, or VoIP phones. All ports support 10/100/1000Base-T speeds, ensuring high-performance data transfer for small to medium business networks.
What is Layer 3 switching, and why is it important?
Layer 3 switching adds basic routing capabilities to the switch, allowing it to handle inter-VLAN traffic and perform IP-based routing without a separate router. This enhances network performance by reducing latency and enabling more efficient traffic management, making it suitable for segmented networks or environments requiring advanced connectivity.
Can this switch be mounted on a wall?
Yes, the Netgear GS108T-300NAS supports both desktop and wall-mountable installations. Its compact design and included mounting options allow flexible placement in offices, retail spaces, or other environments where rack mounting is not required, helping save space and organize cabling.
Does the switch support Power over Ethernet (PoE)?
The switch includes PoE support as part of its power source options, enabling it to deliver power to compatible devices like IP phones, wireless access points, or cameras over the Ethernet cables. This simplifies installation by reducing the need for separate power adapters at each device location.
What management features are available?
This is a smart managed switch with cloud management capabilities, offering web-based configuration for VLANs, QoS, port monitoring, and security settings. The cloud management feature allows remote administration from anywhere, making it easier to maintain and troubleshoot networks without physical access to the switch.
What warranty comes with the switch?
The Netgear GS108T-300NAS includes a lifetime warranty, providing long-term coverage for hardware defects and ensuring reliability for business deployments. This warranty supports the switch's durability and Netgear's commitment to quality in the ProSafe product line.
