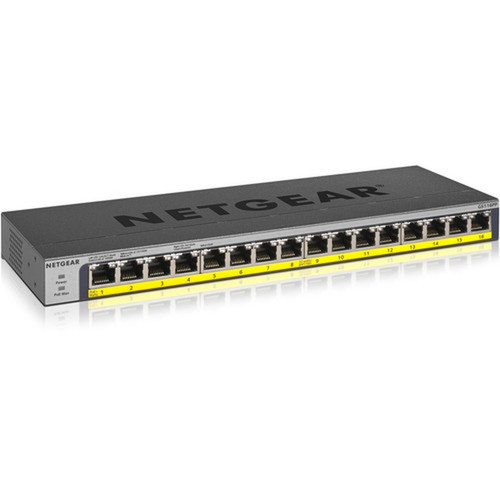

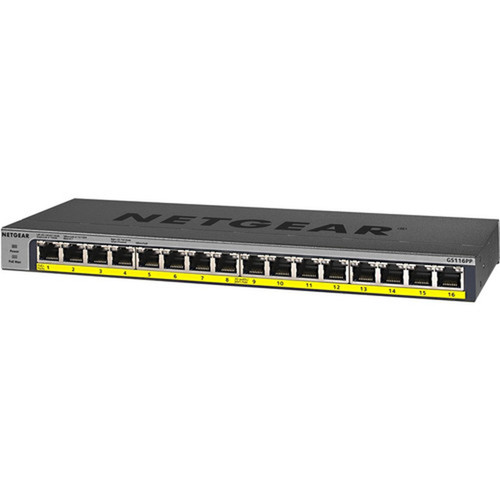

Netgear GS116PP-100NAS ProSafe 16-Port 183W PoE+ Gigabit Ethernet Unmanaged Switch - Wall/Rack/Desktop Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Layer 2 switching architecture, the GS116PP supports auto-negotiation and auto-MDI/MDIX for seamless integration with existing network infrastructure. The 16 Gigabit Ethernet ports deliver full wire-speed performance, eliminating bottlenecks for bandwidth-intensive applications.
Power is supplied through an external 200W adapter included in the package, with support for interchangeable 90W, 130W, or 200W power supplies to adjust PoE budget as needed. The switch does not support redundant power supplies or modular expansion, keeping the design simple and cost-effective for basic connectivity needs.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
High-Power PoE+ Ready
With 183W total PoE budget and support for both 802.3af and 802.3at standards, this switch can power multiple PoE devices simultaneously—from IP phones and wireless access points to security cameras—simplifying installation by eliminating separate power cables.
- 30W maximum per port
- Backward compatible with PoE devices
- Flexible power supply options
Deployment Flexibility
The compact metal chassis supports three mounting configurations: wall-mounted for space efficiency, rack-mounted using the included kit for organized installations, or desktop placement for temporary setups. This versatility makes it suitable for various environments without requiring dedicated rack space.
- Includes rack-mounting hardware
- Wall-mount kit provided
- Sturdy metal construction
Deployment / Use Cases
Ideal for small business networks, the GS116PP provides essential connectivity for workstations, printers, and network-attached storage devices while powering PoE-enabled endpoints. Its unmanaged nature makes it perfect for locations without dedicated IT staff, where simplicity and reliability are paramount.
In retail environments, this switch can connect point-of-sale systems, digital signage, and security cameras while providing PoE to IP cameras and wireless access points. The fanless operation ensures quiet performance in customer-facing areas, and the flexible mounting allows installation under counters or on walls to conserve space.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Measuring 3.27 inches in height, 11.62 inches in width, and 14.74 inches in length, the GS116PP has a compact footprint that fits standard 19-inch rack configurations using the included mounting brackets. The 6.15-pound weight and sturdy metal construction provide durability for permanent installations, while the fanless design eliminates moving parts for increased reliability.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.27" (83.06 mm), 11.62" (295.15 mm), 6.15 lb (2789.59 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.62" (295.15 mm)
- Height
- 3.27" (83.06 mm)
- Weight
- 6.15 lb (2789.59 g)
- Length
- 14.74" (374.40 mm)
What's in the Box
The package includes everything needed for immediate deployment in various configurations.
Highlights
- 16 Gigabit Ethernet ports with 183W total PoE+ budget
- Plug-and-play unmanaged operation requires no configuration
- Supports 802.3af and 802.3at PoE standards (up to 30W per port)
- Flexible wall, rack, or desktop mounting options
- Interchangeable external power supplies (90W, 130W, 200W)
- Fanless metal chassis for silent operation
- Compact dimensions: 3.27" H × 11.62" W × 14.74" L
- Lifetime limited hardware warranty with next-business-day replacement
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GS116PP-100NAS |
| Brand Name | Netgear |
| Product Line | ProSafe |
| Product Model | GS116PP |
| Product Name | 16-Port 183W PoE/PoE+ Gigabit Ethernet Unmanaged Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Rack-mountable,Desktop |
| Height | 3.27" (83.06 mm) |
| Width | 11.62" (295.15 mm) |
| Length | 14.74" (374.40 mm) |
| Weight (Approximate) | 6.15 lb (2789.59 g) |
| Miscellaneous | |
| Package Contents | 16-Port 183W PoE/PoE+ Gigabit Ethernet Unmanaged Switch Rack-Mounting Kit Wall-Mount Kit Quick Install Guide Power Adapter (External 200W) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many devices can this switch power with PoE?
The Netgear GS116PP provides 183W total PoE budget across all 16 ports. With support for both 802.3af (15.4W) and 802.3at (30W) standards, you can power multiple PoE devices simultaneously—such as IP phones, wireless access points, or security cameras—as long as the total power consumption does not exceed 183W. The exact number of devices depends on their individual power requirements.
Is this switch manageable or configurable?
No, the GS116PP is an unmanaged switch designed for plug-and-play operation. It requires no software configuration, management interfaces, or setup procedures. The switch automatically handles network traffic with auto-negotiation and auto-MDI/MDIX features, making it ideal for environments where simplicity and immediate deployment are priorities over advanced management capabilities.
What mounting options are supported?
This switch supports three mounting configurations: wall mounting using the included wall-mount kit, rack mounting in standard 19-inch racks with the provided rack-mounting brackets, and desktop placement. The flexible mounting options allow installation in space-constrained environments like network closets, retail counters, or office workstations without requiring dedicated rack space.
Does the switch include redundant power supply support?
No, the GS116PP does not support redundant power supplies. It operates with a single external power adapter (200W included, with options for 90W or 130W interchangeable adapters). The design focuses on simplicity and cost-effectiveness for basic connectivity needs rather than high-availability features typically found in managed enterprise switches.
What is the warranty coverage for this switch?
Netgear provides a lifetime limited hardware warranty for the GS116PP, which includes next-business-day replacement service and 24/7 chat support with NETGEAR experts. This ProSAFE Lifetime Protection ensures long-term support for your network infrastructure, covering defects in materials and workmanship for the lifetime of the product.
Can this switch be used in a rack-mounted configuration?
Yes, the GS116PP is rack-mountable using the included rack-mounting kit. With dimensions of 3.27 inches in height, it occupies minimal rack space while providing 16 Gigabit Ethernet ports. The sturdy metal construction ensures durability in rack environments, and the front-facing ports allow for easy cable management in standard 19-inch network racks or cabinets.
