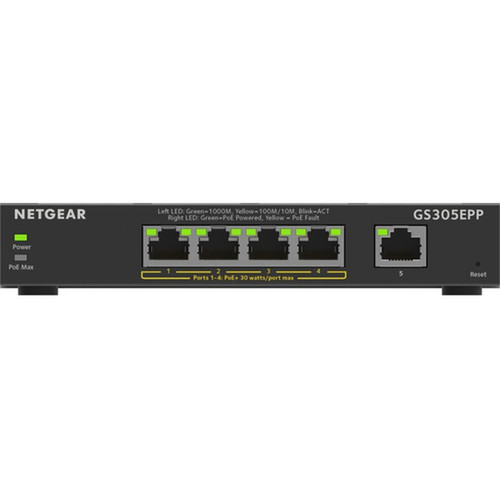

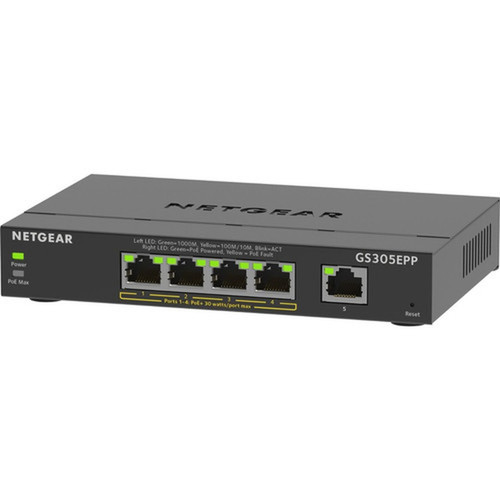

Netgear GS305EPP-100NAS GS305EPP 5-Port Gigabit Ethernet Switch - 120W PoE Budget - Layer 3 - Desktop/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features five Gigabit Ethernet ports with four supporting PoE+ (802.3at) and one supporting standard PoE (802.3af), providing flexible power delivery options. The uplink port enables cascading to expand network connectivity, while twisted-pair cable support allows data transfer up to 100 meters at Gigabit speeds.
Network management features include auto Denial of Service (DoS) prevention, loop detection and protection, broadcast storm control, and VLAN segmentation capabilities. These built-in safeguards help maintain network stability without requiring manual configuration or management software.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Uplink Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS305EPP combines essential switching features with substantial PoE power in a compact, versatile package. Its unmanaged operation simplifies deployment while the robust feature set addresses common small business networking requirements.
Substantial PoE Power
With 120W total PoE budget, this switch can power multiple PoE+ devices simultaneously, eliminating the need for separate power adapters at endpoint locations.
- 4 PoE+ ports (802.3at)
- 1 standard PoE port (802.3af)
- Supports IP phones, cameras, APs
Enhanced Network Performance
Layer 3 switching support enables improved traffic management and network segmentation capabilities compared to basic Layer 2 switches.
- VLAN segmentation
- Broadcast storm control
- Loop prevention
Flexible Deployment Options
The compact metal chassis supports both desktop placement and wall mounting, providing installation flexibility for various office environments.
- Desktop or wall mountable
- Compact footprint
- Rubber feet included
Deployment / Use Cases
This switch is ideal for small offices, retail locations, and professional workspaces requiring reliable wired connectivity with PoE capabilities. Its unmanaged nature makes it particularly suitable for environments without dedicated IT staff, where simple plug-and-play operation is preferred.
Common deployment scenarios include powering VoIP phone systems, supporting wireless access point networks, connecting security camera systems, and expanding wired network connectivity in conference rooms or reception areas. The switch's compact size and wall-mounting capability make it suitable for placement on desks, shelves, or mounted discreetly in office spaces.
Small Office Networking
Provide wired connectivity for 4-5 workstations while powering IP phones and wireless access points through a single network switch.
Retail & Hospitality
Deploy at point-of-sale stations or reception areas to connect multiple devices while maintaining clean cable management with PoE-powered endpoints.
Physical Profile
The switch measures 6.22" wide × 3.98" deep × 1.06" high (158 × 101 × 27 mm) with a weight of 14.11 ounces (400 grams). Its metal construction provides durability while the compact dimensions allow placement in space-constrained environments. The included wall installation kit and rubber feet support both mounted and desktop deployment options.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.06" (27 mm), 6.22" (158 mm), 3.98" (101 mm), 14.11 oz (400 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.22" (158 mm)
- Depth
- 3.98" (101 mm)
- Height
- 1.06" (27 mm)
- Weight
- 14.11 oz (400 g)
What's in the Box
The package includes all necessary components for immediate deployment and installation.
Highlights
- 5 Gigabit Ethernet ports with 120W total PoE budget
- 4 PoE+ ports (802.3at) and 1 standard PoE port (802.3af)
- Layer 3 switching support for enhanced network performance
- Unmanaged operation with plug-and-play setup
- Fanless metal chassis for silent, durable operation
- Desktop or wall-mountable form factor
- Uplink port for network expansion
- Built-in network protection features
- Supports twisted-pair cables up to 100 meters
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GS305EPP-100NAS |
| Brand Name | Netgear |
| Product Line | Business |
| Product Series | 300 |
| Product Model | GS305EPP |
| Product Name | Business GS305EPP Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless,Energy Efficient,Plug and Play,Auto Denial of Service (DoS) Prevention,Loop Detection,Loop Protection,Broadcast Storm Control,VLAN Segmentation |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+,1 x Gigabit Ethernet PoE |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 128 MB/s |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1p,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3,IEEE 802.1Q |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1.06" (27 mm) |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Package Contents | GS305EPP Ethernet Switch Power Adapter Wall Installation Kit Rubber Feet Installation Guide |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the total PoE budget of the Netgear GS305EPP switch?
The Netgear GS305EPP provides a total PoE budget of 120 watts. This power allocation supports simultaneous operation of multiple PoE+ devices across its four PoE+ ports and one standard PoE port, enabling deployment of IP phones, wireless access points, and security cameras without separate power adapters.
How many PoE ports does this switch have and what standards do they support?
This switch features five total ports with PoE capability: four ports support PoE+ (802.3at standard) for higher-power devices, while one port supports standard PoE (802.3af). All ports provide Gigabit Ethernet connectivity, allowing both data transfer and power delivery through a single network cable.
Is the Netgear GS305EPP a managed or unmanaged switch?
The GS305EPP is an unmanaged switch, meaning it operates with plug-and-play functionality without requiring configuration or management software. Despite being unmanaged, it includes built-in network protection features such as loop detection, broadcast storm control, and VLAN segmentation that operate automatically.
What does Layer 3 switching support mean for this switch?
Layer 3 switching support enables the switch to perform basic routing functions and network segmentation at the hardware level. This provides improved traffic management capabilities compared to standard Layer 2 switches, allowing for better network performance and the ability to create VLANs for separating network traffic without requiring a separate router.
Can this switch be wall-mounted or is it only for desktop use?
The GS305EPP supports both desktop and wall-mounted deployment. The package includes a wall installation kit with mounting hardware, and the switch chassis features appropriate mounting points. Rubber feet are also included for stable desktop placement, providing flexibility for various office environments and space constraints.
What network protection features are built into this unmanaged switch?
Despite its unmanaged design, the GS305EPP includes several automatic network protection features: auto Denial of Service (DoS) prevention, loop detection and protection, broadcast storm control, and VLAN segmentation capabilities. These features help maintain network stability by preventing common issues like broadcast storms and network loops without requiring manual configuration.
