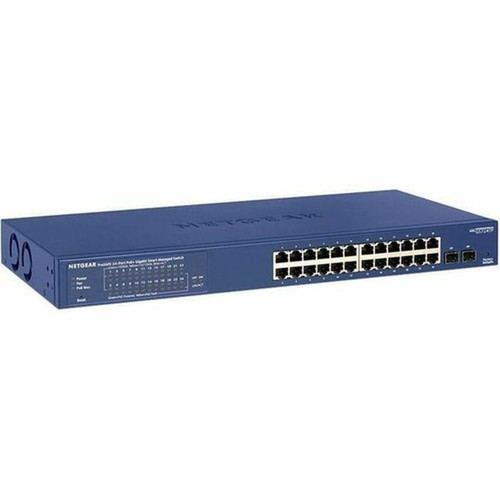

Netgear GS724TP-300NAS Smart Managed 24-Port Gigabit Ethernet Switch - PoE+ 190W Budget - 2 SFP Slots - Layer 4 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Gigabit Ethernet technology, the GS724TP-300NAS supports 10/100/1000Base-T and 1000Base-X network standards, delivering up to ten times faster connectivity than standard Ethernet. The switch operates at Layer 4, enabling advanced traffic classification and bandwidth management capabilities for multi-tenant and multi-business unit deployments.
The comprehensive networking standards support includes IEEE 802.3at/af for PoE, IEEE 802.1Q for VLANs, IEEE 802.3ad for link aggregation, and IEEE 802.1x for port-based network access control. With a power consumption of 228.53W and an integrated power supply, the switch ensures stable operation across all connected devices.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS724TP-300NAS provides an optimal balance of port density, power delivery, and management capabilities for growing networks. The combination of 24 PoE+ ports with substantial power budget makes this switch ideal for environments requiring both data connectivity and device power over a single cable.
High-Density PoE+ Deployment
With 24 PoE+ ports and 190W total budget, this switch can power numerous PoE devices simultaneously while maintaining full Gigabit data throughput.
- Eliminates separate power injectors
- Simplifies cable management
- Reduces installation costs
Flexible Expansion Options
Two SFP slots provide fiber connectivity options for longer distance connections or uplinks to other network segments.
- Supports optical fiber connections
- Enables network segmentation
- Extends connectivity range
Professional Installation Ready
The rack-mountable design with included mounting kit enables clean, organized deployment in server racks or network closets.
- Standard 19-inch rack compatible
- Includes mounting hardware
- Desktop installation option available
Deployment / Use Cases
The Netgear GS724TP-300NAS is well-suited for small to medium business networks, educational environments, retail locations, and professional offices requiring reliable switching with power delivery capabilities. Its Layer 4 functionality makes it particularly valuable for networks needing traffic prioritization and bandwidth management.
Common deployment scenarios include powering and connecting wireless access points throughout an office building, supporting IP surveillance systems with multiple cameras, and providing connectivity for VoIP phone systems. The switch's smart management features allow network administrators to implement basic QoS, VLAN segmentation, and port security without requiring advanced networking expertise.
Office Network Core
Serve as the central switching point for office workstations, printers, and network devices while powering wireless access points and VoIP phones.
IP Surveillance Backbone
Connect and power multiple IP security cameras while providing high-bandwidth connectivity for video recording and monitoring systems.
Physical Profile
The GS724TP-300NAS features a compact 1U form factor measuring 1.69" high, 17.32" wide, and 8.03" deep, making it suitable for standard 19-inch server racks. At 6.94 pounds, the switch maintains a manageable weight for installation in various environments. The included rubber footpads allow for stable desktop placement when rack mounting isn't required, while the comprehensive mounting kit facilitates secure rack installation with proper cable management.
- Width
- 17.32" (440 mm)
- Depth
- 8.03" (204 mm)
- Height
- 1.69" (43 mm)
- Weight
- 6.94 lb (3150 g)
What's in the Box
The package includes all necessary components for immediate deployment in either rack-mounted or desktop configurations.
Highlights
- 24 Gigabit Ethernet PoE+ ports with 190W total power budget
- Two SFP expansion slots for fiber connectivity options
- Layer 4 support for advanced traffic classification and bandwidth management
- Smart managed interface with essential network control features
- Rack-mountable 1U form factor with included mounting kit
- Supports comprehensive IEEE networking standards including 802.3at/af PoE
- Built-in power supply ensures stable operation
- Lifetime limited warranty for long-term reliability
- Energy-efficient design compliant with Energy-related Products Directive
- Environmental compliance with REACH, RoHS, and WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GS724TP-300NAS |
| Brand Name | Netgear |
| Product Line | Smart |
| Product Model | GS724TP |
| Product Name | Smart GS724TP Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.1x,IEEE 802.1p,IEEE 802.3az,IEEE 802.3,IEEE 802.11ac,IEEE 802.3at,IEEE 802.3af,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 190 W |
| Power Source | Power Supply |
| Power Consumption | 228.53 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Desktop |
| Height | 1.69" (43 mm) |
| Width | 17.32" (440 mm) |
| Depth | 8.03" (204 mm) |
| Weight (Approximate) | 6.94 lb (3150 g) |
| Miscellaneous | |
| Package Contents | Smart GS724TP Ethernet Switch Power Cord Mounting Kit Rubber Footpads for Tabletop Installation Installation Guide |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the total PoE budget of this switch?
The Netgear GS724TP-300NAS provides a 190W total PoE budget across all 24 ports. This substantial power allocation allows the switch to simultaneously power multiple PoE+ devices such as wireless access points, IP cameras, and VoIP phones while maintaining full Gigabit data throughput for connected devices.
How many SFP expansion slots does this switch have?
This switch includes two SFP (mini-GBIC) expansion slots that support optical fiber connections. These slots enable network administrators to extend connectivity beyond the 100-meter limit of copper cabling or create uplinks to other network segments using fiber optic media for improved performance over longer distances.
What does Layer 4 support provide in this switch?
Layer 4 support enables advanced traffic classification and bandwidth management capabilities based on transport layer information. This allows network administrators to implement quality of service policies, prioritize critical applications, and manage bandwidth allocation for different types of network traffic in multi-tenant or multi-business unit environments.
Is this switch rack-mountable?
Yes, the GS724TP-300NAS features a standard 1U rack-mountable form factor and includes a complete mounting kit for installation in 19-inch server racks. The switch measures 1.69" high, 17.32" wide, and 8.03" deep, making it compatible with standard rack enclosures while also offering rubber footpads for stable desktop placement when rack mounting isn't required.
What management capabilities does this smart managed switch offer?
As a smart managed switch, the GS724TP-300NAS provides essential network control features including VLAN configuration, quality of service settings, port security, and link aggregation. The management interface offers more control than unmanaged switches while remaining more accessible than fully managed enterprise switches, making it ideal for environments needing basic network segmentation and traffic management without advanced networking expertise.
What networking standards does this switch support?
The switch supports comprehensive IEEE networking standards including IEEE 802.3at and 802.3af for PoE/PoE+, IEEE 802.1Q for VLAN tagging, IEEE 802.3ad for link aggregation, IEEE 802.1x for port-based network access control, and IEEE 802.3az for energy-efficient Ethernet. This standards compliance ensures interoperability with a wide range of network devices and infrastructure components.
