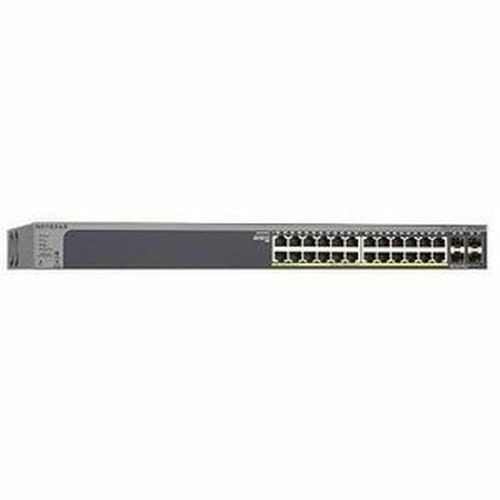

Netgear GS728TP-300NAS ProSafe GS728TP Managed Gigabit Ethernet Switch - 24 Ports with PoE+ - 192W Budget - 4 SFP Slots - Layer 4 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Gigabit Ethernet speeds across all ports, supporting both copper (10/100/1000Base-T) and fiber (1000Base-X) connections for flexible backbone and uplink configurations. The four SFP slots provide dedicated high-speed expansion for fiber optic cabling, extending network reach and bandwidth.
Advanced switching capabilities include comprehensive IEEE standards compliance for Quality of Service (QoS), VLAN tagging (802.1Q), link aggregation (802.3ad), and energy-efficient Ethernet (802.3az). The managed feature set allows for precise traffic shaping, security policies, and network monitoring through web, CLI, or Smart Control Center software.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS728TP delivers a balanced combination of port density, power delivery, and management depth that addresses core challenges in business networking. Its design prioritizes operational reliability and administrative control.
High-Power PoE+ Ready
With a 192W total PoE budget and support for both PoE (802.3af) and PoE+ (802.3at) standards, this switch can power a mix of devices like high-performance wireless access points, pan-tilt-zoom cameras, and VoIP phones without external injectors.
- 192W total budget
- Supports 802.3af & 802.3at
- Powers devices directly over Ethernet
Layer 4 Traffic Control
Beyond basic Layer 2/3 switching, Layer 4 support enables application-aware traffic classification and bandwidth limiting. This is crucial for multi-tenant environments or businesses needing to prioritize critical applications like VoIP or video conferencing.
- Application-based traffic classifiers
- Bandwidth rate limiting
- Multi-tenant traffic isolation
Dual Media Uplink Flexibility
Four SFP slots allow for fiber optic uplinks to network cores or other switches, providing immunity to EMI, longer distance runs, and higher bandwidth potential. This flexibility future-proofs your network backbone.
- Fiber optic connectivity
- Long-distance uplinks
- High-bandwidth aggregation
Deployment / Use Cases
This switch is ideally suited for small to medium business networks, branch offices, and multi-tenant buildings where a combination of wired device connectivity, power delivery, and traffic management is required.
In retail or office environments, it can centralize connectivity for POS systems, desktop computers, and security infrastructure while powering VoIP phones and wireless access points. For education or hospitality deployments, the Layer 4 capabilities help manage bandwidth fairly across different users or departments.
Unified Business Network Hub
Deploy as the main distribution switch in an office, connecting workstations, servers, and network printers while also powering and connecting the entire IP phone system and WiFi infrastructure through PoE.
Secure Multi-Tenant Building Backbone
Use in apartment buildings, co-working spaces, or retail plazas to provide isolated network segments for different tenants with controlled bandwidth allocations and advanced security policies.
Physical Profile
The switch features a standard 1U rack-mountable metal chassis measuring 1.73 inches in height, 17.32 inches in width, and 10.12 inches in depth. This compact form factor fits seamlessly into most server racks and network cabinets. The included rack-mounting kit facilitates secure installation, while the 8.22-pound weight ensures stable placement without excessive bulk.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 17.32" (440 mm), 10.12" (257 mm), 8.22 lb (3730 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.32" (440 mm)
- Depth
- 10.12" (257 mm)
- Height
- 1.73" (44 mm)
- Weight
- 8.22 lb (3730 g)
What's in the Box
The package includes all essential components for immediate deployment and management.
Highlights
- 24 Gigabit Ethernet ports with mixed PoE/PoE+ support
- 192W total PoE budget for powering multiple devices
- Four SFP slots for fiber optic uplink expansion
- Layer 4 switching for application-aware traffic management
- Full web, CLI, and Smart Control Center management
- Rack-mountable 1U form factor for professional installation
- Comprehensive IEEE standards support including 802.3at/af PoE
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GS728TP-300NAS |
| Brand Name | Netgear |
| Product Line | ProSafe |
| Product Model | GS728TP |
| Product Name | ProSafe GS728TP Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE,4 x Gigabit Ethernet Expansion Slot,8 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.3az,IEEE 802.3af,IEEE 802.3at,IEEE 802.1x,IEEE 802.1p,IEEE 802.3,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3ad,IEEE 802.1ab,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 192 W |
| Power Source | Power Supply |
| Power Consumption | 264 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 10.12" (257 mm) |
| Weight (Approximate) | 8.22 lb (3730 g) |
| Miscellaneous | |
| Package Contents | ProSafe GS728TP Ethernet Switch Power Cord Rack-Mounting Kit Resource CD with Links to Online Documentation, Installation Guides, Web-Management User Manual, Smart Control Center (SCC) Software and User Guide. |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the total PoE budget of the Netgear GS728TP switch?
The Netgear ProSafe GS728TP provides a total PoE budget of 192 watts. This budget is shared across the PoE and PoE+ capable ports, allowing you to power a combination of devices such as IP phones, wireless access points, and security cameras directly from the switch without needing separate power adapters for each device.
How many SFP uplink slots does this switch have?
This switch includes four dedicated SFP (Small Form-factor Pluggable) slots. These slots support fiber optic transceivers for high-speed uplinks to other switches or network cores, enabling longer distance connections and immunity to electromagnetic interference compared to standard copper cabling.
What does Layer 4 support mean for this managed switch?
Layer 4 support refers to the switch's ability to inspect and manage traffic based on transport layer information, such as TCP/UDP port numbers. This enables advanced features like application-aware traffic classification, bandwidth rate limiting per application or user, and more granular Quality of Service (QoS) policies beyond simple port or MAC address rules.
Is this switch rack-mountable, and what are its dimensions?
Yes, the Netgear GS728TP is designed for rack mounting with a standard 1U height. Its dimensions are 1.73 inches in height, 17.32 inches in width, and 10.12 inches in depth (44 x 440 x 257 mm). The package includes a rack-mounting kit for secure installation in standard server racks or network cabinets.
What types of network cables and media does this switch support?
The switch supports both twisted pair copper cabling (Cat5e/Cat6/Cat6a) for its 24 RJ-45 ports and optical fiber cabling through its four SFP slots. This dual-media support provides flexibility for connecting desktop devices over copper while using fiber for longer-distance or higher-bandwidth uplink connections to other network equipment.
What management options are available for the GS728TP switch?
The GS728TP is a fully managed switch offering multiple administration methods. You can manage it via a web-based graphical interface, command-line interface (CLI), or Netgear's Smart Control Center (SCC) software for centralized management of multiple switches. These tools provide configuration for VLANs, QoS, security, monitoring, and firmware updates.
