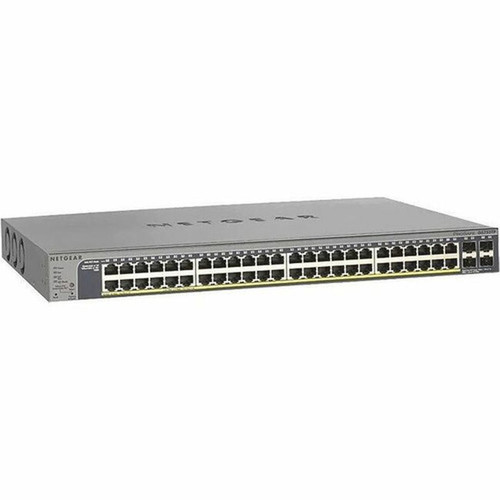

Netgear GS752TP-300NAS ProSafe 48-Port Gigabit PoE+ Managed Switch - 4 SFP Slots - Layer 3 - 380W PoE Budget - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch delivers full Gigabit Ethernet performance across all 48 RJ-45 ports, supporting auto-negotiation for 10/100/1000Base-TX connections and backward compatibility with existing network infrastructure. The four dedicated SFP (mini-GBIC) expansion slots enable fiber optic uplinks or long-distance connections using 1000Base-X technology, providing flexibility for network backbone integration or linking to remote segments.
Power over Ethernet Plus (PoE+) compliance according to IEEE 802.3at standards allows the switch to deliver up to 30W per port, with a total PoE budget of 380W to support multiple powered devices simultaneously. The integrated power supply operates at 512.80W maximum consumption, ensuring stable operation under full load conditions.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS752TP distinguishes itself through its balanced combination of high port density, substantial PoE capacity, and manageable feature set at the Layer 3 level. This enables network administrators to implement VLANs, quality of service (QoS) policies, and access control lists without requiring a separate routing device for inter-VLAN traffic.
Scalable Connectivity
Forty-eight Gigabit PoE+ ports accommodate numerous wired devices while four SFP slots provide uplink options for fiber or copper connections, supporting network expansion as business needs grow.
- 48 RJ-45 ports with PoE+
- 4 SFP expansion slots
- Uplink port for cascading
Advanced Management
Smart managed capabilities through web interface, CLI, or Netgear Smart Control Center software offer granular control over network traffic, security settings, and device monitoring.
- Layer 3 switching support
- IEEE 802.1x authentication
- Energy Efficient Ethernet (EEE)
Deployment Ready
Rack-mountable design with included mounting hardware and comprehensive documentation ensures professional installation in server rooms, wiring closets, or network racks.
- 1U rack height
- Lifetime warranty
- Complete installation kit
Deployment / Use Cases
The Netgear GS752TP is ideally suited for medium-sized business networks where centralized switching, PoE device support, and basic routing capabilities are required. Its 48-port configuration makes it particularly valuable in office environments with numerous wired workstations, IP telephony systems, and wireless access points that benefit from both data connectivity and power delivery through a single cable.
Educational institutions can deploy this switch in computer labs or administrative areas to support multiple devices while maintaining separate network segments for different user groups. Retail locations with point-of-sale systems, security cameras, and digital signage benefit from the PoE capabilities that eliminate separate power adapters for each device. The Layer 3 functionality allows for creating distinct VLANs for guest networks, employee access, and management traffic without investing in additional routing hardware.
Office Network Core
Serve as the central switch for departments with high device density, providing PoE to VoIP phones and wireless access points while managing traffic between different network segments.
Surveillance & Security
Power and connect multiple IP cameras through PoE+ while using VLANs to isolate surveillance traffic from the main business network for security and performance.
Physical Profile
Designed for standard 19-inch rack installation, the GS752TP occupies a single rack unit (1U) with dimensions of 1.69 inches in height, 17.32 inches in width, and 12.44 inches in depth. The compact form factor maximizes port density within limited rack space while maintaining adequate airflow for thermal management. The steel construction and included rack-mounting kit ensure secure installation in server cabinets or network enclosures, with front-accessible ports and status indicators for easy monitoring during operation.
- Width
- 17.32" (440 mm)
- Depth
- 12.44" (316 mm)
- Height
- 1.69" (43 mm)
- Weight
- 11.24 lb (5100 g)
What's in the Box
The switch ships with all necessary components for immediate deployment and management.
Highlights
- 48 Gigabit Ethernet ports with PoE+ support for connecting multiple devices
- 380W total PoE budget to power IP phones, cameras, and access points
- 4 SFP (mini-GBIC) slots for fiber optic or long-distance copper uplinks
- Layer 3 switching capabilities for inter-VLAN routing and advanced traffic management
- Smart managed features through web interface, CLI, or SCC software
- Rack-mountable 1U form factor for professional installation in server cabinets
- Supports IEEE 802.3at (PoE+), 802.3az (Energy Efficient Ethernet), and 802.1x authentication
- Lifetime warranty from Netgear for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GS752TP-300NAS |
| Brand Name | Netgear |
| Product Line | ProSafe |
| Product Model | GS752TP |
| Product Name | ProSafe GS752TP Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3at,IEEE 802.3az,IEEE 802.1x,IEEE 802.1p |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 380 W |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 512.80 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.69" (43 mm) |
| Width | 17.32" (440 mm) |
| Depth | 12.44" (316 mm) |
| Weight (Approximate) | 11.24 lb (5100 g) |
| Miscellaneous | |
| Package Contents | ProSafe GS752TP Ethernet Switch Power cord Rack-mounting kit Resource CD with links to online documentation Installation guides Web-management user manual Smart Control Center (SCC) software and user guide |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many devices can this switch power simultaneously with PoE?
The GS752TP has a total PoE budget of 380W, which can support multiple PoE+ devices simultaneously. Each PoE+ port can deliver up to 30W according to IEEE 802.3at standards. The actual number of devices depends on their individual power requirements—for example, it could power approximately 12-15 typical IP phones (each drawing ~7W) or 6-8 wireless access points (each drawing ~15-20W) while staying within the total power budget.
What are the benefits of Layer 3 support in this switch?
Layer 3 support enables the switch to perform basic routing functions between different network segments or VLANs without requiring a separate router. This allows for improved network performance by keeping inter-VLAN traffic local to the switch, reduces latency compared to routing through an external device, and provides more flexible network design options. Administrators can implement access control lists, quality of service policies, and other routing features directly on the switch.
Can I use fiber optic connections with this switch?
Yes, the GS752TP includes four SFP (mini-GBIC) slots that support fiber optic transceivers for 1000Base-X connections. These slots allow you to connect the switch to fiber optic network backbones, extend connections beyond the 100-meter limit of copper Ethernet, or link to other switches using fiber for electrical isolation and noise immunity. You would need to purchase compatible SFP transceivers separately based on your fiber type (multimode or singlemode) and distance requirements.
Is this switch stackable with other Netgear switches?
No, the GS752TP does not include dedicated stacking ports or support for switch stacking technology. However, you can cascade multiple switches together using standard Ethernet ports or SFP uplinks to expand your network. The switch does include an uplink port that facilitates cascading to other network devices, and the four SFP slots provide additional options for connecting to other switches in your network topology.
What management options are available for this switch?
The GS752TP offers smart managed capabilities through multiple interfaces: a web-based graphical interface for browser access, command-line interface (CLI) for advanced configuration, and Netgear's Smart Control Center (SCC) software for centralized management of multiple switches. These tools allow configuration of VLANs, quality of service, port security, PoE settings, and monitoring of switch status and traffic statistics. The included resource CD provides links to online documentation and user manuals.
What is included in the rack-mounting kit?
The rack-mounting kit includes all necessary hardware for installing the switch in a standard 19-inch server rack or cabinet. This typically consists of two rack ears that attach to the sides of the switch and the appropriate screws for securing the switch to the rack rails. The compact 1U height allows the switch to occupy minimal vertical space in your rack while providing access to all 48 front-panel ports and status indicators for easy monitoring and cable management.
