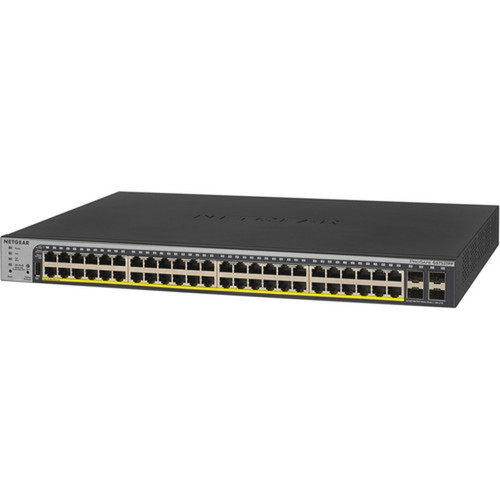

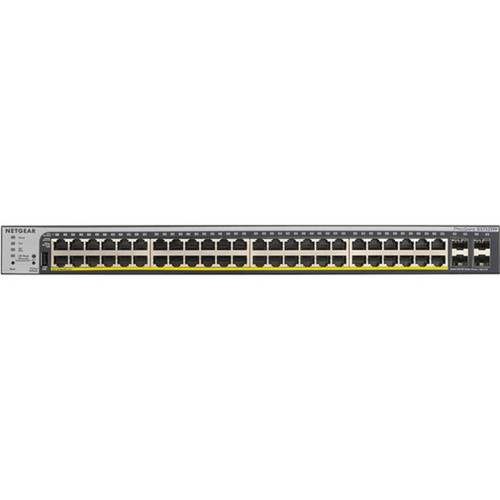

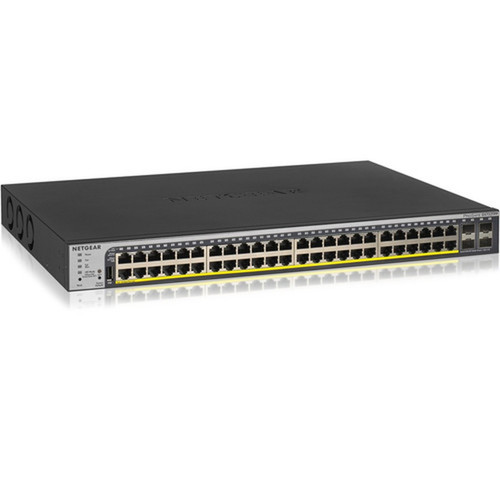

Netgear GS752TPP-300NAS Gigabit PoE+ Smart Managed Switch - 48 Ports - 4 SFP Slots - 760W PoE Budget - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a Layer 2 managed device with Gigabit Ethernet technology, supporting 10/100/1000Base-TX and 1000Base-X network standards. It features 48 Gigabit Ethernet PoE+ ports and four Gigabit Ethernet expansion slots for SFP modules, accommodating both twisted pair and optical fiber media types.
The switch supports a comprehensive set of networking standards, including IEEE 802.3at for PoE+, IEEE 802.1Q for VLANs, IEEE 802.1x for port authentication, and IEEE 802.3az for energy efficiency. Its smart management interface enables configuration of advanced features like QoS, ACLs, and multicast optimization.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS752TPP-300NAS stands out with its high port density and powerful PoE capabilities, making it ideal for environments requiring extensive device connectivity and power delivery. Its smart management features provide granular control over network traffic, security, and power allocation.
Advanced PoE Management
Offers per-port PoE controls with scheduling capabilities, allowing remote power management for connected devices like APs, cameras, and IoT endpoints.
- 760W total PoE budget
- Per-port enable/disable
- Operation scheduling
Enhanced Security & QoS
Includes Layer 2/3/4 access control lists, 802.1x authentication, auto DoS prevention, and advanced QoS with port-based, 802.1p, and DSCP-based prioritization.
- ACLs for granular access
- Dynamic ARP inspection
- Traffic prioritization
Deployment / Use Cases
This switch is well-suited for medium to large business networks where high-density connectivity and PoE power are essential. Its 48 PoE+ ports can support extensive deployments of wireless access points, security cameras, and VoIP systems across office floors, retail spaces, or educational campuses.
The four SFP slots enable fiber uplinks to core switches or connections to remote buildings, making it effective for distributed network architectures. The rack-mountable design and lifetime warranty ensure reliable operation in server rooms or network closets.
Office & Campus Networks
Provides connectivity for workstations, printers, and PoE devices while offering management features for network segmentation and traffic control.
Security & Surveillance
Powers and connects multiple IP cameras with PoE, supported by QoS for video traffic and security features like port authentication.
Physical Profile
The switch features a compact 1U rack-mountable form factor with dimensions of 1.70 inches in height, 17.30 inches in width, and 12.20 inches in depth. Weighing 11.08 pounds, it is designed for easy installation in standard server racks. The package includes brackets and screws for rack mounting, along with rubber footpads for tabletop use if needed.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.70" (43.18 mm), 17.30" (439.42 mm), 12.20" (309.88 mm), 11.08 lb (5025.80 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.30" (439.42 mm)
- Depth
- 12.20" (309.88 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 11.08 lb (5025.80 g)
What's in the Box
The switch comes with all necessary components for installation and operation.
Highlights
- 48 Gigabit Ethernet PoE+ ports for high-density connectivity
- 760W total PoE budget to power multiple devices simultaneously
- 4 SFP slots for fiber uplinks or expansion
- Smart managed with remote and cloud management capabilities
- Layer 2 switching with advanced VLAN and QoS support
- Rack-mountable 1U form factor for server cabinet installation
- Comprehensive networking standards including IEEE 802.3at and 802.1Q
- Lifetime warranty for long-term reliability
- Includes rack mounting hardware and tabletop footpads
- Advanced security features like ACLs and 802.1x authentication
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GS752TPP-300NAS |
| Brand Name | Netgear |
| Product Model | GS752TPP |
| Product Name | Gigabit PoE+ Smart Switches with Remote/Cloud Management |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x,IEEE 802.1p,IEEE 802.3az,IEEE 802.3at,IEEE 802.11ac,IEEE 802.1Q,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ab,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 760 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC,PoE+ |
| Power Consumption | 861 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 12.20" (309.88 mm) |
| Weight (Approximate) | 11.08 lb (5025.80 g) |
| Miscellaneous | |
| Package Contents | Gigabit PoE+ Smart Switches with Remote/Cloud Management AC Power Cord With C13 Connector (Localized To Region Of Sale) Brackets And Screws For Rack Mounting Rubber Footpads For Tabletop Installation Rubber Protection Caps, Which Are Already Installed In The Sfp Sockets Installation Guide |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many PoE+ ports does this Netgear switch have?
The Netgear GS752TPP-300NAS has 48 Gigabit Ethernet ports that all support Power over Ethernet Plus (PoE+). This allows each port to deliver both data and up to 30W of power per port to connected devices such as wireless access points, IP cameras, and VoIP phones, with a total PoE budget of 760W for the entire switch.
What is the PoE budget of this switch and why is it important?
This switch has a PoE budget of 760 watts. The PoE budget is crucial because it determines how many PoE devices you can power simultaneously. With 760W, you can support multiple high-power devices across the 48 ports, ensuring reliable power delivery for endpoints like 802.11ac access points or pan-tilt-zoom cameras without overloading the switch.
Does this switch support fiber connectivity?
Yes, the switch includes four SFP (Small Form-factor Pluggable) slots for fiber connectivity. These slots allow you to add SFP modules for Gigabit fiber uplinks to other switches or to connect to fiber backbone networks. This provides flexibility for extending network reach or improving performance with fiber optic cables.
What management features does this smart managed switch offer?
As a smart managed switch, it offers remote and cloud management capabilities, allowing administrators to configure and monitor the switch from anywhere. Key management features include VLAN setup, Quality of Service (QoS) for traffic prioritization, access control lists (ACLs) for security, PoE management per port, and support for protocols like IGMP snooping for multicast optimization.
Is this switch rack-mountable and what are its dimensions?
Yes, the switch is designed for rack mounting with a standard 1U form factor. Its dimensions are 1.70 inches in height, 17.30 inches in width, and 12.20 inches in depth. The package includes all necessary brackets and screws for installation in a server rack, and it also comes with rubber footpads if you prefer to use it on a desktop or shelf.
What networking standards does this switch comply with?
The switch complies with a wide range of IEEE networking standards, including IEEE 802.3at for PoE+, IEEE 802.1Q for VLAN tagging, IEEE 802.1x for port-based authentication, IEEE 802.3az for energy efficiency, and IEEE 802.3af for basic PoE. These standards ensure interoperability with other network devices and support for advanced features like security, power management, and traffic control.
