Netgear MS108UP-100NAS 8-Port Ultra60 PoE++ Multi-Gigabit (2. 5G) Ethernet Plus Switch - 230W PoE Budget - Layer 3 - Desktop/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, providing basic routing capabilities alongside traditional switching functions. It supports 2.5 Gigabit Ethernet (2.5GBase-T) across all eight ports, allowing devices to connect at either 1G or 2.5G speeds automatically based on their capabilities. The switch is unmanaged, requiring no software configuration or ongoing management, making it suitable for deployments where simplicity and reliability are priorities.
Power efficiency is built into the design with Energy Efficient Ethernet (IEEE 802.3az) support, reducing power consumption during periods of low data activity. The switch operates on 54V input voltage with a single power supply, consuming approximately 270.50W under full load. Its comprehensive networking standards compliance includes IEEE 802.3, 802.3ab, 802.3u, 802.1p, 802.3az, 802.3ad, 802.1Q, 802.3x, 802.3af, 802.3at, and 802.3bt for broad compatibility with existing network infrastructure.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MS108UP-100NAS combines high-speed connectivity with robust power delivery in a compact form factor. Its PoE Auto-Balance technology represents a significant advancement in power management, automatically adjusting power delivery to match connected device requirements at the most granular level, independent of detected PoE class. This ensures optimal power utilization while protecting connected devices from over- or under-powering.
Simplified Deployment
With no software configuration required, this switch can be deployed immediately out of the box. Per-port LEDs provide clear visual indicators for port activity and speed status, while the included wall installation kit and rubber feet offer flexible mounting options for desktop or wall placement.
- Zero-configuration setup
- Visual status indicators
- Multiple mounting options
Silent Operation
The fanless design ensures completely silent operation, making this switch suitable for noise-sensitive environments like offices, classrooms, or residential settings where traditional cooling fans would be disruptive.
- No moving parts
- Zero acoustic noise
- Reduced maintenance
Deployment / Use Cases
This switch is particularly well-suited for small to medium business environments requiring both high-speed connectivity and power delivery for networked devices. Its 2.5G Multi-Gigabit ports provide sufficient bandwidth for modern workstations, NAS devices, and high-resolution video streaming, while the substantial PoE budget supports power-hungry devices like PTZ cameras, high-performance access points, and digital signage displays.
In retail environments, the switch can power and connect multiple security cameras, point-of-sale systems, and inventory management devices. For educational institutions, it provides reliable connectivity for classroom technology while powering interactive displays and wireless access points. The compact size and wall-mount capability make it ideal for space-constrained installations such as network closets, retail kiosks, or conference rooms where rack space is limited.
Small Office Networking
Connect computers, printers, and VoIP phones while powering wireless access points and security cameras from a single, compact switch.
- Mixed device support
- Power and data consolidation
- Space-efficient design
IP Surveillance Systems
Power multiple high-resolution IP cameras with PoE++ support while providing sufficient bandwidth for high-quality video streaming to recording servers.
- High-power camera support
- Video bandwidth optimization
- Centralized power management

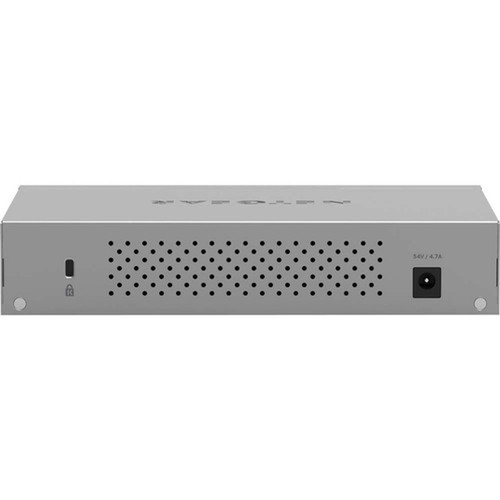

Physical Profile
The switch features a durable metal construction in gray and blue finish, measuring 8.27 inches wide, 5.51 inches deep, and 1.57 inches high. At just under two pounds, it's lightweight yet robust enough for commercial deployment. The compact footprint allows for flexible placement on desktops, shelves, or mounted directly to walls using the included installation kit. Rubber feet prevent sliding on smooth surfaces, while ventilation slots ensure adequate passive cooling without requiring fans.
- Width
- 8.27" (210 mm)
- Depth
- 5.51" (140 mm)
- Height
- 1.57" (40 mm)
- Weight
- 1.98 lb (900 g)
What's in the Box
The package includes everything needed for immediate deployment and installation.
Highlights
- 8 Multi-Gigabit Ethernet ports with 2.5G speeds
- 230W total PoE budget with IEEE 802.3bt support
- PoE Auto-Balance technology for optimized power delivery
- Layer 3 switching with basic routing capabilities
- Fanless, silent operation for noise-sensitive environments
- Energy Efficient Ethernet (IEEE 802.3az) for power savings
- Non-blocking switching architecture for wire-speed throughput
- Desktop or wall-mountable metal construction
- Zero-configuration setup with no management required
- Lifetime warranty with 24/7 technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | MS108UP-100NAS |
| Brand Name | Netgear |
| Product Model | MS108UP |
| Product Name | 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE++ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Technology | 2.5GBase-T |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.1p,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1Q,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 230 W |
| Input Voltage | 54 V |
| Power Source | Power Adapter |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 270.50 W |
| Physical Characteristics | |
| Product Color | Gray,Blue |
| Product Material | Metal |
| Form Factor | Wall Mountable,Desktop |
| Height | 1.57" (40 mm) |
| Width | 8.27" (210 mm) |
| Depth | 5.51" (140 mm) |
| Weight (Approximate) | 1.98 lb (900 g) |
| Miscellaneous | |
| Package Contents | 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Detachable Power Cable Power Adapter Wall Installation Kit Rubber Feet Installation Guide |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the total PoE budget of this switch?
The Netgear MS108UP-100NAS provides a 230W total Power over Ethernet budget distributed across all eight ports. This substantial power allocation supports demanding PoE++ devices, with ports 1-4 capable of delivering up to 60W each using IEEE 802.3bt standard, while ports 5-8 support up to 30W each using IEEE 802.3at standard.
Does this switch support 2.5G Multi-Gigabit Ethernet?
Yes, all eight ports support 2.5 Gigabit Ethernet (2.5GBase-T) technology. The switch automatically negotiates the optimal speed with connected devices, supporting both 1G and 2.5G connections. This provides sufficient bandwidth for high-speed workstations, NAS devices, and modern access points without requiring infrastructure upgrades.
Is this a managed or unmanaged switch?
This is an unmanaged switch that requires no software configuration or ongoing management. It operates with zero-configuration setup, making it ideal for deployments where simplicity and reliability are priorities. The switch includes per-port LEDs for activity and speed status monitoring but does not offer web management, SNMP, or VLAN configuration capabilities.
What Layer does this switch operate at?
The MS108UP-100NAS operates at Layer 3, providing basic routing functionality alongside traditional switching capabilities. This enables inter-VLAN routing and basic IP routing between different network segments, offering more advanced networking features than standard Layer 2 switches while maintaining straightforward operation.
Can this switch be wall-mounted?
Yes, the switch includes a wall installation kit for secure mounting. Its compact dimensions of 8.27" × 5.51" × 1.57" and lightweight metal construction make it suitable for wall, desktop, or shelf placement. Rubber feet are included for desktop use, while the wall mounting kit provides hardware for secure installation in network closets or space-constrained locations.
What warranty coverage does this switch include?
Netgear provides a lifetime warranty for this switch, covering defects in materials and workmanship for the product's lifetime. The warranty is supported by 24/7 chat technical assistance, ensuring professional support is available whenever needed. This comprehensive coverage reflects the product's commercial-grade construction and reliability expectations.
