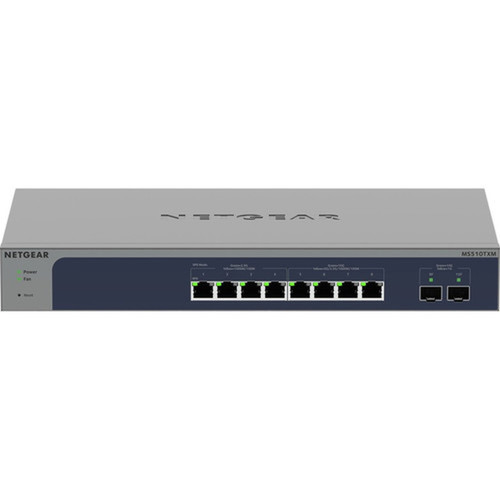

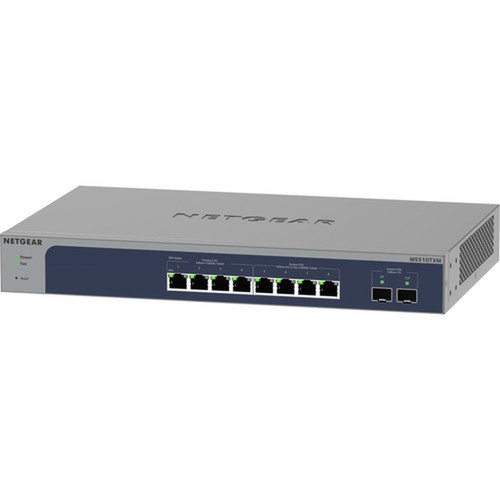

Netgear MS510TXM-100NAS 8-Port Multi-Gig Smart Managed Switch - 4 x 2.5GbE + 4 x 10GbE + 2xSFP+ - Layer 3 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The MS510TXM operates as a Layer 3 switch, enabling advanced routing functions for scalable network designs. The port architecture combines 2.5GbE and 10GbE technologies across eight copper ports, supporting 1000Base-T and 10GBase-X network standards. Two SFP+ expansion slots provide fiber connectivity options for long-distance uplinks or backbone connections.
Smart managed capabilities include VLAN configuration, QoS prioritization, and network monitoring tools. The switch consumes 47 watts under typical operation and includes a built-in power supply for reliable voltage delivery. Environmental certifications include CEC compliance and adherence to REACH and Battery Directive standards.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch delivers a future-ready port mix that bridges current 1GbE infrastructure with emerging multi-gigabit requirements. The combination of 2.5GbE and 10GbE ports allows gradual network upgrades without complete infrastructure overhaul.
Flexible Connectivity
Support for both copper and fiber media enables deployment across diverse cable plant environments, from cost-effective twisted pair to long-distance fiber optic runs.
- 4x2.5GbE + 4x10GbE copper ports
- 2xSFP+ fiber uplink slots
- Twisted pair and optical fiber media
Professional Management
Smart managed features provide enterprise-level control without complex CLI requirements, making it accessible for IT teams of varying expertise levels.
- Layer 3 routing capabilities
- VLAN and QoS configuration
- Network monitoring tools
Deployment Versatility
Rack-mountable design with included mounting kit and rubber footpads for tabletop installation ensures the switch fits both data center and office environments.
- 1U rack-mountable form factor
- Desktop installation option
- Professional cable management
Deployment / Use Cases
The MS510TXM excels in environments requiring mixed-speed connectivity and network segmentation. Its Layer 3 capabilities make it suitable for inter-VLAN routing in small to medium business networks, while the multi-gigabit ports support bandwidth-intensive applications.
Common deployment scenarios include connecting high-performance workstations and servers in creative or engineering environments, serving as an aggregation switch for access layer devices, or providing fiber uplinks to core network infrastructure. The switch's moderate power consumption and compact form factor make it appropriate for space-constrained server rooms or network closets.
Office Network Core
Serve as the central switch for modern offices with mixed device speeds, connecting 1GbE legacy devices alongside 2.5GbE and 10GbE workstations and servers.
Server Room Aggregation
Aggregate multiple access switches with 10GbE uplinks while providing SFP+ fiber connections to core networking equipment for scalable infrastructure growth.
Physical Profile
The switch features a compact 1U form factor measuring 1.69 inches in height, 12.99 inches in width, and 8.11 inches in depth. This slim profile maximizes rack space efficiency while providing adequate ventilation for thermal management. The 4.59-pound weight ensures stable mounting without excessive load on rack rails. The design includes both rack-mount ears for standard 19-inch racks and rubber footpads for secure tabletop placement, offering installation flexibility for different environments.
- Width
- 12.99" (330 mm)
- Depth
- 8.11" (206 mm)
- Height
- 1.69" (43 mm)
- Weight
- 4.59 lb (2080 g)
What's in the Box
The package includes all necessary components for immediate deployment in either rack-mounted or desktop configurations.
Highlights
- 8-port configuration with 4x2.5GbE and 4x10GbE copper ports
- Two SFP+ fiber uplink slots for expansion and backbone connections
- Layer 3 routing support for scalable network designs
- Smart managed interface with VLAN and QoS configuration
- Rack-mountable 1U form factor with desktop installation option
- Supports both twisted pair and optical fiber media types
- 47W power consumption with built-in power supply
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | MS510TXM-100NAS |
| Brand Name | Netgear |
| Product Model | MS510TXM |
| Product Name | MS510TXM Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 4 x 2.5 Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Network,2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | 2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 47 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Desktop |
| Height | 1.69" (43 mm) |
| Width | 12.99" (330 mm) |
| Depth | 8.11" (206 mm) |
| Weight (Approximate) | 4.59 lb (2080 g) |
| Miscellaneous | |
| Package Contents | MS510TXM Ethernet Switch Power Cord Mounting Kit Rubber Footpads For Tabletop Installation Quick Installation Guide |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Battery Directive |
| Country of Origin | Thailand |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of ports does this switch include?
The Netgear MS510TXM includes eight copper network ports: four 2.5 Gigabit Ethernet ports and four 10 Gigabit Ethernet ports. Additionally, it features two SFP+ expansion slots for fiber optic connections. This mixed-port configuration supports both current multi-gigabit devices and future high-speed requirements while maintaining backward compatibility with existing network infrastructure.
What does Layer 3 support mean for this switch?
Layer 3 support enables the switch to perform basic routing functions between different network segments or VLANs. This allows for more efficient network traffic flow without requiring a separate dedicated router for inter-VLAN communication. The Layer 3 capability supports scalable network designs where segmentation and traffic management are important for performance and security.
Can this switch be mounted in a standard server rack?
Yes, the MS510TXM is designed for rack mounting in standard 19-inch server racks. It has a 1U form factor measuring 1.69 inches in height, and the package includes a mounting kit with the necessary hardware. The switch can also be placed on a desktop using the included rubber footpads, providing flexibility for different installation environments.
What management features does the smart managed interface provide?
The smart managed interface offers web-based configuration tools for VLAN setup, Quality of Service (QoS) prioritization, port configuration, and network monitoring. This management level provides more control than unmanaged switches while being more accessible than fully managed switches with complex command-line interfaces. It's suitable for IT administrators who need configuration flexibility without extensive networking expertise.
What types of cables can I use with this switch?
The switch supports both twisted pair copper cables (Cat5e/Cat6/Cat6a) for the eight copper ports and optical fiber cables for the two SFP+ slots. This dual-media support allows deployment in environments with mixed cable infrastructure, enabling cost-effective copper connections for shorter runs and fiber for longer distances or higher bandwidth requirements between network segments.
What is included in the warranty for this switch?
Netgear provides a lifetime limited warranty for the MS510TXM switch. This warranty covers defects in materials and workmanship for the product's lifetime, offering long-term reliability assurance. The switch also carries environmental certifications including CEC compliance and meets REACH and Battery Directive standards for responsible manufacturing and materials usage.
