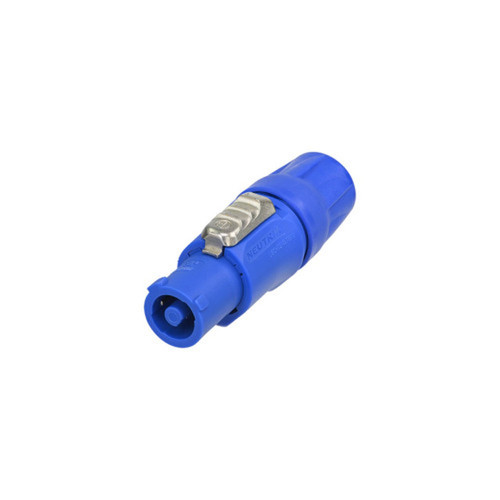

Neutrik 3 Pole AC Power-in Cable Connector Blue FN-NT-NAC3FCA
SKU:
FN-NT-NAC3FCA
(No reviews)
Write a Review
Write a Review
Fleet Network
Neutrik 3 Pole AC Power-in Cable Connector Blue FN-NT-NAC3FCA
$16.40
$16.00
Warranty Information:
Covered by Manufacturer
Condition:
New
Width:
0.02
(cm)
Height:
0.02
(cm)
Depth:
0.02
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
This locking 3 conductor equipment AC connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
| Physical Characteristics | |
|---|---|
| Color | Blue |
| Temperature Range | -30? to +80? |
| Contact Plating | 4 µm Ag |
| Contacts | Bronze |
| Insert | Polyamide |
| Locking Element | Zinc Diecast |
| Shell | Polyamide |
| Strain Relief | Polyacetal |
| Gender | Female |
| Electrical Characteristics | |
| Contact Resistance | ? 3 m? |
| Dielectric Strength | 4 kVdc / 2.8 kVac |
| Insulation Resistance | > 0.1 G? (after damp heat test IEC 68-2-30) |
| Number of Electronical Contacts | 2 + PE |
| Rated Current Per Contact | 20 A rms |
| Rated Voltage | 250 V ac |
| Mechanical Characteristics | |
| Cable O.D. | 6 - 15 mm 6 - 15 mm (Cable O.D. range limited to 6 mm - 14 mm acc. VDE) |
| Lifetime | > 1000 mating cycles |
| Wire size | 2,5 mm² 12 AWG |
| Locking Device | Quick Lock |
| Approvals | |
| UL, cUL, SEV | Yes |
| Certifications | |
| VDE | Yes |
| Manufacturer Information | |
| Neutrik Part Number | NAC3FCA |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
