sale

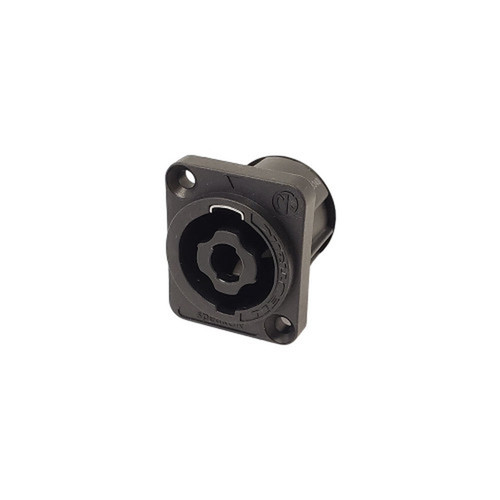

Neutrik speakON 4 Pole Male Solder D-Cut Connector Robust Speaker Termination To FN-NT-NL4MPXX
SKU:
FN-NT-NL4MPXX
(No reviews)
Write a Review
Write a Review
Fleet Network
Neutrik speakON 4 Pole Male Solder D-Cut Connector Robust Speaker Termination To FN-NT-NL4MPXX
MSRP:
$5.95
$5.95
$4.95
Save:
$1.00 (16.81%)
Warranty Information:
Covered by Manufacturer
Condition:
New
Width:
1.00
(cm)
Height:
1.00
(cm)
Depth:
1.00
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
This connector is typically used as the standard chassis connectors for loudspeaker/amplifier interconnections. They feature a unique metal locking system, making contact once fully locked. They are versatile, robust and easy to terminate.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Type | speakON |
| Temperature Range | -30℃ to +80℃ |
| Contact Plating | Ag |
| Contacts | Copper Alloy |
| Shell | Polyamide (PA 6.6) |
| Locking Element | Stainless Steel |
| Gender | Male |
| Electrical Characteristics | |
| Contact Resistance | ? 2 mΩ |
| Dielectric Strength | 2.8 kVdc (peak) |
| Insulation Resistance | > 1 GΩ (after damp heat) |
| Rated Current Per Contact | 25 A rms continuous (audio rating significantly higher, depending on signal) |
| Rated Voltage | 250 V ac |
| Mechanical Characteristics | |
| Lifetime | > 5000 mating cycles |
| Locking Device | Quick Lock |
| Chassis Shape | D |
| Layout | Standard Hole Position, Thru Holes |
| Environmental | |
| Flammability | UL 94 V-0 |
| Manufacturer Information | |
| Neutrik Part Number | NL4MPXX |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
Spec Sheets
Volume Discounts
| Qty | Price | Available |
|---|
Neutrik speakON 4 Pole Male Solder D-Cut Connector Robust Speaker Termination To FN-NT-NL4MPXX
MSRP:
$5.95
$5.95
$4.95
Save:
$1.00 (16.81%)
Available & Ready to Ship
