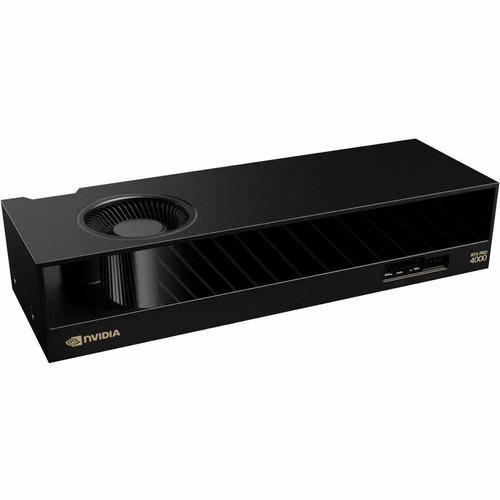

NVIDIA 900-5G195-2501-000 RTX PRO 4000 Graphic Card - 24 GB GDDR7 - Half-height - PCIe 5.0 x 8 - 4x DisplayPort
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This graphics card features 8960 CUDA cores and supports modern APIs including DirectX 12, OpenGL 4.6, Vulkan 1.4, and OpenCL 3.0. The inclusion of ray tracing, ECC memory, and CUDA technology enables accurate rendering and reliable computation for professional workflows.
The card supports up to four monitors simultaneously with a maximum digital display resolution of 7680 x 4320. It includes four DisplayPort outputs and four Mini DisplayPort outputs for flexible multi-display configurations.
Relevant factors for this section include API Supported, Number of Monitors Supported, Maximum Digital Display Resolution, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The half-height form factor makes this card suitable for small form factor workstations and space-constrained environments without compromising professional capabilities. The active cooling system maintains optimal thermal performance during extended operation.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Professional Memory Configuration, Modern Connectivity.
Professional Memory Configuration
24 GB of GDDR7 memory with ECC support ensures data integrity for critical visualization and computational tasks.
- 192-bit bus width
- 432 GB/s bandwidth
- Error correction for reliability
Modern Connectivity
PCIe 5.0 x8 interface provides high bandwidth for data-intensive applications, while multiple DisplayPort outputs support complex multi-monitor setups.
- Four simultaneous displays
- 8K resolution support
- Backward compatible with PCIe 4.0
Deployment / Use Cases
This graphics card is designed for professional visualization workstations used in engineering, architectural design, medical imaging, and scientific research. The combination of high memory capacity and compute performance makes it suitable for GPU-accelerated applications.
The small form factor design allows deployment in compact workstation chassis commonly found in office environments, labs, and field deployment scenarios where space optimization is important.
Relevant factors for this section include API Supported, Number of Monitors Supported, Maximum Digital Display Resolution, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
CAD & Engineering Visualization
Handle complex 3D models and simulations with the card's substantial memory and CUDA core count.
Content Creation & Media Production
Accelerate video editing, 3D rendering, and visual effects workflows with hardware-accelerated ray tracing and AI capabilities.
Physical Profile
The half-height design measures 6.60 inches (167.64 mm) in length and requires dual slot space for installation. The active cooler maintains thermal performance while operating within a 70-watt power envelope. The card includes a single 16-pin power connector for clean power delivery.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: Half-height, 192 bit. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 192 bit
- Height
- Half-height
- Length
- Half-length
Highlights
- 24 GB GDDR7 memory with 192-bit bus for professional workloads
- PCI Express 5.0 x8 interface for high-bandwidth data transfer
- Half-height form factor suitable for small form factor systems
- Supports up to four monitors with 7680 x 4320 maximum resolution
- 8960 CUDA cores for parallel processing performance
- Ray tracing, ECC memory, and CUDA technology support
- DirectX 12, OpenGL 4.6, Vulkan 1.4, and OpenCL 3.0 API support
- Active cooling system for sustained performance
- 70-watt power consumption with 16-pin connector
- PC platform compatibility for workstation deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | 900-5G195-2501-000 |
| Brand Name | NVIDIA |
| Product Name | RTX PRO 4000 Blackwell SFF Edition Graphic Card |
| Product Type | Graphic Card |
| Technical Information | |
| API Supported | DirectX 12,OpenGL 4.6,Vulkan 1.4,OpenCL 3.0 |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 8960 |
| Features | Ray Tracing,ECC,CUDA Technology |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Series | RTX |
| Chipset Model | RTX PRO 4000 |
| Memory | |
| Standard Memory | 24 GB |
| Memory Technology | GDDR7 |
| Bus Width | 192 bit |
| Maximum Memory Bandwidth | 432 GB/s |
| Interfaces/Ports | |
| Host Interface | PCI Express 5.0 x8 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 4 |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort Outputs | 4 |
| Power Description | |
| Power Supply Wattage | 70 W |
| Power Connector | 1x 16-pin |
| Physical Characteristics | |
| Slot Space Required | Dual |
| Form Factor | Plug-in Card |
| Card Length | Half-length |
| Card Height | Half-height |
| Cooler Type | Active Cooler |
| Length | 6.60" (167.64 mm) |
| Miscellaneous | |
| Platform Supported | PC |
User Manual
FAQ
What is the memory capacity and type of this graphics card?
The NVIDIA RTX PRO 4000 features 24 GB of GDDR7 memory with a 192-bit bus interface. This configuration provides 432 GB/s of memory bandwidth, which is substantial for professional visualization applications that work with large datasets, complex textures, and high-resolution rendering tasks.
What display outputs does this card support?
This graphics card includes four DisplayPort outputs and four Mini DisplayPort outputs, allowing connection to up to four monitors simultaneously. It supports a maximum digital display resolution of 7680 x 4320 (8K) per display, making it suitable for high-resolution multi-monitor workstation setups.
What is the form factor of this graphics card?
The RTX PRO 4000 features a half-height form factor with a length of 6.60 inches (167.64 mm). It requires dual slot space for installation. This compact design makes it suitable for small form factor workstations and environments where space optimization is important while maintaining professional-grade performance.
What power requirements does this graphics card have?
This card has a power supply wattage requirement of 70 watts and uses a single 16-pin power connector. The relatively modest power consumption makes it compatible with a wide range of workstation power supplies while the dedicated connector ensures clean power delivery for stable operation during intensive workloads.
What APIs and technologies does this card support?
The graphics card supports DirectX 12, OpenGL 4.6, Vulkan 1.4, and OpenCL 3.0 APIs. It includes ray tracing capabilities for realistic lighting and reflections, ECC (Error Correcting Code) memory for data integrity in critical applications, and CUDA technology for parallel computing acceleration.
How many CUDA cores does this graphics card have?
The NVIDIA RTX PRO 4000 features 8960 CUDA cores. These parallel processing units enable accelerated computation for professional applications including 3D rendering, simulation, AI inference, and scientific computing. The substantial core count supports demanding workstation workflows that benefit from GPU acceleration.
