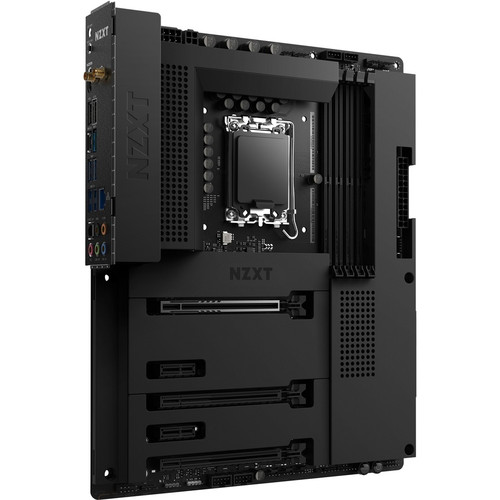

NZXT ATX Desktop Motherboard LGA-1700 Intel Chipset Optane Ready Core Processor Compatible Memory Socket N7-Z69XT-B1
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- All-metal cover completes the look of your build
- Wi-Fi 6E connectivity with updated specs for Z690 chipset
- Digital RGB lighting control through NZXT CAM
- Digital fan control with profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout ensures optimal setup with upgradeability
Marketing Information:
This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z690 chipset.
Chipset Manufacturer: Intel
Chipset Model: Z690
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Core
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 3200 MHz,5000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10,1,5,0
Onboard Video: CPU Dependent Video
Audio Channels: 5.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Total Number of Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 3.0
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Type-A Ports: 3
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-C Ports: 1
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.0
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- RAID supported levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support enables a hassle-free peripheral connection
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
[custom-specifications]
| Specifications | |
| Manufacturer | NZXT Corporation |
| Manufacturer Part Number | N7-Z69XT-B1 |
| Manufacturer Website Address | http://www.nzxt.com |
| Brand Name | NZXT |
| Product Model | N7-Z69XT-B1 |
| Product Name | Intel Motherboard with Wi-Fi and NZXT CAM Features |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Supported | Core |
| Multi GPU Supported | CrossFireX |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 3200 MHz,5000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10,1,5,0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 5.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.0 |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
[/custom-specifications]
