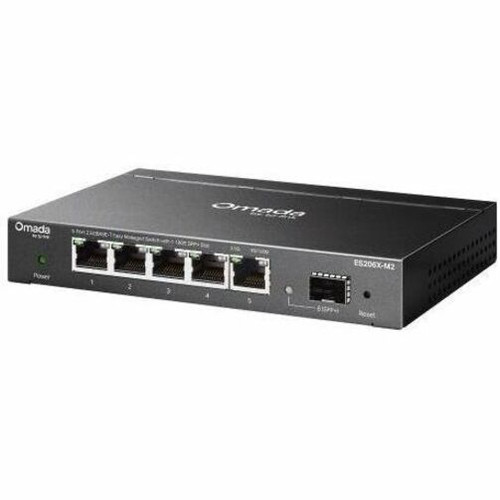

Omada ES206X-M2 5-Port 2. 5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot - Layer 2 - Desktop/Wall Mount - Fanless
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ES206X-M2 operates as a Layer 2 easy managed switch, providing full wire-speed forwarding across all ports. Each of the five RJ45 ports supports 2.5GBASE-T (2.5 Gbps) and is backward compatible with 1000Base-T and 100Base-TX, ensuring seamless integration with existing gigabit devices. The maximum data transfer rate is 1.25 GB/s, suitable for high-bandwidth applications like large file transfers and video editing workflows.
The 10 Gbps SFP+ uplink slot accommodate fiber modules (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM) or direct-attach cables, providing a high-speed connection to a core switch or NAS. It also supports 10GBase-X operation. The switch complies with IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3z, 802.3ae, 802.3aq, 802.3x, 802.1p, 802.1Q, and 802.1ab standards.
Management capabilities include VLAN (802.1Q), Quality of Service (QoS) with 802.1p prioritization, IGMP Snooping, link aggregation, flow control, loopback detection, port mirroring, broadcast/multicast/unicast storm control, cable diagnostics, loop protection, and DHCP client auto-configuration. The switch supports zero-touch provisioning (ZTP) via the Omada cloud, allowing deployment without on-site technical expertise.
Key Product Advantages
The Omada ES206X-M2 delivers a cost-effective upgrade path from 1GbE to 2.5GbE for businesses that need more bandwidth for high-performance workstations, NAS devices, or Wi-Fi 6 access points. By combining five 2.5G copper ports with a 10G fiber uplink, it provides a future-proof edge switch that can handle growing traffic demands without requiring a complete network overhaul.
Key advantages include:
Multi-Gigabit Performance
Five 2.5 Gbps RJ45 ports deliver 2.5x the throughput of standard Gigabit Ethernet, ideal for bandwidth-intensive applications like video editing, large data transfers, and high-speed backup.
- 2.5GBASE-T backward compatible with 1000Base-T
- 10 Gbps SFP+ uplink for high-speed backbone connection
- Total switching capacity of 1.25 GB/s
Cloud-Based Centralized Management
Manage the switch remotely via Omada web portal or mobile app. Simplify deployment with Zero-Touch Provisioning (ZTP) and gain real-time visibility into network performance.
- Centralized configuration and firmware updates
- Monitoring and alerts from anywhere
- Supports multiple site management
Layer 2 Feature Set
The switch offers comprehensive L2 features for traffic segmentation, quality of service, and network resilience. VLANs isolate traffic, QoS prioritizes critical applications, and IGMP snooping optimizes multicast streaming.
- 802.1Q VLAN
- 802.1p QoS and DSCP
- IGMP Snooping v1/v2/v3
- Link Aggregation (LACP)
- Loop protection, storm control
Silent and Compact Design
Fanless metal chassis operates silently, ideal for open office, classroom, or retail environments. Desktop or wall-mountable form factor fits into tight spaces while providing durable metal construction.
- Zero fan noise
- Low power consumption (5.63 W)
- Complies with RoHS
Deployment / Use Cases
The ES206X-M2 is designed for edge deployments where higher bandwidth per port is needed but full 10GbE switching is cost-prohibitive. Typical use cases include connecting multi-gigabit Wi-Fi 6 access points, high-performance workstations, NAS appliances, and video production stations to the network. Its 10G SFP+ uplink enables a high-speed connection to a core switch or server, ensuring the edge bandwidth is not bottlenecked at the aggregation layer.
Use cases:
SMB / Branch Office Network
Deploy as an access switch for a small office with a mix of 1GbE and 2.5GbE devices. The 10G uplink connects to a core switch, providing high-speed access to file servers and cloud gateways.
- Connect workstations, printers, and APs
- VLAN segmentation for guest and corporate traffic
- Centralized cloud management via Omada
Video Production / Post-Production
Provide multi-gigabit connectivity for editing workstations and shared storage. The 2.5G ports handle high-throughput media files, while the 10G uplink connects to a NAS or server.
- 2.5G per workstation for smooth 4K editing
- 10G SFP+ for NAS or video server
- QoS to prioritize video traffic
Education / Campus Edge
Install in classrooms or labs where students require fast network access for e-learning, video streaming, and collaboration tools. The fanless design ensures quiet operation in learning environments.
- Wall-mountable in classroom closets
- IGMP snooping for IPTV or lecture streaming
- Plug-and-play with cloud management for IT
Physical Profile
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1" (25.40 mm), 6.20" (157.48 mm), 4" (101.60 mm), 1.15 lb (520 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
Physical fit matters beyond raw measurements because it affects placement, airflow, cable routing, handling, and day-to-day service access. Buyers often review this section to reduce installation surprises and confirm whether the product will sit cleanly in the intended desk, shelf, rack, cabinet, or shared workspace.
- Width
- 6.20" (157.48 mm)
- Depth
- 4" (101.60 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.15 lb (520 g)
What's in the Box
The switch ships with everything you need for immediate deployment: the Omada ES206X-M2 switch, a power adapter, rubber feet for desktop stability, and an installation guide.
Highlights
- 5 x 2.5Gbps RJ45 ports with 10G SFP+ uplink
- Layer 2 easy managed switch with VLAN, QoS, IGMP Snooping
- Centralized cloud management via Omada web app or mobile app
- Zero-Touch Provisioning (ZTP) for hassle-free deployment
- Fanless, silent metal design for office environments
- Low power consumption: 5.63W
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ES206X-M2 |
| Brand Name | Omada |
| Product Model | ES206X-M2 |
| Product Name | 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Plug and Play,Remote/Cloud Management,Virtual LAN (VLAN),Quality of Service (QoS),IGMP Snooping,Fanless,Reset Button,Zero-Touch Provisioning (ZTP),Intelligent monitoring,Link Aggregation,Flow Control,Loopback Detection,Port Mirroring,Broadcast Storm Control,Cable Diagnostic,Loop Protection,Multicast Storm Control,Unicast Storm Control,DHCP Client Auto-Configuration |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x 2.5 Gigabit Ethernet Network,1 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 100/1000Base-T,2.5GBase-T,10GBase-X,10GBase-SR/LR,10GBase-LRM |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3aq,IEEE 802.3x,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Easy Managed |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source | DC,Power Adapter |
| Power Consumption | 5.63 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 6.20" (157.48 mm) |
| Depth | 4" (101.60 mm) |
| Weight (Approximate) | 1.15 lb (520 g) |
| Miscellaneous | |
| Package Contents | 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot Power Adapter Rubber Feet Installation Guide |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the difference between the Omada ES206X-M2 and a standard gigabit switch?
The ES206X-M2 features five 2.5 Gbps ports, which provide 2.5 times the bandwidth of standard Gigabit Ethernet (1 Gbps). This allows faster data transfer for multi-gigabit devices like Wi-Fi 6 access points, high-performance workstations, and NAS devices. It also includes a 10 Gbps SFP+ slot for a high-speed uplink, whereas typical gigabit switches have only 1 Gbps uplinks.
Can this switch be managed without a cloud account?
Yes, the ES206X-M2 can operate in plug-and-play mode with default settings, providing basic switching functionality without any management. However, to access advanced features like VLAN, QoS, IGMP Snooping, and cloud management, you can configure it as an easy managed switch via the Omada web portal or mobile app. Local management via a web interface is also possible if you have an active management session.
What type of SFP+ modules are compatible with the 10G slot?
The SFP+ slot supports 10 Gigabit Ethernet SFP+ modules, including 10GBASE-SR (short-range fiber), 10GBASE-LR (long-range fiber), 10GBASE-LRM (multi-mode fiber), and 10GBase-X. It can also accept 10G SFP+ direct-attach copper (DAC) cables. The slot is compatible with standard IEEE 802.3ae modules.
Does the ES206X-M2 support Power over Ethernet (PoE)?
No, the Omada ES206X-M2 does not support Power over Ethernet (PoE). It is a non-PoE switch that provides data connectivity only. If you need to power devices such as IP cameras or wireless access points, you will need a separate PoE injector or a PoE switch.
How do I mount the switch on a wall?
The ES206X-M2 has a compact metal casing with mounting holes on the underside, compatible with standard wall-mounting kits. You can secure it to a wall using screws (not included). The rubber feet provided allow optional desktop placement with anti-slip stability.
What is the maximum cable length supported on the 2.5G ports?
The 2.5GBASE-T ports support a maximum cable length of 100 meters (328 feet) over Cat5e or better twisted-pair copper cable, in accordance with the IEEE 802.3bz standard. For optimal performance, use Cat5e or higher cabling.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Twisted Pair,Optical Fiber, giving buyers a clearer picture of expected coverage after purchase.
What management, monitoring, or control option is listed?
Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet.
