Omada ES206XPP-M2 2. 5GbE PoE++ Switch - 5-Port with 10G SFP+ Uplink - 120W PoE Budget - Layer 2 Managed - Desktop/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

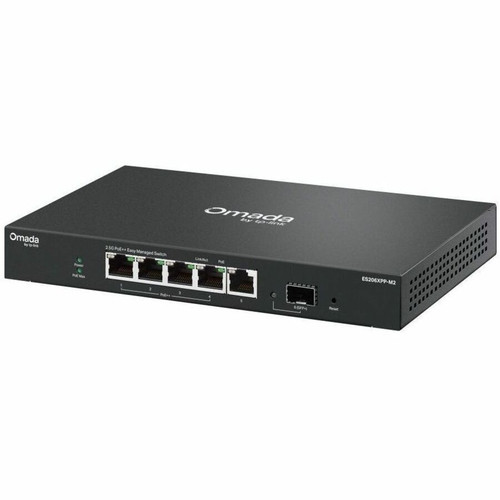

The ES206XPP-M2 features four 2.5GBase-T PoE++ ports and one 2.5GBase-T uplink port, all supporting auto-negotiation and auto-MDI/MDIX. The SFP+ cage accepts 10 Gbps optical or direct-attach copper modules for high-speed uplinks. Layer 2 switching capabilities include VLAN, QoS, IGMP snooping, link aggregation, loopback detection, and storm control (broadcast, multicast, unicast). Management is accessible through a local web GUI or the Omada cloud platform, with Zero-Touch Provisioning (ZTP) for large-scale deployments.
The switch complies with IEEE 802.3af/at/bt PoE standards, delivering up to 90W per port to support powered devices like PTZ cameras or high-performance APs. The total PoE budget of 120W is shared across the four PoE ports. Additional features include flow control, cable diagnostics, port mirroring, and loop protection, ensuring reliable and maintainable network operations.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Uplink Port, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Omada ES206XPP-M2 delivers a powerful combination of multi-gigabit speeds, ample PoE budget, and centralized cloud management in a compact, silent form factor. Key advantages include:
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Multi-Gigabit throughput to eliminate bandwidth bottlenecks, 120W PoE++ budget with up to 90W per port for high-power devices, 10 Gbps SFP+ uplink for future-proof fiber connectivity, Fanless, silent operation suitable for open workspaces, Cloud management via Omada app and web for remote monitoring.
Deployment / Use Cases
The Omada ES206XPP-M2 is ideal for small-to-medium businesses, retail, hospitality, and education environments that require high-bandwidth PoE connectivity. Its multi-gig ports are perfect for Wi-Fi 6/6E access points demanding more than 1 Gbps, while the 10G SFP+ uplink aggregates traffic to a core switch without congestion.
Deploy it as a compact edge switch in a network closet or mount it on a wall to save space. The fanless design is well-suited for conference rooms, libraries, and healthcare facilities where noise must be minimized. With cloud management via Omada SDN, IT teams can monitor, configure, and troubleshoot the switch from anywhere.
High-Performance Wi-Fi Networks
Connect Wi-Fi 6/6E APs to the four 2.5G PoE++ ports and use the 10G SFP+ uplink to the core. The 90W per port ensures even the most power-hungry APs are fully powered.
- Supports up to 90W PoE++ per port
- No speed bottleneck between AP and network core
Retail & Surveillance
Power PTZ cameras and high-resolution IP cameras directly from the switch. The 120W total budget can support multiple cameras with pan/tilt/zoom capabilities.
- IEEE 802.3bt compliant for high-power devices
- Loop protection and storm control prevent network disruptions
Physical Profile
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1" (25.40 mm), 8.20" (208.28 mm), 5" (127 mm), 1.48 lb (671.32 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
Physical fit matters beyond raw measurements because it affects placement, airflow, cable routing, handling, and day-to-day service access. Buyers often review this section to reduce installation surprises and confirm whether the product will sit cleanly in the intended desk, shelf, rack, cabinet, or shared workspace.
- Width
- 8.20" (208.28 mm)
- Depth
- 5" (127 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.48 lb (671.32 g)
What's in the Box
The package includes the Omada ES206XPP-M2 Ethernet switch, power adapter, power cord, mounting feet, and installation guide.
Package contents include ES206XPP-M2 Ethernet Switch Power Adapter Power Cord Mounting Feet Installation Guide, ES206XPP-M2 Ethernet Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5 x 2.5 Gbps RJ45 ports, 4 with PoE++ (802.3af/at/bt)
- 1 x 10 Gbps SFP+ uplink for high-speed fiber connection
- 120W PoE budget with up to 90W per port
- Plug-and-play with easy cloud management via Omada SDN
- Fanless design for silent operation in noise-sensitive areas
- Layer 2 features: VLAN, QoS, IGMP snooping, link aggregation
- Loop protection, storm control, and cable diagnostics
- Durable metal casing with desktop or wall-mount flexibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ES206XPP-M2 |
| Brand Name | Omada |
| Product Model | ES206XPP-M2 |
| Product Name | ES206XPP-M2 Ethernet Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Plug and Play,Remote/Cloud Management,Virtual LAN (VLAN),Quality of Service (QoS),IGMP Snooping,Fanless,Zero-Touch Provisioning (ZTP),Link Aggregation,Flow Control,Loopback Detection,Port Mirroring,Cable Diagnostic,Auto-negotiation,Broadcast Storm Control,Multicast Storm Control,Unicast Storm Control,Loop Protection |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 1 x 2.5 Gigabit Ethernet Network,4 x 2.5 Gigabit Ethernet PoE++,1 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | 2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 2.5GBase-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Easy Managed |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | AC,Power Adapter |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 8.20" (208.28 mm) |
| Depth | 5" (127 mm) |
| Weight (Approximate) | 1.48 lb (671.32 g) |
| Miscellaneous | |
| Package Contents | ES206XPP-M2 Ethernet Switch Power Adapter Power Cord Mounting Feet Installation Guide |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the maximum PoE power per port on the ES206XPP-M2?
Each of the four PoE ports can deliver up to 90W (IEEE 802.3bt) when the total PoE budget is not exceeded. The switch has a total PoE budget of 120W, which is shared among the four PoE ports.
Does the ES206XPP-M2 support cloud management?
Yes. The switch can be managed centrally through the Omada SDN platform via a web browser or the Omada mobile app. It also supports Zero-Touch Provisioning (ZTP) for automated cloud deployment.
What type of SFP+ module is required for the 10G uplink?
The SFP+ slot accepts standard 10 Gbps SFP+ modules (SR, LR, or DAC cables) for fiber or direct-attach copper connectivity. The switch supports 10GBase-X optical modules.
Is the ES206XPP-M2 suitable for a home office?
Yes. Its fanless, silent operation and compact metal case make it ideal for home offices. The 2.5G ports provide faster wired speeds than typical gigabit switches, and the 10G uplink ensures future-ready connectivity.
Can the switch be mounted on a wall?
Yes. The ES206XPP-M2 includes mounting feet and can be mounted on a wall or placed on a desktop. Its dimensions are 8.20" x 5" x 1" (WxDxH), making it compact enough for various locations.
What management features are available without a cloud account?
The switch can be managed locally via a web-based GUI. It provides VLAN, QoS, IGMP snooping, link aggregation, loop detection, and storm control without requiring cloud access.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
