Omada ES210X-M2 8-Port 2. 5G Base-T Easy Managed Switch with 2 10GE SFP+ Slots - Layer 2 - Cloud Management - Fanless Metal Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

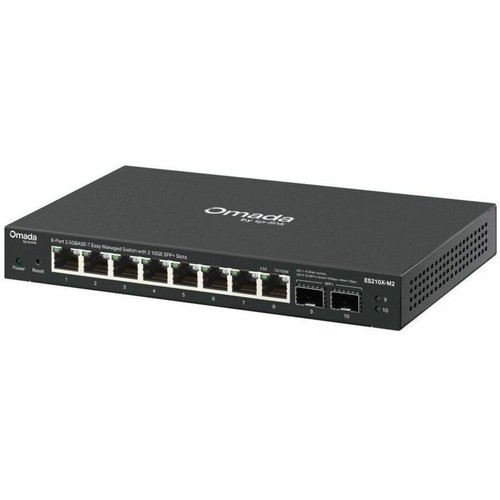

The ES210X-M2 is a Layer 2 switch that supports IEEE 802.3bz (2.5GBase-T) and provides a maximum data transfer rate of 1.25 GB/s per port. It features 8 x 2.5G Base-T RJ45 ports and 2 x 10G SFP+ expansion slots for fiber uplinks, offering flexible connectivity for mixed-speed networks. The switch also supports 100/1000Base-T on the RJ45 ports for legacy devices.
Managed via an intuitive web interface or the Omada Cloud, the switch includes essential L2 features such as Quality of Service (QoS), IGMP Snooping, Link Aggregation, Port Mirroring, and Storm Control (Broadcast, Multicast, Unicast). Its fanless design ensures silent operation, making it suitable for open-office or noise-sensitive environments.
The switch complies with IEEE 802.1Q for VLANs and 802.1p for QoS, among other standards, ensuring interoperability with existing network infrastructure.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Omada ES210X-M2 offers a balance of high-speed port density and advanced management features at a low power consumption of just 8.38 W. Its fanless metal casing provides durability and silent operation, while the desktop/wall-mountable form factor allows flexible placement.
High-Speed Access
Eight 2.5G Base-T ports provide a cost-effective upgrade from Gigabit Ethernet, supporting Wi-Fi 6 access points and high-performance workstations without replacing cabling.
- 2.5 Gbps per port
- Backward compatible with 100/1000Base-T
- Automatic negotiation
10G Uplink Ready
Two 10G SFP+ slots enable high-speed fiber uplinks to aggregation or core switches, future-proofing your network for increased traffic demands.
- 10 Gbps per SFP+ slot
- Support for 10GBase-X
- Direct attach copper or fiber optics
Cloud-Managed Simplicity
Centralized management via Omada Cloud reduces on-site IT visits. Zero-Touch Provisioning (ZTP) allows for rapid deployment across multiple sites.
- Web and app-based management
- Automatic configuration
- Real-time monitoring and alerts
Deployment / Use Cases
The Omada ES210X-M2 is ideal for small-to-medium businesses, education campuses, and hospitality environments where high-speed wired access is required for devices such as Wi-Fi 6 access points, IP cameras, and workstations. Its 2.5G ports deliver the bandwidth needed for modern applications like video conferencing, cloud collaboration, and high-resolution media streaming without the expense of full 10GBase-T.
Use cases include deploying the switch as an access-layer device in a multi-site network managed via the Omada Cloud, or as a compact edge switch for a branch office requiring silent operation and wall-mountable installation. The SFP+ uplinks connect directly to a 10G backbone, while the 2.5G ports handle local traffic efficiently.
Branch Office Edge Switch
Deploy the ES210X-M2 as a desktop switch in a remote office. Its fanless operation keeps noise low, and wall-mounting saves desk space.
- 2.5G for local workstations
- 10G uplink to central network
- Cloud-managed for zero-touch setup
High-Performance LAN Party or Lab
For gaming events or testing labs, the switch provides high-speed 2.5G connections for each station, with two 10G uplinks for server or storage connectivity.
- Low latency per port
- Link aggregation for trunking
- Easy VLAN isolation
Physical Profile

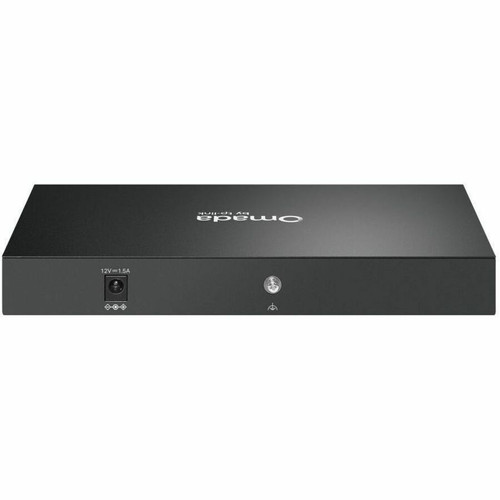

The ES210X-M2 features a rugged metal casing that measures 8.20 x 5 x 1 inches (208.28 x 127 x 25.4 mm) and weighs only 1.57 lb (710 g). Its compact desktop form factor can be placed on a desk or mounted on a wall using the provided rubber feet or mounting slots. The fanless design ensures silent operation, making it suitable for open office environments or any noise-sensitive space.
- Width
- 8.20" (208.28 mm)
- Depth
- 5" (127 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.57 lb (710 g)
What's in the Box
The package includes the Omada ES210X-M2 switch, power adapter, rubber feet, and an installation guide. All necessary hardware to get started quickly.
Highlights
- 8× 2.5 Gbps RJ45 Ports for high-speed wired access
- 2× 10 Gbps SFP+ Slots for fiber uplinks or stacking
- Easy Managed with cloud control via Omada App or Web
- Plug-and-play deployment with Zero-Touch Provisioning (ZTP)
- Layer 2 features: VLAN, QoS, IGMP Snooping, Link Aggregation
- Fanless design for silent operation in any environment
- Durable metal casing with desktop/wall-mount flexibility
- Low power consumption at 8.38 W for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ES210X-M2 |
| Brand Name | Omada |
| Product Model | ES210X-M2 |
| Product Name | 8-Port 2.5G BASE-T Easy Managed Switch with 2 10GE SFP+ Slots |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Plug and Play,Remote/Cloud Management,Quality of Service (QoS),IGMP Snooping,Fanless,Zero-Touch Provisioning (ZTP),Intelligent monitoring,Link Aggregation,Loopback Detection,Port Mirroring,Broadcast Storm Control,Multicast Storm Control,Unicast Storm Control |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet Network Port,2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 2.5GBase-T,10GBase-X,100/1000Base-T |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3aq,IEEE 802.3x,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Easy Managed |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source | Power Supply,DC |
| Power Consumption | 8.38 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 8.20" (208.28 mm) |
| Depth | 5" (127 mm) |
| Weight (Approximate) | 1.57 lb (710 g) |
| Miscellaneous | |
| Package Contents | 8-Port 2.5G BASE-T Easy Managed Switch with 2 10GE SFP+ Slots Power Adapter Rubber Feet Installation Guide |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What type of cables does the ES210X-M2 support for the RJ45 ports?
The RJ45 ports support 2.5GBase-T, 1000Base-T, and 100Base-TX. For 2.5G operation, Cat5e or better cabling is recommended. The SFP+ slots support 10GBase-X modules or direct-attach copper cables.
Can the ES210X-M2 be managed without cloud access?
Yes, the switch supports local web management as an alternative to cloud management. However, cloud management via the Omada app or web portal provides additional features like centralized monitoring and Zero-Touch Provisioning (ZTP).
Does the switch support Power over Ethernet (PoE)?
No, the Omada ES210X-M2 does not support PoE. It requires an external power adapter (12V DC, included) to operate. For PoE requirements, consider Omada PoE switch models.
What is the power consumption of the ES210X-M2?
The switch has a maximum power consumption of 8.38 W, making it energy-efficient for 24/7 operation. It uses a passive cooling fanless design, generating no noise.
Can the SFP+ slots be used for stacking multiple switches?
The ES210X-M2 does not support physical stacking via dedicated stacking ports. However, the SFP+ slots can be used for high-speed uplinks to an aggregation switch or for creating a logical mesh using link aggregation.
What is the switching capacity of the ES210X-M2?
The switch provides 8 x 2.5G ports (20 Gbps total) and 2 x 10G SFP+ slots (20 Gbps total), resulting in a non-blocking switching capacity of approximately 40 Gbps.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Twisted Pair,Optical Fiber, giving buyers a clearer picture of expected coverage after purchase.
What management, monitoring, or control option is listed?
Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet.
