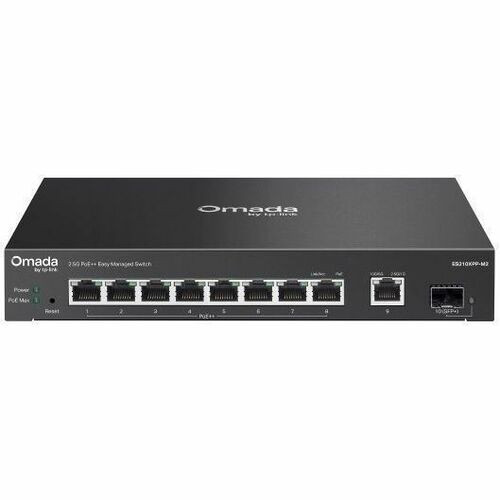

Omada ES210XPP-M2 8-Port 2. 5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++ - 9 Ports - 200W PoE Budget - 1x SFP+ Uplink - Layer 2 - Fanless
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ES210XPP-M2 is built around nine network ports: eight 2.5 Gigabit Ethernet PoE++ RJ45 ports and one 10 Gigabit Ethernet RJ45 network port. A dedicated 10 Gigabit Ethernet SFP+ expansion slot adds a fiber-ready uplink path, giving network designers the option to run optical fiber for longer-distance or higher-bandwidth backhaul. Media support spans both twisted pair and optical fiber, and the switch handles 2.5 Gigabit Ethernet and 10 Gigabit Ethernet technologies with a maximum data transfer rate of 1.25 GB/s.
PoE delivery is a central capability of this switch. All eight RJ45 access ports are PoE++ capable and compliant with IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt, with a total PoE budget of 200 W. The switch is a Layer 2 device with IEEE 802.1Q support, and it is classified as Easy Managed. Management features include Virtual LAN (VLAN), Quality of Service (QoS), IGMP Snooping, Zero-Touch Provisioning (ZTP), Link Aggregation, Loopback Detection, Flow Control, Port Mirroring, Broadcast Storm Control, Multicast Storm Control, and Unicast Storm Control.
Additional technical features include auto-negotiation, plug-and-play operation, and a fanless design. Power input accepts 120 V AC and 230 V AC through an AC/DC power source.
Port Layout
Eight 2.5 Gigabit Ethernet PoE++ RJ45 access ports are paired with a 10 Gigabit Ethernet RJ45 network port and a 10 Gigabit Ethernet SFP+ expansion slot for flexible uplink and fiber connectivity.
- 8 x 2.5 Gigabit Ethernet PoE++
- 1 x 10 Gigabit Ethernet Network
- 1 x 10 Gigabit Ethernet Expansion Slot (SFP+)
Power and PoE Standards
The switch supports IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt PoE standards with a combined 200 W PoE budget, and it accepts 120 V AC or 230 V AC input.
- PoE Budget: 200 W
- 802.3af / 802.3at / 802.3bt
- Input Voltage: 120 V AC, 230 V AC
Key Product Advantages
The ES210XPP-M2 combines multi-gigabit access speeds, PoE++ power delivery, and 10G uplink options in a compact, fanless platform. For deployments that are moving beyond Gigabit Ethernet, the eight 2.5G PoE++ ports provide headroom for newer access points and endpoints without requiring a full chassis refresh. The 200 W PoE budget supports a meaningful number of powered devices, while the 10G RJ45 port and 10G SFP+ slot give administrators clear paths for uplink bandwidth and future fiber expansion.
Easy Managed operation keeps day-to-day administration approachable. Centralized cloud management through the web or the Omada app, Zero-Touch Provisioning, and plug-and-play behavior reduce the setup burden, while VLAN, QoS, IGMP Snooping, Link Aggregation, and storm control features provide the control needed for a stable, segmented network. The metal enclosure, desktop and wall-mountable form factor, and silent fanless operation make the switch suitable for office, retail, and edge locations where noise and space are practical considerations.
Deployment / Use Cases
The ES210XPP-M2 is positioned for access-layer deployments where multi-gigabit client devices and PoE endpoints converge. A typical scenario is a small business or branch office that needs to power Wi-Fi access points, IP cameras, VoIP handsets, or other PoE devices while delivering 2.5G connectivity to 2.5G-capable workstations and laptops. The 200 W PoE budget and 802.3bt support make it practical to serve higher-power devices alongside standard 802.3af and 802.3at endpoints from a single switch.
For network builders who need more than copper uplinks, the 10 Gigabit Ethernet SFP+ slot offers a fiber-ready path to a core switch, aggregation layer, or another distribution point. The 10 Gigabit Ethernet RJ45 port can serve as an additional high-speed copper uplink or as a connection to a server, NAS, or 10G-capable workstation. Easy Managed operation and centralized cloud management through the web or the Omada app suit environments without a dedicated on-site network engineer, while VLAN, QoS, and storm control provide the segmentation and traffic protection expected in a managed access switch.
Small Business and Branch Access
Deploy the switch at the edge to connect 2.5G access points, workstations, and PoE-powered devices such as cameras and handsets. The 200 W PoE budget and 802.3bt support allow a mix of standard and high-power PoE endpoints on the same switch.
- Eight 2.5G PoE++ RJ45 ports
- 200 W PoE budget
- Easy Managed operation with cloud management
10G Uplink and Fiber Backhaul
Use the 10 Gigabit Ethernet RJ45 port for high-speed copper uplinks and the 10 Gigabit Ethernet SFP+ slot for fiber connections to a core or aggregation switch. This provides a scalable uplink strategy as bandwidth demands grow.
- 1 x 10 Gigabit Ethernet Network (RJ45)
- 1 x 10 Gigabit Ethernet Expansion Slot (SFP+)
- Supports twisted pair and optical fiber media
Physical Profile
The ES210XPP-M2 is housed in a metal enclosure and can be deployed on a desktop or mounted to a wall using the included mounting feet. Its dimensions are 1.38" (35 mm) in height, 8.90" (226 mm) in width, and 5.16" (131 mm) in depth, with an approximate weight of 1.12 lb (508.02 g). The fanless design supports silent operation, which is useful in office, retail, or shared spaces where fan noise would be disruptive. The compact footprint and wall-mount capability allow the switch to be placed close to the devices it serves or tucked out of the way in a wiring area.
- Width
- 8.90" (226 mm)
- Depth
- 5.16" (131 mm)
- Height
- 1.38" (35 mm)
- Weight
- 1.12 lb (508.02 g)
What's in the Box
The package includes the switch, its power adapter, a power cord, mounting feet, and an installation guide. These items support immediate desktop or wall-mount deployment.
Highlights
- 8 x 2.5 Gigabit Ethernet PoE++ RJ45 ports
- 1 x 10 Gigabit Ethernet RJ45 port and 1 x 10 Gigabit Ethernet SFP+ slot
- 200 W PoE budget with IEEE 802.3af, 802.3at, and 802.3bt support
- Layer 2 Easy Managed switch with VLAN, QoS, and IGMP Snooping
- Centralized cloud management via the web or the Omada app
- Zero-Touch Provisioning (ZTP), Auto-negotiation, and plug-and-play operation
- Link Aggregation, Loopback Detection, Flow Control, and Port Mirroring
- Broadcast, Multicast, and Unicast Storm Control
- Fanless design for silent operation
- Durable metal casing with desktop and wall-mount installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ES210XPP-M2 |
| Brand Name | Omada |
| Product Model | ES210XPP-M2 |
| Product Name | 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++ |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Easy to Use,Fanless,Plug and Play,Virtual LAN (VLAN),Quality of Service (QoS),IGMP Snooping,Zero-Touch Provisioning (ZTP),Auto-negotiation,Link Aggregation,Loopback Detection,Flow Control,Port Mirroring,Broadcast Storm Control,Multicast Storm Control,Unicast Storm Control |
| Interfaces/Ports | |
| Total Number of Network Ports | 9 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet PoE++,1 x 10 Gigabit Ethernet Network,1 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | 2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.1Q |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Easy Managed |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 200 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | AC/DC |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1.38" (35 mm) |
| Width | 8.90" (226 mm) |
| Depth | 5.16" (131 mm) |
| Weight (Approximate) | 1.12 lb (508.02 g) |
| Miscellaneous | |
| Package Contents | 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++ Power Adapter Power Cord Mounting Feet Installation Guide |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
How many ports does the ES210XPP-M2 provide, and what types are they?
The ES210XPP-M2 has nine network ports in total. Eight are 2.5 Gigabit Ethernet PoE++ RJ45 access ports, one is a 10 Gigabit Ethernet RJ45 network port, and there is also a 10 Gigabit Ethernet SFP+ expansion slot. This layout supports multi-gigabit access connections alongside 10G uplink or fiber options.
What is the PoE budget and which PoE standards are supported?
The switch provides a 200 W PoE budget and supports IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt. All eight RJ45 access ports are PoE++ capable, so the switch can power a mix of standard PoE and higher-power PoE devices from the same unit, subject to the total 200 W budget.
What management features does the ES210XPP-M2 support?
The ES210XPP-M2 is an Easy Managed Layer 2 switch with support for Virtual LAN (VLAN), Quality of Service (QoS), IGMP Snooping, Link Aggregation, Loopback Detection, Flow Control, Port Mirroring, and Broadcast, Multicast, and Unicast Storm Control. It also supports Zero-Touch Provisioning and centralized cloud management via the web or the Omada app.
What uplink options are available on this switch?
The ES210XPP-M2 offers two 10 Gigabit uplink paths: a 10 Gigabit Ethernet RJ45 network port and a 10 Gigabit Ethernet SFP+ expansion slot. The RJ45 port can be used for high-speed copper uplinks, while the SFP+ slot supports optical fiber for longer-distance or higher-bandwidth backhaul. The switch supports both twisted pair and optical fiber media.
Is the ES210XPP-M2 fanless, and what is its form factor?
Yes, the ES210XPP-M2 uses a fanless design for silent operation. It has a metal enclosure and supports desktop or wall-mount installation using the included mounting feet. Its dimensions are 1.38" (35 mm) in height, 8.90" (226 mm) in width, and 5.16" (131 mm) in depth, with an approximate weight of 1.12 lb (508.02 g).
What is included in the box with the ES210XPP-M2?
The package includes the 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++, a power adapter, a power cord, mounting feet, and an installation guide. These items cover the switch itself and the accessories needed for desktop or wall-mount deployment.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Twisted Pair,Optical Fiber, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
