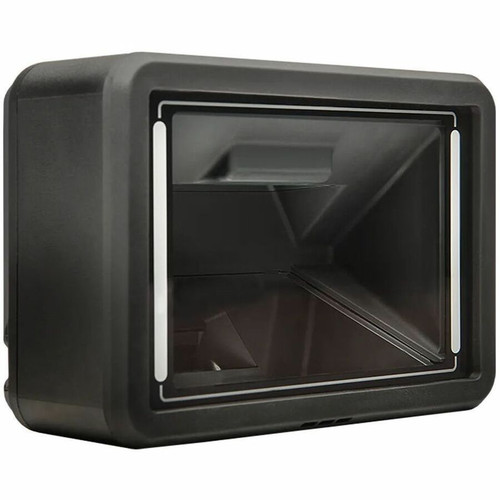

Opticon 2D CMOS Presentation Scanner - Cable Connectivity - 9.20" (233.68 mm) Scan Distance - 1D, 2D - LED - CMOS, Imager - - USB - - (M11BU1S-00)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/ Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic, USPS
- Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix (ECC200), Maxi Code, MicroPDF417, Micro QR Code, Passport MRZ (OCR-B), PDF417, QR Code
- Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Dutch KIX code, UK Postal, Postal JPN, POSTNET, PLANET
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
POSTAL CODES:
Light Source: LED
Image Sensor Type: CMOS,Imager
Scan Mode: Trigger
Scan Pattern: Omni-directional
Scanning Distance: 9.20" (233.68 mm)
Reading Angle (Skew): 70°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Motion Tolerance: 100 in/s (2540 mm/s)
Image Formats: BMP,JPEG
Maximum Ambient Light: 100000 lux
Drop Specification:
5 ft (1.5 m) drop onto concrete surface
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 15 mil (0.38 mm)
Image Sensor Resolution: 1280 x 800
Host Interface: USB
Operating Temperature: 23°F (-5°C) to 113°F (45°C)
Storage Temperature: -22°F (-30°C) to 140°F (60°C)
Humidity (Non-condensing): 10% to 90%
Form Factor: Fixed Mount
Color Family: Black
Product Color: Black
Durability: Dust Resistant
Height: 1.89" (48.01 mm)
Width: 3.32" (84.33 mm)
Depth: 4.90" (124.46 mm)
Weight (Approximate): 7.44 oz (210.920452 g)
Ingress Protection (IP) Rating: IP42
Application/Usage: Healthcare,Retail,Manufacturing,Transportation,Logistics
Country of Origin: Japan
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- LED aimer is a perfect choice for patient-facing applications
- Perfect for applications that require direct association with a workstation or a notebook
[custom-specifications]
| Specifications | |
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | M11BU1S-00 |
| Manufacturer Website Address | http://www.opticon.com |
| Brand Name | Opticon |
| Product Model | M-11 |
| Product Name | 2D CMOS Presentation Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
POSTAL CODES:
|
| Light Source | LED |
| Image Sensor Type | CMOS,Imager |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional |
| Scanning Distance | 9.20" (233.68 mm) |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 100 in/s (2540 mm/s) |
| Image Formats | BMP,JPEG |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 5 ft (1.5 m) drop onto concrete surface |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 15 mil (0.38 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 23°F (-5°C) to 113°F (45°C) |
| Storage Temperature | -22°F (-30°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 10% to 90% |
| Physical Characteristics | |
| Form Factor | Fixed Mount |
| Color Family | Black |
| Product Color | Black |
| Durability | Dust Resistant |
| Height | 1.89" (48.01 mm) |
| Width | 3.32" (84.33 mm) |
| Depth | 4.90" (124.46 mm) |
| Weight (Approximate) | 7.44 oz (210.920452 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Healthcare,Retail,Manufacturing,Transportation,Logistics |
| Country of Origin | Japan |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
User-Manual
Additional-pdf2
[/custom-user-manual]
