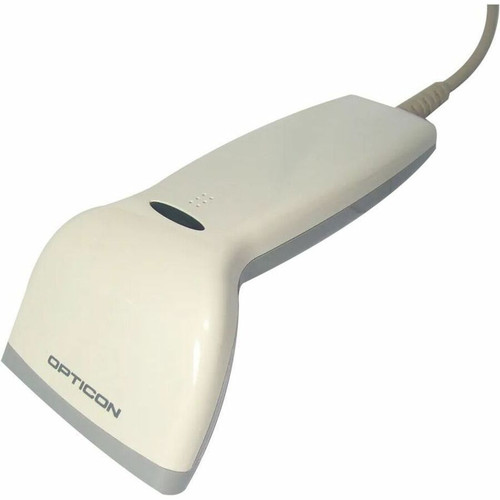

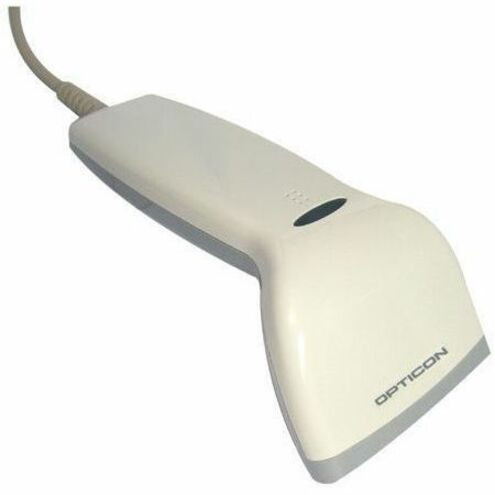

Opticon C-37 Barcode Scanner Kit - Cable Connectivity - 200 scan/s - 0.59" (14.99 mm) Scan Distance - 1D - LED - CCD, Imager - Linear (C37WU1-00)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- AN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 Databar (RSS)
- IATA
- Industrial 2 of 5
- Interleaved 2 of 5
- ISBN-ISSM-ISSN
- Matrix 2 of 5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plesse
- Chinese Post
- Korean Postal Authority Code
- 1.5 m / 5 ft drop onto concrete surface
- C-37 Barcode Scanner
- USB Cable
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
1D:
Postal Code:
Light Source: LED
Image Sensor Type: CCD,Imager
Scan Rate: 200 scan/s
Scan Mode: Trigger
Scan Pattern: Linear
Scanner Range: Standard Range
Scanning Distance: 0.59" (14.99 mm)
Number of Keys: 1
Cable Type Included: USB
Reading Angle (Skew): 70°
Reading Angle (Pitch): 30°
Maximum Ambient Light: 10000 lux
Drop Specification:
Features: Notification LED,Vibration,Ergonomic Design
Host Interface: USB,Keyboard Wedge
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Handheld
Rugged: Yes
Color Family: White
Product Color: White
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Durability: Dust Resistant,Water Resistant
Height: 2.95" (75 mm)
Width: 2.09" (53 mm)
Depth: 5.91" (150 mm)
Weight (Approximate): 3.17 oz (90 g)
Package Contents:
Ingress Protection (IP) Rating: IP42
Application/Usage: Healthcare,Retail,Self-checkout,Commercial Service
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- Scan barcodes with a staggering speed of 200 scan/s
- Laser-free design provides high-performance scanning without the risk of eye injury
- Wired connectivity makes this scanner ideal for retail and desktop applications
[custom-specifications]
| Specifications | |
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | C37WU1-00 |
| Manufacturer Website Address | http://www.opticon.com |
| Brand Name | Opticon |
| Product Model | C-37 |
| Product Name | C-37 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D:
Postal Code:
|
| Light Source | LED |
| Image Sensor Type | CCD,Imager |
| Scan Rate | 200 scan/s |
| Scan Mode | Trigger |
| Scan Pattern | Linear |
| Scanner Range | Standard Range |
| Scanning Distance | 0.59" (14.99 mm) |
| Number of Keys | 1 |
| Cable Type Included | USB |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 30° |
| Maximum Ambient Light | 10000 lux |
| Drop Specification |
|
| Features | Notification LED,Vibration,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | USB,Keyboard Wedge |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | White |
| Product Color | White |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Durability | Dust Resistant,Water Resistant |
| Height | 2.95" (75 mm) |
| Width | 2.09" (53 mm) |
| Depth | 5.91" (150 mm) |
| Weight (Approximate) | 3.17 oz (90 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Healthcare,Retail,Self-checkout,Commercial Service |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
