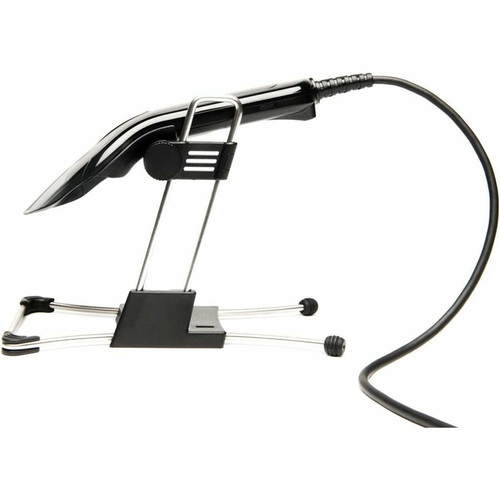

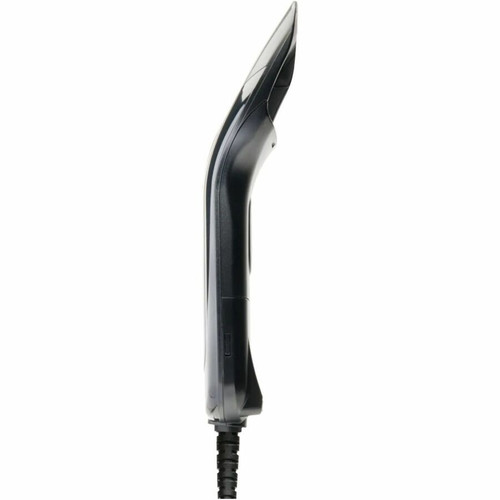

Opticon L-22X 2D CMOS Image Scanner - Cable Connectivity - 12.51" (317.75 mm) Scan Distance - 1D, 2D - LED - Imager - USB - White - - (L22XWU1-03)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- UPC-A
- UPC-E
- UPC-E1
- UPC-A Add-on
- UPC-E Add-on
- EAN-13
- EAN-8
- EAN-13 Add-on/EAN-8 Add-on
- JAN-8
- JAN-13
- Code 39
- Tri-Optic
- Codabar
- Industrial 2 of 5
- Interleaved 2 of 5
- S-code
- Code 93
- Code 128
- GS1-128
- IATA
- MSI/Plessey
- UK/Plessey
- Telepen
- Code 11
- Matrix 2 of 5
- PDF417
- MicroPDF417
- Codablock F
- QR Code
- Micro QR Code
- Data Matrix (ECC 200)
- Maxi Code (Modes 2 to 5)
- Aztec Code
- Chinese Sensible Code
- OCR-B
- Chinese Post Matrix 2of5
- Korean Postal Authority code
- Japanese Postal
- Intelligent Mail Barcode
- POSTNET
- PLANET
- Netherlands KIX Code
- Australian Postal
- UK Postal
- 4-State Mailmark Barcode
- L-22X 2D CMOS Image Scanner
- Stand
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported: BARCODE (1D):
Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scanning Distance: 12.51" (317.75 mm)
Stand Included: Yes
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 100 in/s (2540 mm/s)
Maximum Ambient Light: 100000 lux
Drop Specification:
5 ft (1.5 m) drop onto concrete surface
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 6.70 mil (0.17 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Maximum Element Resolution (PDF417): 10 mil (0.25 mm)
Features: Ergonomic Design,Curved,Vibration
Flash Memory: 1 GB
Processor Speed: 800 MHz
Host Interface: USB
Input Current: 340 mA
Operating Temperature: 23°F (-5°C) to 122°F (50°C)
Storage Temperature: -22°F (-30°C) to 140°F (60°C)
Humidity (Non-condensing): 0% to 90%
Form Factor: Handheld
Color Family: White
Product Color: White
Product Material: ABS/PC
Durability: Dust Resistant
Height: 2.45" (62.20 mm)
Width: 6.51" (165.30 mm)
Depth: 1.24" (31.40 mm)
Weight (Approximate): 5.29 oz (150 g)
Package Contents:
Ingress Protection (IP) Rating: IP42
Application/Usage: Hospitality
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Laser-free design provides high-performance scanning without the risk of eye injury
- Wired connectivity makes this scanner ideal for retail and desktop applications
[custom-specifications]
| Specifications | |
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | L22XWU1-03 |
| Manufacturer Website Address | http://www.opticon.com |
| Brand Name | Opticon |
| Product Model | L-22X |
| Product Name | L-22X 2D CMOS Image Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | BARCODE (1D):
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scanning Distance | 12.51" (317.75 mm) |
| Stand Included | Yes |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 100 in/s (2540 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 5 ft (1.5 m) drop onto concrete surface |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 6.70 mil (0.17 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Features | Ergonomic Design,Curved,Vibration |
| Memory | |
| Flash Memory | 1 GB |
| Processor & Chipset | |
| Processor Speed | 800 MHz |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Input Current | 340 mA |
| Environmental Conditions | |
| Operating Temperature | 23°F (-5°C) to 122°F (50°C) |
| Storage Temperature | -22°F (-30°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 0% to 90% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | White |
| Product Color | White |
| Product Material | ABS/PC |
| Durability | Dust Resistant |
| Height | 2.45" (62.20 mm) |
| Width | 6.51" (165.30 mm) |
| Depth | 1.24" (31.40 mm) |
| Weight (Approximate) | 5.29 oz (150 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Hospitality |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
