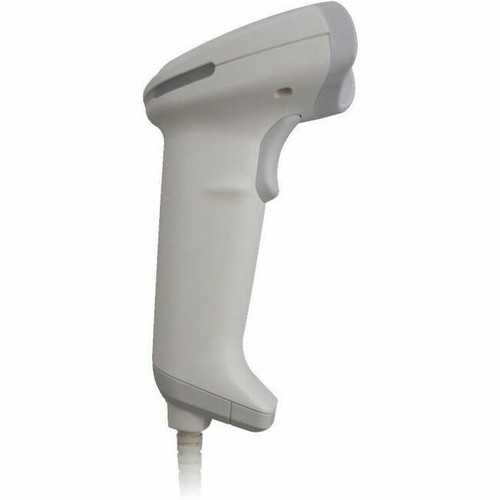

Opticon L-46X 2D CMOS Imager Scanner - Cable Connectivity - 100 scan/s - 12.99" (329.95 mm) Scan Distance - 1D, 2D - LED - Imager, - - (L46XWU1-02)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- UPC-A, UPC-E, UPC-E1, UPC-A Add-on, UPC-E Add-on, EAN-13, EAN-8, EAN-13 Add-on/EAN-8 Add-on, JAN-8, JAN-13, Code 39, NW-7 (Codabar), Industrial 2 of 5, Interleaved 2 of 5, Code 93, Code 128, GS1-128, MSI/Plessey, Code 11, OCR-B
- Japanese Postal, Intelligent Mail Barcode, POSTNET, PLANET, Netherlands KIX Code, UK Postal, Australian Postal, Korean Postal Authority code
- GS1 DataBar, GS1 DataBar Limited,GS1 DataBar Expanded, Composite GS1 DataBar, Composite GS1-128 , Composite EAN , Composite UPC BARCODE(2D): PDF417, MicroPDF417, Codablock F, DataMatrix (ECC 200), DotCode, QR Code , Micro QR Code, MaxiCode, Aztec Code, Chinese Sensible Code
- L-46X 2D CMOS Imager Scanner
- Stand
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
POSTAL CODE:
BARCODE (GS1):
Light Source: LED
Image Sensor Type: Imager,CMOS
Scan Rate: 100 scan/s
Scan Mode: Trigger
Scan Pattern: Single Pass
Scanning Distance: 12.99" (329.95 mm)
Number of Keys: 1
Stand Included: Yes
Field of View (Horizontal): 38°
Field of View (Vertical): 26°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:
6 ft (1.8 m) drop onto concrete surface
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 5 mil (0.13 mm)
Maximum Element Resolution (PDF417): 10 mil (0.25 mm)
Image Sensor Resolution: 640 x 480
Features: Beep,Notification LED,Ergonomic Design
Processor Speed: 800 MHz
Host Interface: USB
Input Current: 300 mA
Operating Temperature: 23°F (-5°C) to 122°F (50°C)
Storage Temperature: -22°F (-30°C) to 140°F (60°C)
Humidity (Non-condensing): 0% to 90%
Form Factor: Handheld
Color Family: White
Product Color: White
Durability: Dust Resistant
Height: 6.04" (153.40 mm)
Width: 4.15" (105.40 mm)
Depth: 2.36" (60 mm)
Weight (Approximate): 3.95 oz (112 g)
Package Contents:
Ingress Protection (IP) Rating: IP42
Application/Usage: Retail,Warehouse,Distribution,Transportation,Logistics
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Scan barcodes with a staggering speed of 100 scan/s
- Laser-free design provides high-performance scanning without the risk of eye injury
- Wired connectivity makes this scanner ideal for retail and desktop applications
[custom-specifications]
| Specifications | |
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | L46XWU1-02 |
| Manufacturer Website Address | http://www.opticon.com |
| Brand Name | Opticon |
| Product Series | L-46 |
| Product Model | L-46X |
| Product Name | L-46X 2D CMOS Imager Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
POSTAL CODE:
BARCODE (GS1):
|
| Light Source | LED |
| Image Sensor Type | Imager,CMOS |
| Scan Rate | 100 scan/s |
| Scan Mode | Trigger |
| Scan Pattern | Single Pass |
| Scanning Distance | 12.99" (329.95 mm) |
| Number of Keys | 1 |
| Stand Included | Yes |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 26° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 6 ft (1.8 m) drop onto concrete surface |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 640 x 480 |
| Features | Beep,Notification LED,Ergonomic Design |
| Processor & Chipset | |
| Processor Speed | 800 MHz |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Input Current | 300 mA |
| Environmental Conditions | |
| Operating Temperature | 23°F (-5°C) to 122°F (50°C) |
| Storage Temperature | -22°F (-30°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 0% to 90% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | White |
| Product Color | White |
| Durability | Dust Resistant |
| Height | 6.04" (153.40 mm) |
| Width | 4.15" (105.40 mm) |
| Depth | 2.36" (60 mm) |
| Weight (Approximate) | 3.95 oz (112 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Retail,Warehouse,Distribution,Transportation,Logistics |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
