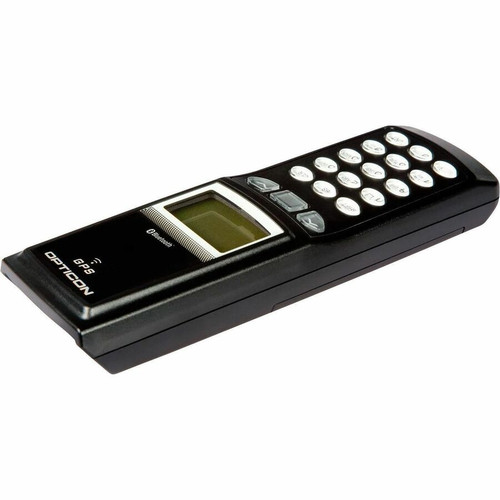

Opticon OPL-9815 Mobile Data Collector - Wireless Connectivity - 100 scan/s - 11.81" (299.97 mm) Scan Distance - 1D - Laser - - Black (OPL-9815-SK1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN -128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
- Chinese Post, Korean Postal Authority code
Connectivity Technology: Wireless
Scanning Capability: 1D
Barcode Symbology Supported:
1D:
Postal Codes:
Light Source: Laser
Scan Rate: 100 scan/s
Scanning Distance: 11.81" (299.97 mm)
Display Screen: Yes
Number of Keys: 18
Keypad Type: Alphanumeric
Reading Angle (Skew): 50°
Reading Angle (Pitch): 25°
Maximum Ambient Light: 50000 lux
Drop Specification:
5 ft (1.5 m) drop onto concrete surface
Minimum Element Resolution (Code 39): 6 mil (0.15 mm)
Maximum Element Resolution (Code 39): 39 mil (0.99 mm)
Features: GPS
Standard Memory: 512 MB
Flash Memory: 1 MB
Processor Speed: 96 MHz
Bluetooth: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 1100 mAh
Maximum Battery Run Time: 72 Hour
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing): 20% to 85%
Rugged: Yes
Color Family: Black
Product Color: Black
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Durability: Dust Resistant
Height: 5.51" (139.95 mm)
Width: 1.73" (43.94 mm)
Depth: 0.87" (22.10 mm)
Weight (Approximate): 4.10 oz (116.23 g)
Ingress Protection (IP) Rating: IP54
Application/Usage: Logistics,Warehouse,Retail,Inventory
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Scan barcodes with a staggering speed of 100 scan/s
- Powerful laser scan source provides 100 scan/s decode rate
- Increase productivity and performance by excluding the cable
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | OPL-9815-SK1 |
| Manufacturer Website Address | http://www.opticon.com |
| Brand Name | Opticon |
| Product Model | OPL-9815 |
| Product Name | OPL-9815 Mobile Data Collector |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D:
Postal Codes:
|
| Light Source | Laser |
| Scan Rate | 100 scan/s |
| Scanning Distance | 11.81" (299.97 mm) |
| Display Screen | Yes |
| Number of Keys | 18 |
| Keypad Type | Alphanumeric |
| Reading Angle (Skew) | 50° |
| Reading Angle (Pitch) | 25° |
| Maximum Ambient Light | 50000 lux |
| Drop Specification | 5 ft (1.5 m) drop onto concrete surface |
| Minimum Element Resolution (Code 39) | 6 mil (0.15 mm) |
| Maximum Element Resolution (Code 39) | 39 mil (0.99 mm) |
| Features | GPS |
| Memory | |
| Standard Memory | 512 MB |
| Flash Memory | 1 MB |
| Processor & Chipset | |
| Processor Speed | 96 MHz |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 1100 mAh |
| Maximum Battery Run Time | 72 Hour |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 20% to 85% |
| Physical Characteristics | |
| Rugged | Yes |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Durability | Dust Resistant |
| Height | 5.51" (139.95 mm) |
| Width | 1.73" (43.94 mm) |
| Depth | 0.87" (22.10 mm) |
| Weight (Approximate) | 4.10 oz (116.23 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Application/Usage | Logistics,Warehouse,Retail,Inventory |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
