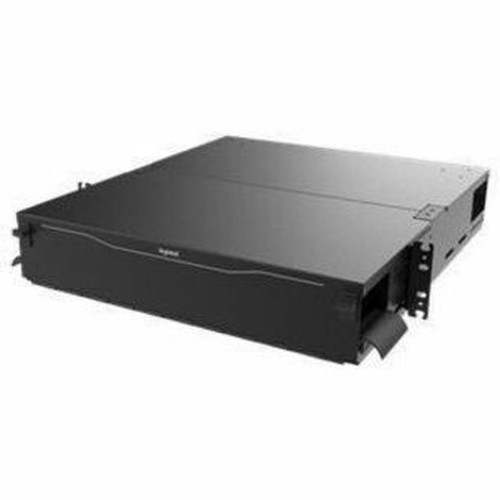

Ortronics EQ02U-CHC Q-Series 2U Rack-Mount Fiber Enclosure - Standard Density - Black Steel - Front/Rear Doors - Removable Covers
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This enclosure features a robust steel construction with a black finish, ensuring durability and a professional appearance. It includes front and rear doors for easy access to internal components, along with removable panels and covers that simplify cable patching and maintenance.
The design incorporates tool-less, 60/40 split-top removable covers, allowing quick access from above without specialized tools. Rack-mount brackets with an open-ended ear design enable one-person installation by resting the enclosure on pre-mounted screws in the rack.
This section brings together practical product details such as Application/Usage, Features, Form Factor, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Ortronics EQ02U-CHC offers significant advantages for fiber management, focusing on accessibility, installation ease, and compatibility. Its design reduces downtime and labor costs during setup and maintenance.
High Accessibility
Front and rear doors, along with removable top panels, provide ample access for cable patching and dressing, minimizing disruption during upgrades or repairs.
Simplified Installation
Open-ended ear brackets allow the enclosure to rest on pre-mounted rack screws, enabling quick, one-person installation without complex tools or alignment.
Versatile Compatibility
Supports OFP adapter panels, M2 pre-terminated cassettes, and M2 splice cassettes, accommodating various fiber types and connector configurations for flexible network designs.
Deployment / Use Cases
This enclosure is suited for environments requiring organized fiber optic cable management, such as data centers, enterprise server rooms, and telecommunications facilities. It helps maintain cable integrity and reduces clutter in high-density rack setups.
Use cases include housing fiber patch panels, managing backbone connections between switches and servers, and supporting fiber-to-the-desk installations in office buildings. Its compatibility with multiple cassette types makes it adaptable for both pre-terminated and spliced fiber applications.
Physical Profile
The enclosure measures 3.50" in height, 17.12" in width, and 19.13" in depth, fitting standard 19-inch rack widths. Its 2U rack height optimizes space usage while providing sufficient internal volume for cable management. The black steel finish ensures a sleek, professional look that blends with most rack environments.
- Width
- 17.12" (434.85 mm)
- Depth
- 19.13" (485.90 mm)
- Height
- 3.50" (88.90 mm)
Highlights
- 2U rack-mount fiber enclosure for standard-density applications
- Black steel construction with front and rear doors for easy access
- Removable top covers with tool-less, 60/40 split design
- Compatible with OFP adapter panels and M2 cassettes
- Open-ended ear brackets enable one-person installation
- Supports high fiber counts: up to 72 LC fibers per RU
- RoHS compliant and made in Mexico
- Dimensions: 3.50" H x 17.12" W x 19.13" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | EQ02U-CHC |
| Brand Name | Ortronics |
| Product Series | Q |
| Product Name | 2 RU Q-Series Standard Density Rack-Mount Fiber Enclosure |
| Packaged Quantity | 1 |
| Product Type | Rack Mount Enclosure |
| Technical Information | |
| Application/Usage | Rack,Fiber Optic Cable Manager,Cassette |
| Features | Front Door,Rear Door,Removable Panel,Removable Cover |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Height | 3.50" (88.90 mm) |
| Width | 17.12" (434.85 mm) |
| Depth | 19.13" (485.90 mm) |
| Rack Height | 2U |
| Miscellaneous | |
| Country of Origin | Mexico |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the rack height of the Ortronics EQ02U-CHC enclosure?
The Ortronics EQ02U-CHC has a 2U rack height, meaning it occupies two rack units in a standard 19-inch server rack. This compact size allows for efficient use of rack space while providing ample internal volume for fiber cable management and component installation.
What materials is this fiber enclosure made from?
This enclosure is constructed from steel with a black finish, offering durability and protection for fiber optic components. The steel build ensures structural integrity in rack environments, and the black color provides a professional appearance that matches typical data center equipment.
How does the enclosure facilitate easy installation?
The enclosure features rack-mount brackets with an open-ended ear design, allowing it to rest on pre-mounted screws in the rack for straightforward, one-person installation. This design eliminates the need for holding the enclosure in place while securing it, reducing installation time and effort.
What types of fiber components are compatible with this enclosure?
The Ortronics EQ02U-CHC is compatible with OFP adapter panels, M2 pre-terminated cassettes, and M2 splice cassettes. This versatility supports various fiber optic connector types and configurations, making it suitable for both pre-terminated and field-spliced fiber applications in network deployments.
What are the maximum fiber counts supported per rack unit?
This enclosure supports up to 36 fibers per rack unit with SC connectors, 72 fibers with LC connectors, 288 fibers with 12F MPO connectors, and 576 fibers with 24F MPO connectors. It can accommodate up to three cassette or adapter panels per rack unit, enabling high-density fiber management.
Does this enclosure include any environmental certifications?
Yes, the Ortronics EQ02U-CHC is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets environmental standards by limiting the use of specific hazardous materials. It is manufactured in Mexico, ensuring quality production in compliance with international regulations.
