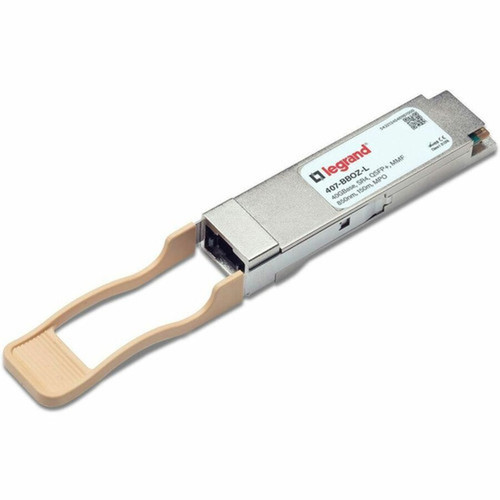

Ortronics 407-BBOZ-OP Dell QSFP+ Module - MPO/MTP 40GBase-SR4 - 40GbE - Multi-mode Fiber - 0. 15 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This QSFP+ module operates on the 40GBase-SR4 standard, which utilizes parallel optics to achieve a maximum data transfer rate of 40 Gbit/s. It is optimized for multi-mode fiber optic cables, supporting transmission distances up to 0.15 km (0.09 miles). The MPO/MTP connector provides a robust interface for high-speed optical links, reducing signal loss and maintaining data integrity across network segments.
The module's electrical interface complies with QSFP+ MSA specifications, ensuring interoperability with compliant host devices. It supports digital diagnostic monitoring (DDM) functions, allowing network administrators to monitor real-time performance metrics such as temperature, voltage, and optical power levels. This capability enhances network management and proactive maintenance in dynamic IT environments.
Key Product Advantages
The Ortronics Dell QSFP+ Module offers several advantages for network infrastructure deployments. Its 40GbE capability enables efficient handling of bandwidth-intensive applications, such as data center interconnects, high-performance computing, and storage area networks. The use of multi-mode fiber provides a cost-effective solution for short-reach connections without sacrificing speed or reliability.
High-Density Connectivity
The MPO/MTP connector supports parallel optics, allowing multiple fibers in a single interface. This design maximizes port density in network switches and routers, optimizing rack space and simplifying cable management in crowded data center environments.
Enhanced Network Performance
With a 40 Gbit/s data rate, this module reduces latency and increases throughput for critical network traffic. It is ideal for aggregating multiple 10GbE links or supporting emerging 40GbE standards, future-proofing network investments.
Reliability and Compliance
Built to industry standards, the module includes DDM for real-time monitoring and is RoHS compliant. The lifetime warranty underscores its durability and long-term value in continuous-operation networks.
Deployment / Use Cases
This QSFP+ module is versatile for various network scenarios. In data centers, it connects top-of-rack switches to spine switches or aggregates server connections, supporting high-bandwidth applications like virtualization, cloud services, and big data analytics. For enterprise networks, it facilitates backbone links between distribution layers, ensuring smooth data flow across campuses or large office buildings.
In storage environments, the module enables fast connections between SAN switches and storage arrays, improving data access speeds for backup and retrieval operations. It is also suitable for high-performance computing clusters where low-latency, high-throughput interconnects are essential for parallel processing tasks. The multi-mode fiber compatibility makes it a practical choice for intra-building or intra-campus deployments up to 150 meters.
Data Center Interconnect
Use this module to link 40GbE switches within a data center, creating a high-speed fabric for server-to-server and storage networking. Its MPO/MTP interface simplifies cabling in structured environments.
Network Aggregation
Aggregate multiple 10GbE links into a single 40GbE uplink, reducing port count and complexity in network design. This is effective for consolidating traffic from access switches to core routers.
Physical Profile
The module has a compact design with dimensions of 0.33" (8.50 mm) in height, 0.72" (18.35 mm) in width, and 2.79" (70.90 mm) in depth. This small form factor allows for high-density installations in network equipment without obstructing airflow or adjacent ports. The robust construction ensures reliable operation in standard operating temperatures, typical for data center and enterprise environments.
- Width
- 0.72" (18.35 mm)
- Depth
- 2.79" (70.90 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- QSFP+ form factor for 40 Gigabit Ethernet networks
- MPO/MTP connector supporting 40GBase-SR4 technology
- Multi-mode fiber optic compatibility up to 0.15 km
- Maximum data transfer rate of 40 Gbit/s
- Hot-pluggable design for easy installation and maintenance
- Digital diagnostic monitoring (DDM) for real-time performance tracking
- RoHS compliant and environmentally friendly
- Lifetime warranty for long-term reliability
- Compatible with switches, routers, and servers
- Compact dimensions for high-density deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 407-BBOZ-OP |
| Brand Name | Ortronics |
| Product Name | Dell QSFP+ Module |
| Product Type | QSFP+ |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | MPO/MTP |
| Interfaces/Ports Details | 1 x MPO/MTP 40GBase-SR4 Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Technology | 40GBase-SR4 |
| Maximum Distance Supported | 0.15 km (0.09 Mile) |
| Maximum Data Transfer Rate | 40 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.72" (18.35 mm) |
| Depth | 2.79" (70.90 mm) |
| Miscellaneous | |
| Compatibility | Switches Routers Servers |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum distance this QSFP+ module supports?
This module supports a maximum distance of 0.15 km (0.09 miles) over multi-mode fiber optic cable. This reach is typical for 40GBase-SR4 applications, making it suitable for short-reach connections within data centers, campus networks, or enterprise buildings where high-speed links are required over limited distances.
Is this module compatible with Dell switches?
Yes, the Ortronics 407-BBOZ-OP is designed as a Dell QSFP+ Module and is compatible with Dell switches that support QSFP+ interfaces and 40GBase-SR4 technology. It also works with other brands of switches, routers, and servers that adhere to QSFP+ MSA standards, but always verify compatibility with your specific device model before deployment.
Does this module support digital diagnostic monitoring (DDM)?
Yes, this QSFP+ module includes digital diagnostic monitoring (DDM) capabilities. DDM allows network administrators to monitor real-time parameters such as temperature, supply voltage, laser bias current, and transmitted/received optical power. This feature aids in proactive network management, troubleshooting, and ensuring optimal performance in dynamic IT environments.
What type of fiber optic cable should I use with this module?
Use multi-mode fiber optic cables with MPO/MTP connectors that are rated for 40GBase-SR4 applications. The module is optimized for OM3 or OM4 multi-mode fibers, which support the 850 nm wavelength and provide the necessary bandwidth for 40 Gbit/s transmission over distances up to 0.15 km. Ensure cables are properly terminated and certified for high-speed networks to maintain signal integrity.
