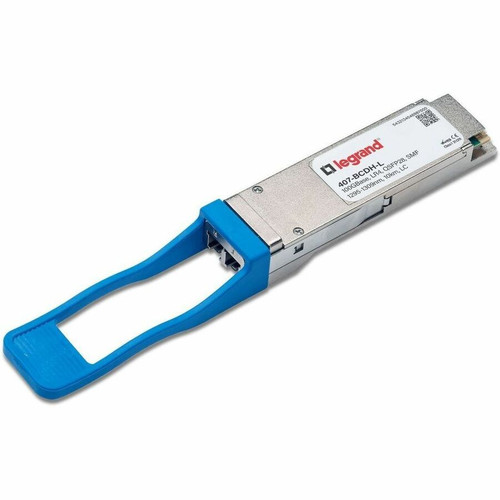

Ortronics Dell QSFP28 Module - For Optical Network, Data Networking - 1 x LC Duplex 100GBase-LR4 Network - Optical Fiber - Single-mode (407-BCDH-OP)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Switches
- Routers
- Servers
Application/Usage: Optical Network,Data Networking
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 100GBase-LR4 Network
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-LR4
Maximum Distance Supported: 10 km (6.21 Mile)
Maximum Data Transfer Rate: 100 Gbit/s
Height: 0.33" (8.50 mm)
Width: 0.72" (18.35 mm)
Depth: 4.94" (125.35 mm)
Compatibility:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
- With 100GBase-LR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
- Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
[custom-specifications]
| Specifications | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 407-BCDH-OP |
| Manufacturer Website Address | http://www.legrand.com |
| Brand Name | Ortronics |
| Product Name | Dell QSFP28 Module |
| Product Type | QSFP28 |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 100GBase-LR4 Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-LR4 |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.72" (18.35 mm) |
| Depth | 4.94" (125.35 mm) |
| Miscellaneous | |
| Compatibility | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
