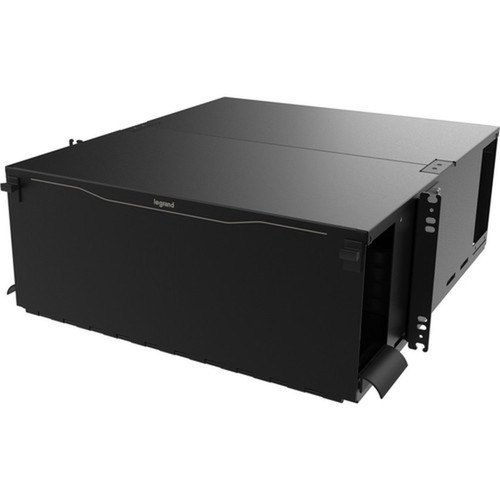

Ortronics EQ04U-CVC Q-Series 4U Rackmount Enclosure - Steel - Black - 7" Height - 19. 13" Depth
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The EQ04U-CVC features a 4U rack height, occupying 7 inches of vertical space in a standard 19-inch rack. Its dimensions of 17.30 inches wide and 19.13 inches deep provide ample internal room for cable routing and component mounting, while the 12-pound weight ensures stability without excessive bulk.
The enclosure includes front and rear doors for full access, along with removable top panels that facilitate easy cable patching and dressing. The rack-mount brackets utilize an open-ended ear design, allowing the enclosure to rest on pre-mounted screws for straightforward one-person installation.
This section brings together practical product details such as Rack Type, Application/Usage, Features, Form Factor, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This enclosure streamlines network infrastructure deployment with design features that enhance accessibility, simplify installation, and ensure compatibility with Ortronics Q-Series components.
High Accessibility
Front and rear doors combined with removable top panels provide extensive access for cable management and component servicing, reducing downtime during maintenance.
- Tool-less 60/40 split-top design
- Full front and rear door access
Simplified Installation
The open-ended ear brackets allow the enclosure to rest on pre-mounted rack screws, enabling secure one-person installation without additional hardware.
- Open-ended ear design
- One-person installation capability
Deployment / Use Cases
The EQ04U-CVC is ideal for data centers, server rooms, and network closets where organized fiber optic cable management is critical. It serves as a centralized enclosure for patch panels and cassettes, protecting connections from dust and physical damage while maintaining a tidy cabling environment.
Common applications include housing Ortronics OFP adapter panels for fiber optic patching, M2 pre-terminated cassettes for quick deployment, and M2 splice cassettes for fiber splicing operations. Its enclosed design makes it suitable for environments requiring enhanced security and protection for networking components.
Data Center Rack Integration
Mount this enclosure in standard 19-inch racks to consolidate fiber optic management, reducing clutter and improving airflow in high-density server environments.
Structured Cabling Projects
Use as a foundation for new or upgraded cabling systems, supporting various Ortronics Q-Series components for flexible and scalable network infrastructure.
Physical Profile
The enclosure is constructed from durable steel with a black finish, matching standard rack equipment aesthetics. Its 7-inch height, 17.30-inch width, and 19.13-inch depth provide a compact yet spacious interior for component mounting and cable management. The design includes removable panels and doors for easy access, while the 12-pound weight ensures it remains secure in rack installations without requiring heavy-duty support.
- Width
- 17.30" (439.42 mm)
- Depth
- 19.13" (485.90 mm)
- Height
- 7" (177.80 mm)
- Weight
- 12 lb (5443.11 g)
Highlights
- 4U rack height for compact vertical space usage in standard 19-inch racks
- Steel construction with black finish for durability and professional appearance
- Front and rear doors with removable top panels for high accessibility during maintenance
- Open-ended ear brackets enable one-person installation on pre-mounted rack screws
- Compatible with Ortronics OFP adapter panels, M2 pre-terminated cassettes, and M2 splice cassettes
- Tool-less 60/40 split-top design for easy access from above
- Dimensions: 7" height, 17.30" width, 19.13" depth for ample internal space
- Weight of 12 pounds ensures stability without excessive bulk
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | EQ04U-CVC |
| Brand Name | Ortronics |
| Product Series | Q |
| Product Name | Enclosure, Q-Series, Rackmount, 4U |
| Product Type | Rack Mount Enclosure |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Fiber Optic Cable Manager,Patch Panel,Networking,Cassette |
| Features | Removable Panel |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Height | 7" (177.80 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 19.13" (485.90 mm) |
| Rack Height | 4U |
| Weight (Approximate) | 12 lb (5443.11 g) |
| Miscellaneous | |
| Country of Origin | China |
User Manual
FAQ
What is the rack height of the Ortronics EQ04U-CVC enclosure?
The Ortronics EQ04U-CVC enclosure has a 4U rack height, occupying 7 inches of vertical space in a standard 19-inch rack. This compact size allows efficient use of rack space while providing ample internal room for cable management and component mounting.
What materials and color is this enclosure made from?
This enclosure is constructed from durable steel with a black finish. The steel material ensures robustness and protection for internal components, while the black color matches standard rack equipment for a cohesive professional appearance in data center environments.
How does the installation process work for this rackmount enclosure?
Installation is simplified with open-ended ear brackets that allow the enclosure to rest on pre-mounted screws in the rack. This design enables secure one-person installation without needing additional hardware, making it straightforward to deploy in existing rack infrastructure.
What types of components is this enclosure compatible with?
The enclosure is compatible with Ortronics Q-Series components, including OFP adapter panels for fiber optic patching, M2 pre-terminated cassettes for quick deployment, and M2 splice cassettes for fiber splicing operations. This versatility supports various structured cabling needs.
What accessibility features does this enclosure offer for maintenance?
It features front and rear doors along with removable top panels, providing extensive access for cable patching, dressing, and component servicing. The tool-less 60/40 split-top design allows easy access from above, reducing downtime during maintenance tasks.
What are the dimensions and weight of this enclosure?
The enclosure measures 7 inches in height, 17.30 inches in width, and 19.13 inches in depth, offering a spacious interior for components. It weighs approximately 12 pounds, providing stability in rack mounts without being overly heavy for handling during installation.
