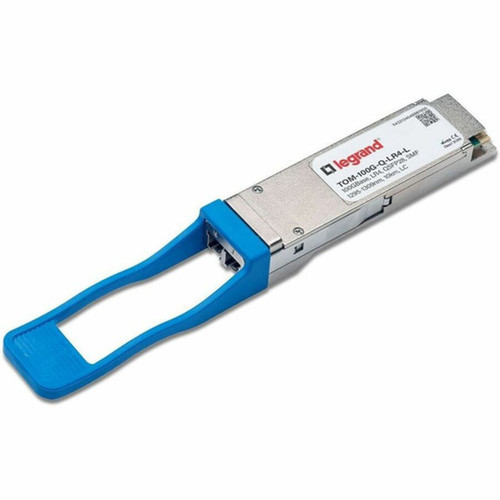

Ortronics TOM-100G-Q-LR4-A Infinera QSFP28 Module - 100GBase-LR4 - LC Duplex - 10 km Reach - Single-mode Fiber
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This QSFP28 optical module operates on the 100GBase-LR4 Ethernet standard, utilizing four wavelengths to achieve aggregate throughput of 100 Gbps over a single fiber pair. The LC duplex connector design provides a familiar, reliable interface that is widely adopted in fiber optic installations, ensuring compatibility with existing patch panels and cabling infrastructure.
The module supports single-mode fiber, which is optimized for long-distance transmission with low attenuation and high bandwidth. It is engineered for 10 km reach, enabling extended network segments without signal degradation. The transceiver is hot-pluggable, allowing for installation and replacement without powering down network equipment, which minimizes downtime during maintenance or upgrades.
Key Product Advantages
The Ortronics Infinera QSFP28 Module delivers significant advantages for high-speed network deployments. Its 100GBase-LR4 technology provides a future-proof foundation for bandwidth-intensive applications, while the extended 10 km reach supports flexible network design across dispersed locations.
High-Speed Performance
Achieves 100 Gbit/s data transfer rates, enabling rapid data movement for cloud computing, storage area networks (SAN), and high-performance computing (HPC) environments.
- Aggregate throughput of 100 Gbps
- Low-latency optical transmission
- Ideal for data center interconnects
Long-Distance Reliability
Supports single-mode fiber with a reach of 10 km, ensuring signal integrity over extended distances without the need for signal regeneration.
- 10 km maximum distance
- Minimal signal loss over fiber
- Suitable for MAN and campus networks
Deployment / Use Cases
This optical transceiver is tailored for scenarios demanding high bandwidth and reliable long-distance connectivity. It serves as a critical component in modern network architectures where speed and reach are paramount.
In data center environments, the module facilitates spine-leaf topologies and inter-rack connectivity, supporting virtualization, big data analytics, and content delivery networks. For telecommunications and service providers, it enables high-capacity backbone links between central offices and aggregation points, ensuring seamless service delivery. Enterprise campus networks benefit from its ability to connect buildings across a wide area, supporting unified communications, video conferencing, and centralized storage access.
Physical Profile
The module features a compact QSFP28 form factor with dimensions of 0.33" (8.50 mm) in height, 0.72" (18.35 mm) in width, and 4.94" (125.35 mm) in depth. This standardized size ensures compatibility with QSFP28 ports on switches, routers, and network interface cards. The design supports high-density installations, allowing multiple transceivers to be deployed in limited rack space. The module is hot-pluggable, enabling easy installation and maintenance without disrupting network operations.
- Width
- 0.72" (18.35 mm)
- Depth
- 4.94" (125.35 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- QSFP28 form-factor optical transceiver for 100 Gigabit Ethernet networks
- 100GBase-LR4 technology delivers data transfer rates up to 100 Gbit/s
- LC duplex connector interface for reliable fiber optic connectivity
- Supports single-mode fiber with a maximum reach of 10 km (6.21 miles)
- Hot-pluggable design allows installation without network downtime
- Ideal for data networking and optical network applications
- RoHS compliant and environmentally friendly
- Backed by a lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | TOM-100G-Q-LR4-A |
| Brand Name | Ortronics |
| Product Name | Infinera QSFP28 Module |
| Product Type | QSFP28 |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 100GBase-LR4 Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-LR4 |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.72" (18.35 mm) |
| Depth | 4.94" (125.35 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer rate of this QSFP28 module?
The Ortronics Infinera QSFP28 Module supports a maximum data transfer rate of 100 Gbit/s. This high-speed performance is achieved through 100GBase-LR4 technology, which aggregates four wavelengths to deliver 100 Gbps throughput over a single fiber pair, making it suitable for bandwidth-intensive applications like data center interconnects and high-capacity network backbones.
What type of fiber and connector does this module use?
This module uses single-mode fiber optic cabling with LC duplex connectors. The LC connector interface provides precise alignment for minimal signal loss, while single-mode fiber is optimized for long-distance transmission, supporting a reach of up to 10 kilometers (6.21 miles) with low attenuation and high bandwidth integrity.
What is the maximum distance supported by this optical transceiver?
The module supports a maximum distance of 10 kilometers (6.21 miles) over single-mode fiber. This extended reach makes it ideal for metropolitan area network (MAN) links, inter-building connections, and campus network deployments where long-distance connectivity is required without signal degradation.
Is this QSFP28 module hot-pluggable?
Yes, this QSFP28 module is hot-pluggable, meaning it can be installed or replaced without powering down the network equipment. This feature minimizes downtime during maintenance, upgrades, or expansions, allowing for flexible and efficient network management in live environments.
