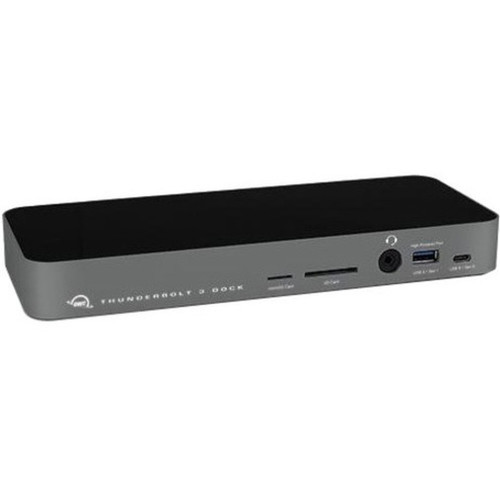

OWC 14-Port Thunderbolt Dock for Mac/PC with 85W Power - Thunderbolt 3 - Ethernet - Reader - USB - Audio - Thunderbolt 3 (40Gb/s) - 1x (OWCTB3DK14PSG)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 14-Port Thunderbolt Dock
- 1 x 0.7M (28") Thunderbolt Cable
- 1 x External Power Supply and Power Cable
- 1 x Quick Start Guide for OWC 14-Port Thunderbolt Dock
- 1 x User Guide for OWC 14-Port Thunderbolt Dock
- 1 x OWC Dock Ejector for Mac and Windows (software download)
- 1 x User Guide for OWC Dock Ejector
- 2 Year OWC Limited Warranty
Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 2
Supported Resolutions: 3840 x 2160,5120 x 2880
Screen Mode Supported: 5K @ 60Hz,4K @ 60Hz
Memory Card Reader: Yes
Memory Card Supported: SD,microSD
Device Supported: Notebook
Ethernet Technology: Gigabit Ethernet
Host Interface: Thunderbolt 3
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 5
Number of USB Type-C Ports: 1
USB Type-C: Yes
USB Type-C Detail: 1 x USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
Number of USB Type-A Ports: 5
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
S/PDIF Out: Yes
Number of Mini DisplayPort: 1
Mini DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Thunderbolt: Yes
Number of Thunderbolt 3 Ports: 1
USB Power Delivery: 85W
Operating System Supported: Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Mac OS X 14.x Sonoma,macOS Sequoia 15,Windows Server 2016,Windows 10,Windows 11
Maximum Power Supply Wattage: 180 W
Product Color: Black,Space Gray
Height: 0.98" (25 mm)
Width: 9.06" (230 mm)
Weight (Approximate): 1.10 lb (500 g)
Package Contents:
Kensington Security Slot: No
Compatibility: Thunderbolt 3 equipped Windows PC or Mac
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Thunderbolt certified for Windows and Mac
- Easily connect all of your peripherals
- 85W of notebook charging power
- Connect two 4K displays or one 5K display
- Works with Millions: no worries or confusion...connect your Thunderbolt 5,
- Thunderbolt 4, Thunderbolt 3, or Thunderbolt 2 machine or device with 100% compatibility
- (5) USB 3.2 (5Gb/s) Type-A ports
- (1) USB 3.2 (10Gb/s) Type-C port
- Thunderbolt cable included
- Innergize™ Enabled: custom OWC software for complete health, performance, and field upgrade management when using OWC Atlas Memory Cards with OWC Atlas Card
- Readers and card reader-equipped products
- 2 Year OWC Limited Warranty
[custom-specifications]
| Specifications | |
| Manufacturer | Other World Computing |
| Manufacturer Part Number | OWCTB3DK14PSG |
| Manufacturer Website Address | https://www.owc.com/ |
| Brand Name | OWC |
| Product Name | 14-Port Thunderbolt Dock |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3840 x 2160,5120 x 2880 |
| Screen Mode Supported | 5K @ 60Hz,4K @ 60Hz |
| Memory Card Reader | Yes |
| Memory Card Supported | SD,microSD |
| Device Supported | Notebook |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 3 |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Type-A Ports | 5 |
| Number of USB Type-C Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible |
| Number of USB Type-A Ports | 5 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| S/PDIF Out | Yes |
| Number of Mini DisplayPort | 1 |
| Mini DisplayPort | Yes |
| Headphone/Microphone Combo Port | Yes |
| Thunderbolt | Yes |
| Number of Thunderbolt 3 Ports | 1 |
| USB Power Delivery | 85W |
| Software | |
| Operating System Supported | Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Mac OS X 14.x Sonoma,macOS Sequoia 15,Windows Server 2016,Windows 10,Windows 11 |
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Physical Characteristics | |
| Product Color | Black,Space Gray |
| Height | 0.98" (25 mm) |
| Width | 9.06" (230 mm) |
| Weight (Approximate) | 1.10 lb (500 g) |
| Miscellaneous | |
| Package Contents | |
| Kensington Security Slot | No |
| Compatibility | Thunderbolt 3 equipped Windows PC or Mac |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
