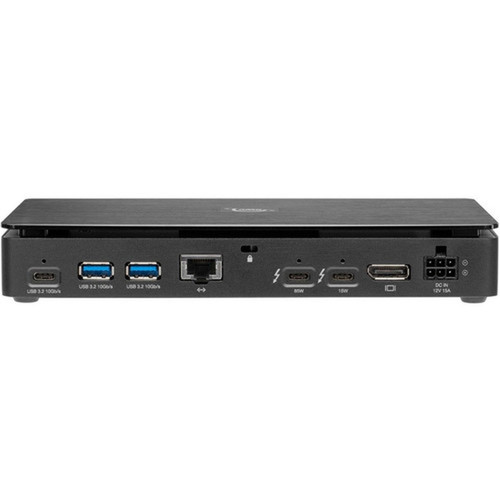

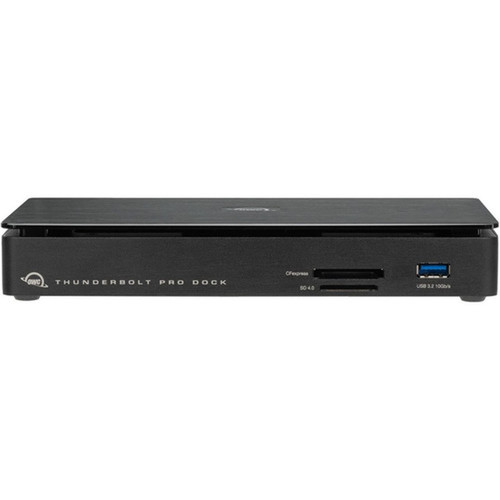

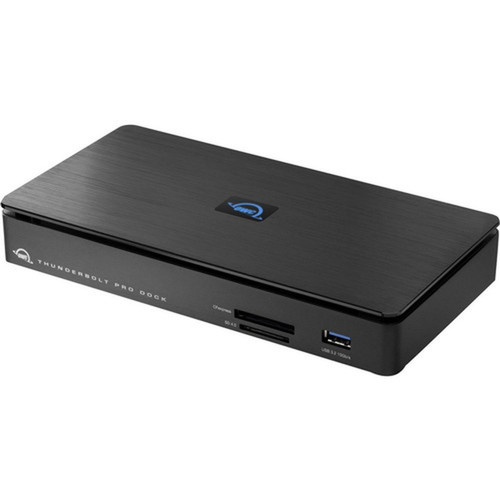

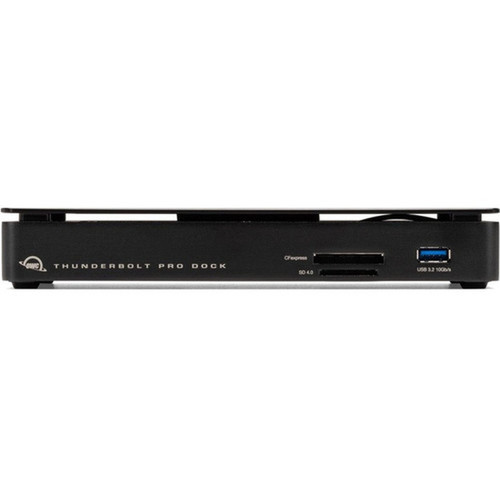

OWC Thunderbolt Pro Dock - for Notebook, Monitor - Memory Card Reader - CompactFlash, SD - 180 W - Thunderbolt 3 - 3 Displays - 4K, 8K (OWCTB3DKPRO)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Thunderbolt Pro Dock
- 1 x 0.7M 28" x Thunderbolt Cable
- 1 x External Power Supply and Power Cable
- 1 x Quick Start Guide for OWC Thunderbolt Pro Dock
- 1 x User Guide for OWC Thunderbolt Pro Dock
- 1 x OWC Dock Ejector for Mac and Windows (software download)
- 1 x User Guide for OWC Dock Ejector
- 2 Year OWC Limited Warranty
Connectivity Technology: Wired
Number of Displays Supported: 3
Supported Resolutions: 3840 x 2160,5120 x 2880,7680 x 4320
Screen Mode Supported: 4K,5K,8K
Memory Card Reader: Yes
Memory Card Supported: CompactFlash,SD
Device Supported: Notebook,Monitor
Ethernet Technology: Gigabit Ethernet
Host Interface: Thunderbolt 3
Number of USB 3.2 Gen 2 Type-A Ports: 3
Number of USB Type-C Ports: 1
USB Type-C: Yes
USB Type-C Detail: 1 x USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPorts: 1
DisplayPort: Yes
DisplayPort Version: 1.4
Thunderbolt: Yes
Number of Thunderbolt 3 Ports: 2
Operating System Supported: Windows 10 (64-bit),Windows Server 2016,Windows 11,iPadOS,Mac OS X 12.x Monterey,Mac OS X 13.x Ventura,Mac OS X 14.x Sonoma
Maximum Power Supply Wattage: 180 W
Product Color: Black
Height: 1.38" (35 mm)
Width: 8.35" (212 mm)
Weight (Approximate): 1.41 lb (640 g)
Package Contents:
Kensington Security Slot: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
Limited Warranty: 2 Year
- Fast & diverse: transfer files in a blink, daisy chain up to five Thunderbolt devices, use USB-C accessories, and add an HDMI display with two Thunderbolt (USB-C) ports
- Full throttle bandwidth: share and stream up to 90% faster with a 10Gb/s Ethernet port
- AVB ready: perfect for use in pro audio and video applications where synchronization of data streams is critical
- Ingest content: easily handle multiple video and photo card uploads at up to 1630MB/s with CFexpress and SD card readers
- Full speed connectivity: use your devices and accessories at their max speed with one USB-C and three USB Type A 10Gb/s ports
- Add more viewspace: connect two 4K displays or up to a single 8K display via Displayport 1.4
- Powerful: keep your notebook mobile use ready with 85W charging power
- Silent and secure: fanless cooling mode and locking power connection for on-set use
- Thunderbolt certified: for Mac and Windows
- Innergize™ Enabled: custom OWC software for complete health, performance, and field upgrade management when using OWC Atlas Memory Cards with OWC Atlas Card Readers and card reader-equipped products
[custom-specifications]
| Specifications | |
| Manufacturer | Other World Computing |
| Manufacturer Part Number | OWCTB3DKPRO |
| Manufacturer Website Address | https://www.owc.com/ |
| Brand Name | OWC |
| Product Name | Thunderbolt Pro Dock |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Supported Resolutions | 3840 x 2160,5120 x 2880,7680 x 4320 |
| Screen Mode Supported | 4K,5K,8K |
| Memory Card Reader | Yes |
| Memory Card Supported | CompactFlash,SD |
| Device Supported | Notebook,Monitor |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Number of USB Type-C Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 1 |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Thunderbolt | Yes |
| Number of Thunderbolt 3 Ports | 2 |
| Software | |
| Operating System Supported | Windows 10 (64-bit),Windows Server 2016,Windows 11,iPadOS,Mac OS X 12.x Monterey,Mac OS X 13.x Ventura,Mac OS X 14.x Sonoma |
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Physical Characteristics | |
| Product Color | Black |
| Height | 1.38" (35 mm) |
| Width | 8.35" (212 mm) |
| Weight (Approximate) | 1.41 lb (640 g) |
| Miscellaneous | |
| Package Contents | |
| Kensington Security Slot | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
