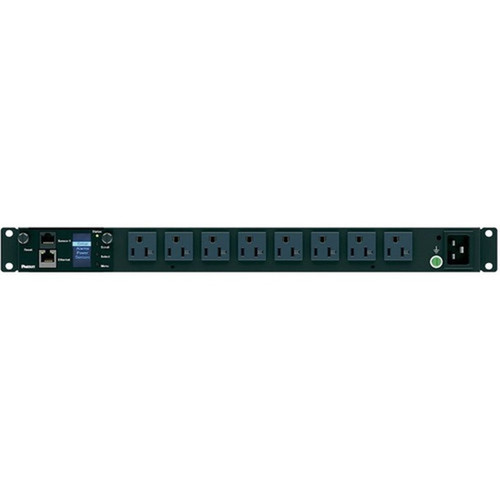

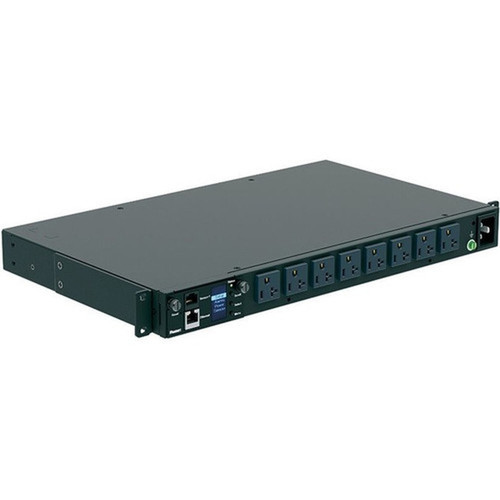

Panduit P08D09M Horizontal Intelligent Power Distribution Unit - Monitored - 1. 40 kVA - 8 x NEMA 5-20R - 120 V AC - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This monitored PDU operates on a single-phase electrical system with a NEMA 5-15P input plug and eight NEMA 5-20R receptacles, each rated for 120 V AC. The power rating of 1.40 kVA and 15 A input current ensure reliable performance for connected equipment, with an output voltage range that supports 120 V AC to 240 V AC for flexibility in various setups.
The unit's monitoring capabilities allow IT administrators to track real-time power metrics, aiding in load balancing and preventive maintenance. While remote outlet switching is not included, the focus remains on comprehensive power observation and reporting.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Panduit P08D09M PDU offers distinct advantages for businesses seeking enhanced power management and rack efficiency. Its monitored design provides actionable insights into power usage, helping to optimize energy consumption and prevent overloads in critical IT environments.
Intelligent Monitoring
Remotely monitor voltage, frequency, and load levels to maintain power stability and plan capacity upgrades.
- Real-time power metrics
- Load level tracking
- Voltage and frequency monitoring
Rack-Optimized Design
Horizontal 1U form factor fits seamlessly into standard server racks, maximizing space utilization.
- 1U rack height
- Horizontal mounting
- Compact footprint
Compliance and Reliability
Built with RoHS and REACH compliance, ensuring environmental responsibility and long-term durability.
- RoHS compliant
- REACH compliant
- 3-year warranty
Deployment / Use Cases
This PDU is ideal for data centers, server rooms, and network closets where reliable power distribution and monitoring are essential. It supports a variety of IT equipment, including servers, switches, and storage devices, providing centralized power with visibility into consumption patterns.
Use cases include high-density rack deployments where space is at a premium, environments requiring power usage reporting for compliance or efficiency audits, and setups needing stable 120 V AC power for North American equipment. The horizontal orientation suits standard rack layouts, facilitating neat cable management and airflow.
Data Center Power Management
Deploy in server racks to distribute power and monitor loads across multiple devices, enabling proactive capacity planning.
Network Infrastructure Support
Power networking equipment like switches and routers while tracking energy usage to optimize operational costs.
Physical Profile
The PDU features a compact design with dimensions of 1.71" (43.43 mm) in height, 17.46" (443.48 mm) in width, and 10.60" (269.24 mm) in depth, fitting neatly into a 1U rack space. Its horizontal mounting orientation and rack-mountable construction ensure easy installation in standard server racks, promoting organized power distribution and efficient use of vertical space.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.46" (443.48 mm), 10.60" (269.24 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.46" (443.48 mm)
- Depth
- 10.60" (269.24 mm)
- Height
- 1U
Highlights
- Monitored PDU with remote load, voltage, and frequency monitoring
- 1.40 kVA power capacity for reliable distribution
- 8 x NEMA 5-20R outlets supporting 120 V AC
- Horizontal 1U rack-mountable design for space efficiency
- Single-phase operation with NEMA 5-15P input plug
- Output voltage range of 120 V AC to 240 V AC
- RoHS and REACH environmental compliance
- 3-year limited warranty for peace of mind
- Made in the United States
- Ideal for data center and server room deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P08D09M |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MI |
| Product Model | P08D09M |
| Product Name | P08D09M Horizontal Intelligent Power Distribution Unit |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 1.40 kVA |
| Input Current | 15 A |
| Management | |
| Remote Outlet Switching | No |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.71" (43.43 mm) |
| Width | 17.46" (443.48 mm) |
| Depth | 10.60" (269.24 mm) |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the Panduit P08D09M PDU?
The Panduit P08D09M PDU has a power rating of 1.40 kVA, providing sufficient capacity to distribute power to multiple devices in a rack environment. This rating ensures reliable performance for connected IT equipment such as servers and networking gear.
How many outlets does this PDU have and what type are they?
This PDU features eight NEMA 5-20R outlets, each supporting 120 V AC. These outlets are compatible with standard North American plugs, making them suitable for a wide range of data center and office equipment.
Can I remotely control individual outlets on this PDU?
No, the Panduit P08D09M does not support remote outlet switching. It is a monitored PDU, meaning it allows remote monitoring of power metrics like voltage, frequency, and load levels, but individual outlet control is not available.
What rack space does this PDU require for installation?
This PDU requires 1U of rack space and is designed for horizontal mounting. Its dimensions are 1.71" in height, 17.46" in width, and 10.60" in depth, making it a compact fit for standard server racks.
What input voltage does the PDU support?
The PDU supports an input voltage of 120 V AC with a NEMA 5-15P plug. It delivers output at 120 V AC, with a range that extends to 240 V AC, offering flexibility for various power setups in North American environments.
What warranty comes with the Panduit P08D09M PDU?
The Panduit P08D09M PDU comes with a 3-year limited warranty, providing coverage for defects in materials and workmanship. This warranty supports long-term reliability in demanding data center applications.
What power capacity is listed for this UPS?
The listed power specification is 1.40 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes No, which helps buyers understand how many connected devices it can support in its intended deployment.
