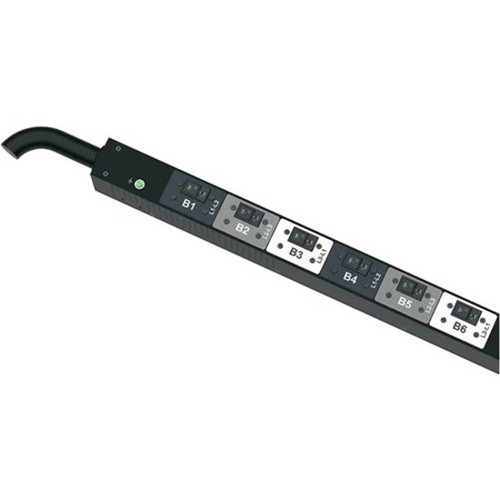

Panduit P24E31M-BL2C SmartZone G5 Intelligent 24-Outlet PDU - Monitored - 14. 4 kVA - 208V AC - 12 C13 & 12 C19 Outlets - Hubbell CS8365C
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This monitored PDU operates on a three-phase electrical system with 208V AC input and output, matching standard data center power configurations. The 14.4 kVA (14.4 kW) power rating and 50A input current support demanding server racks without voltage drop or performance issues.
Network connectivity via RJ-45 enables remote monitoring and management through Panduit's SmartZone platform. The vertical rack-mount design with a compact 2U footprint (2.05" width x 2.10" depth x 68.90" length) maximizes space efficiency in standard 19" server racks.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU enhances data center operational efficiency through intelligent power monitoring and robust construction. Administrators gain actionable insights into power usage, helping to balance loads, plan capacity expansions, and maintain uptime.
Intelligent Monitoring
Real-time power metrics and remote management via network connection enable proactive maintenance and energy optimization.
- Prevents overload warnings
- Supports capacity planning
- Enables remote monitoring
High-Density Outlet Design
24 outlets (12 C13 + 12 C19) support mixed IT equipment in a single PDU, reducing cable clutter and simplifying power distribution.
- Accommodates servers and networking gear
- Reduces need for multiple PDUs
- Standard IEC connectors
Rack-Optimized Form Factor
Vertical mounting in a 2U space maximizes rack real estate while providing full-length power distribution to all equipment.
- Fits standard 19" racks
- Compact depth profile
- Vertical airflow alignment
Deployment / Use Cases
This PDU is designed for deployment in data centers, server rooms, and network closets where reliable, monitored power distribution is critical. Its 208V AC three-phase configuration matches common commercial and enterprise power infrastructure.
Ideal for high-density server racks, storage arrays, and networking equipment, the outlet mix supports both 1U/2U servers (C13) and larger UPS or power supplies (C19). The monitoring capabilities make it suitable for environments requiring power usage reporting, capacity management, or compliance with energy efficiency standards.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Enterprise Data Centers
Deploy in server racks supporting virtualization hosts, database servers, and storage systems where power monitoring prevents downtime.
Network Operations Centers
Power networking switches, routers, and security appliances with the ability to monitor consumption and receive overload alerts.
Physical Profile
The PDU features a vertical rack-mount design with dimensions of 2.05" width, 2.10" depth, and 68.90" length, occupying 2U of rack space. This slim profile preserves valuable rack depth for servers and other equipment while providing full-length power distribution.
Constructed with RoHS-compliant materials, it meets environmental standards for hazardous substance restriction. The vertical orientation aligns with standard rack airflow patterns and facilitates clean cable management along the rack's vertical channels.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Length
- 68.90" (1750.01 mm)
Highlights
- 24-outlet PDU with 12 C13 and 12 C19 receptacles for mixed IT equipment
- 14.4 kVA (14.4 kW) power capacity at 208V AC three-phase
- Intelligent monitoring with network (RJ-45) connectivity for remote management
- Vertical rack-mount design in 2U footprint (2.05"W x 2.10"D x 68.90"L)
- Hubbell CS8365C plug connector for secure power input
- Three-phase electrical configuration matching data center power standards
- RoHS-compliant construction with environmentally friendly materials
- 3-year limited warranty for reliable long-term operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24E31M-BL2C |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MS |
| Product Name | SmartZone G5 Intelligent 24-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | Hubbell CS8365C |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13,12 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 14.40 VA |
| Power Rating (Watt) | 14.40 kW |
| Input Current | 50 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this PDU?
This Panduit SmartZone G5 PDU has a power rating of 14.40 VA (14.40 kW) at 208V AC three-phase. This capacity supports high-density server racks with multiple devices drawing power simultaneously without performance degradation.
How many outlets does this PDU have and what types?
The PDU features 24 total outlets: 12 IEC 60320 C13 receptacles and 12 IEC 60320 C19 receptacles. This mix accommodates both standard server power supplies (C13) and larger equipment like UPS units or high-power servers (C19).
What does 'monitored' mean for this PDU?
Monitored indicates the PDU includes network connectivity (RJ-45) for remote power monitoring. This allows administrators to track power consumption, receive overload alerts, and manage energy usage through Panduit's SmartZone platform without physical access to the rack.
What voltage does this PDU require and deliver?
The PDU operates at 208V AC for both input and output. It uses a three-phase electrical configuration, which is standard in commercial and data center environments for efficient power distribution to high-density equipment.
How is this PDU mounted in a rack?
This PDU is designed for vertical rack mounting, occupying 2U of space in a standard 19" rack. Its dimensions are 2.05" wide, 2.10" deep, and 68.90" long, providing full-length power distribution while minimizing depth usage.
What type of plug connector does this PDU use?
The PDU uses a Hubbell CS8365C plug connector for power input. This industrial-grade connector ensures secure, reliable connection to the power source, suitable for data center and server room environments.
What power capacity is listed for this UPS?
The listed power specification is 14.40 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
